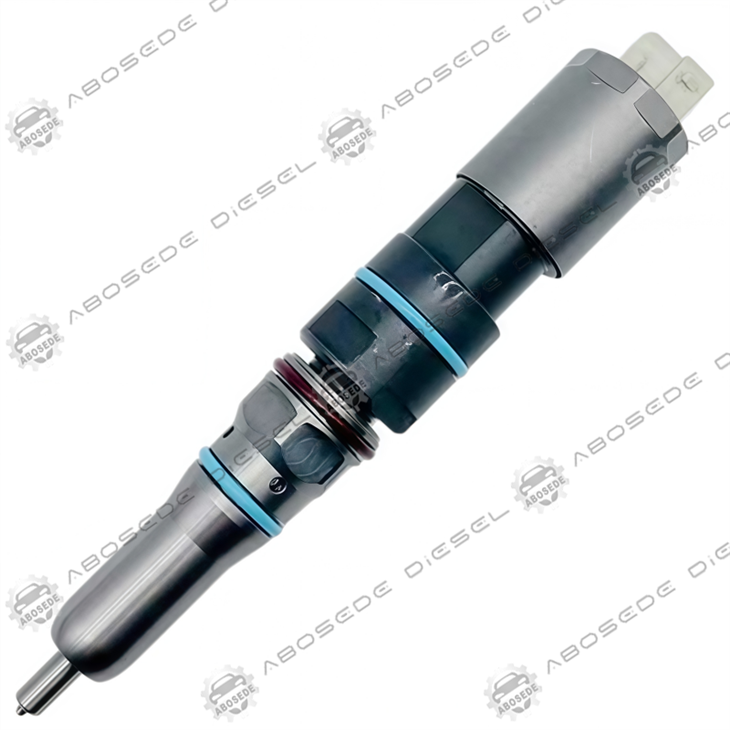

20R-5036 CAT Reman Common Rail Injector – Precision‑Reconstructed Flow Matching for C13/C15/C18 Acert Engines | Direct Core‑Exchange Replacement
1. Product: 20R-5036
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
When an injector completes its first service life, the housing remains geometrically sound, but the plunger‑barrel clearance has widened, the control valve seat has worn, and the solenoid armature has lost some of its magnetic crispness. The 20R‑5036 is not a rebuilt injector that merely replaces seals and polishes nozzles-it is a reconstructed unit where every critical interface is restored to original equipment tolerances through selective pairing of new components with the reclaimed housing. This process goes beyond simple replacement: the plunger and barrel are re‑honed and paired as a matched set based on their measured clearance (target: 3‑5 µm), and the control valve is lapped against a new seat to achieve zero leakage at 1,800 bar. The result is an injector that delivers flow linearity and opening response indistinguishable from a brand‑new unit-but at a significantly lower cost and with a reduced environmental footprint. For fleets operating C13, C15, or C18 Acert engines, the 20R‑5036 offers a pragmatic path to maintaining peak performance without the premium price of virgin components.
📊 Technical Data – Reconstructed Performance Parameters
| Parameter | Specification |
|---|---|
| Part Number | 20R‑5036 (Caterpillar Reman) |
| Technology | Solenoid‑actuated common‑rail, reconstructed |
| Maximum Rail Pressure | 2,000 bar (29,000 psi) |
| Nozzle Type | VCO (Valve Covered Orifice) – 8 × ø0.18 mm orifices |
| Spray Cone Angle | 150° (±1.5°) – per original Acert geometry |
| Needle Lift | 0.30 mm (restored to nominal) |
| Solenoid Resistance (pull‑in) | 0.85 – 1.0 Ω @ 20°C (new coil fitted) |
| Hold Current | 5.0 – 6.0 A (PWM controlled) |
| Dynamic Flow Rate | 580 – 620 cc/min @ 100 bar (batch‑matched) |
| Reconstructed Clearance (plunger‑barrel) | 3‑5 µm (selectively paired) |
| Internal Leakage (after reman) | ≤ 5.5 cc/min at idle |
| Connector | 2‑pin Deutsch, gold‑plated terminals |
⚙️ The Reconstruction Process – Where Consistency Is Re‑Created
The 20R‑5036 is built through a core‑exchange remanufacturing stream, but its final performance depends on three proprietary steps that go beyond standard rebuilds:
1. Selective plunger‑barrel pairing – After cleaning, each barrel bore is measured with an air‑gauge to 0.1 µm resolution. Plungers are then selected from a range of diameters (in 1‑µm increments) to achieve a clearance of 3‑5 µm-the same tolerance window as a new injector. This pairing ensures consistent internal leakage across all cylinders, preventing the ECU from chasing uneven fuel trims.
2. Control valve seat re‑lapping – A diamond‑paste lapping process restores the seat to a surface finish of Ra 0.1 µm, eliminating the micro‑galling that occurs over thousands of hours. The valve is then tested for hydraulic sealing at 1,800 bar; any unit that fails the leak‑down test is re‑lapped or fitted with a new valve.
3. Dynamic flow mapping with batch grouping – Each completed injector is flow‑tested across 14 pulse widths (0.3 ms to 2.8 ms). Injectors that fall within a ±1.5% flow band are grouped together and shipped as a set when ordered in multiples. This batch‑matching ensures that when you replace all six injectors, they are as closely aligned as a new factory set-eliminating the cylinder‑to‑cylinder variation that often plagues mixed rebuilds.
The remanufacturing also includes a brand‑new solenoid coil with upgraded insulation, a new needle guide, and a fresh VCO nozzle. The only reused component is the forged body, which undergoes magnetic particle inspection to verify its structural integrity.
