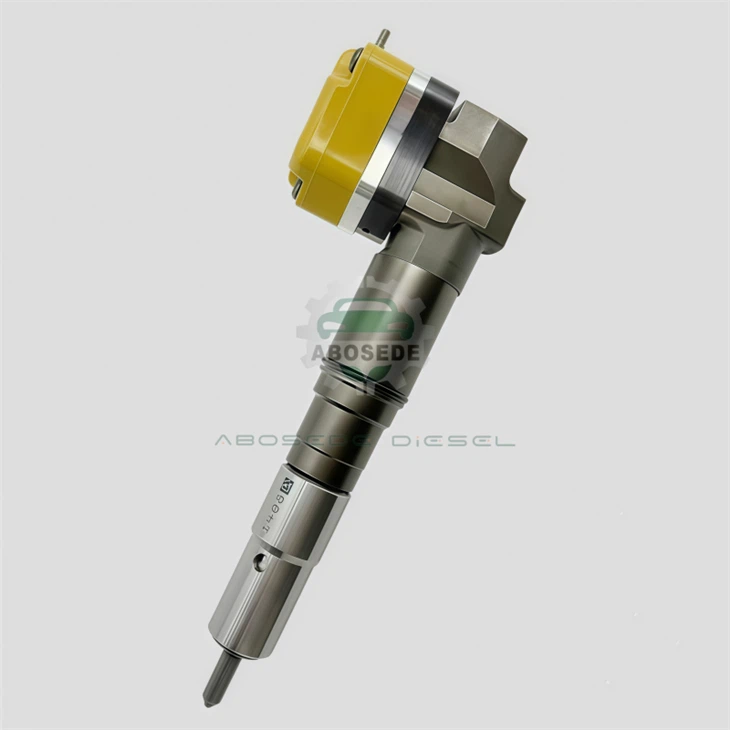

CAT 174-7526 HEUI Injector: Legacy Calibration Strategy for 3412E and 3408B in a Common-Rail Era
1. Product: 174-7526
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
When common-rail systems dominate modern diesel discussions, the CAT 174-7526 remains a service-critical component for legacy high-bore platforms. Its role is not to chase ultra-fast response; it is to deliver a controlled pressure rise that matches older cylinder-head structures and mechanically governed oil supply systems. For fleet owners, the real challenge is calibrating maintenance and replacement decisions around an injector whose behavior differs fundamentally from today's accumulator-based common-rail injectors.
🧭 Application Boundaries: Where 174-7526 Fits
The 174-7526 is an original-equipment fitment for CAT 3412E (pre-1998) and 3408B industrial engines, with crossover to certain 3508 auxiliary power units used in oilfield pump drives. It also appears in marine stern-drive applications, crane and dragline powerplants, and emergency generator sets where low-end torque below 1,000 rpm matters more than peak horsepower.
Unlike common-rail injectors that maintain a high-pressure fuel rail across wide speed ranges, the 174-7526 relies on actuation oil pressure from a mechanically governed pump. This makes fuel delivery more sensitive to oil viscosity, aeration, and pump condition. The injector's nozzle uses an 8-hole design with 0.30 mm diameter orifices and a 150° spray angle, optimized for deeper piston bowls of early combustion chamber designs. Its Sauter Mean Diameter is approximately 25 µm, coarser than later HEUI variants but adequate for the 2,100 rpm maximum ceiling of these engines.
🧪 Wear Strategy and Rebuild Decisions
The 174-7526 uses a chrome-plated intensifier piston with 52–55 HRC hardness-softer than later successors. This is intentional: the piston acts as a sacrificial wear element, preserving the more expensive barrel bore. In practice, delivery declines gradually by about 2% per 2,000 hours, rather than failing catastrophically. The nozzle needle is made from AISI 440C stainless steel, offering adequate corrosion resistance for inland diesel applications but requiring extra attention in saltwater marine environments.
A critical service detail is the copper gasket: 0.8 mm thick, versus 0.6 mm on the 174-7527. Substituting the thinner gasket alters injector protrusion into the combustion chamber and can cause piston interference. For rebuild decisions, this injector rewards hour-based planning over reactive replacement-especially in constant-speed generator sets and crane powerplants.
🧰 Installation, Interchange, and Diagnostics
The 174-7526 is the direct replacement for superseded part numbers 174-7524 and 174-7525. Before installation, verify actuation oil pressure within 380–2,100 psi, check for oil aeration, and confirm the high-pressure oil pump is not bypassing. Because HEUI injectors amplify oil pressure to create fuel pressure, common-rail diagnostic logic does not apply directly: there is no rail pressure sensor feedback loop in the same way.
Leak-off testing is a practical health indicator. A new injector should return ≤ 28 ml/min at idle. Higher values suggest internal wear or nozzle needle seating issues. Also inspect the injector inlet screen if equipped; contamination down to 125 µm can restrict flow and cause low-power complaints without setting a clear code.
