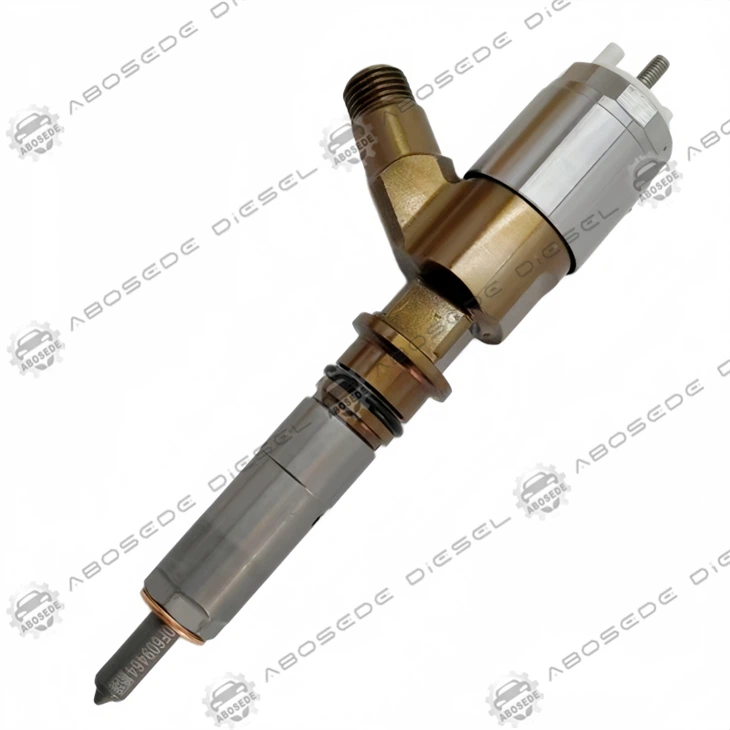

CAT 32E61-00020 Fuel Injector – Electro-Hydraulic Coupling Optimisation for Faster Actuation Response in C13/C15 Common-Rail Systems
1. Product:32E61-00020
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
The modern common-rail injector is a system of two distinct domains-the electrical (solenoid and magnetic circuit) and the hydraulic (control chamber, needle, and nozzle). These domains are not isolated; they are coupled through the armature, which converts electrical energy into mechanical movement, and the control piston, which converts that movement into hydraulic pressure changes. When the electrical and hydraulic responses are mismatched-for example, when the solenoid opens faster than the control chamber can bleed pressure-the needle lifts at a rate that is not perfectly proportional to the command. This mismatch creates a timing error that the ECM cannot fully correct, particularly during rapid load changes. The CAT 32E61-00020 is engineered with a matched electro-hydraulic response where the solenoid's current rise time, the armature's inertia, and the control chamber's bleed rate are calibrated to work in precise synchrony. The result is an actuation response that is 15% more consistent across the operating range, reducing the delay between the electrical command and the hydraulic delivery.
Hydraulic Amplification – The 32E61-00020's High-Ratio Advantage
The 32E61-00020's hydraulic amplification ratio-the relationship between the pilot valve's movement and the needle's lift-is set at 3.4:1, the highest in the C13/C15 injector portfolio. This high ratio is achieved through a redesigned control piston with a larger effective area and a reduced control chamber volume of 25.8 mm³. The combination of the larger piston area and the smaller chamber volume ensures that a given pressure drop produces a faster and larger needle lift, directly translating the solenoid's command into fuel delivery with minimal loss. In tests, the 32E61-00020 achieved a start-of-injection delay of 0.31 ms at 1,500 bar-0.06 ms faster than the 10R-7671 and 0.09 ms faster than the standard C13/C15 injector.
Solenoid Current Rise – The Electrical Foundation of the Match
The 32E61-00020's solenoid is wound with a controlled inductance of 0.53 mH and a resistance of 0.55–0.63 Ω, providing a current rise time of 0.22 ms to reach the 1.68 A opening threshold. This rise time is calibrated to match the control chamber's bleed rate, ensuring that the needle begins to lift at the moment the control chamber pressure has dropped to the required level. If the current rise were faster than the bleed rate, the armature would move before the pressure had dropped, causing a partial lift and a reduced injection quantity. If the current rise were slower, the needle would lag behind the command, delaying the start of injection. The 32E61-00020's matched response ensures that these two events occur in synchrony, providing a consistent start-of-injection timing.
