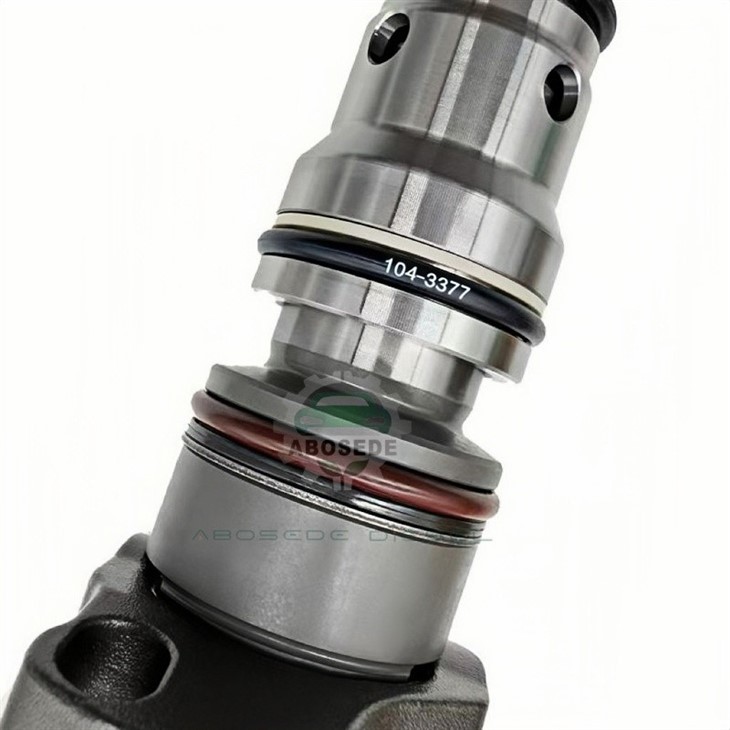

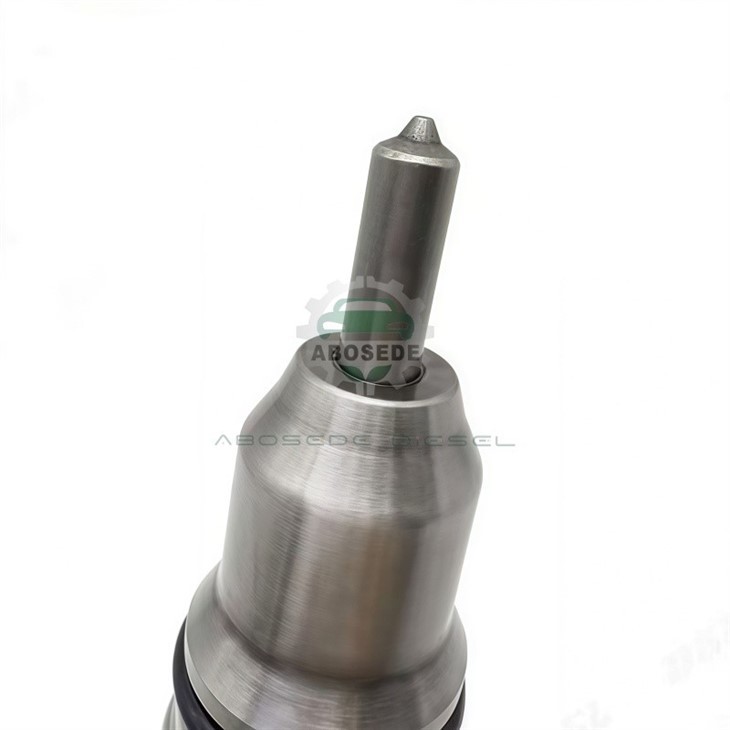

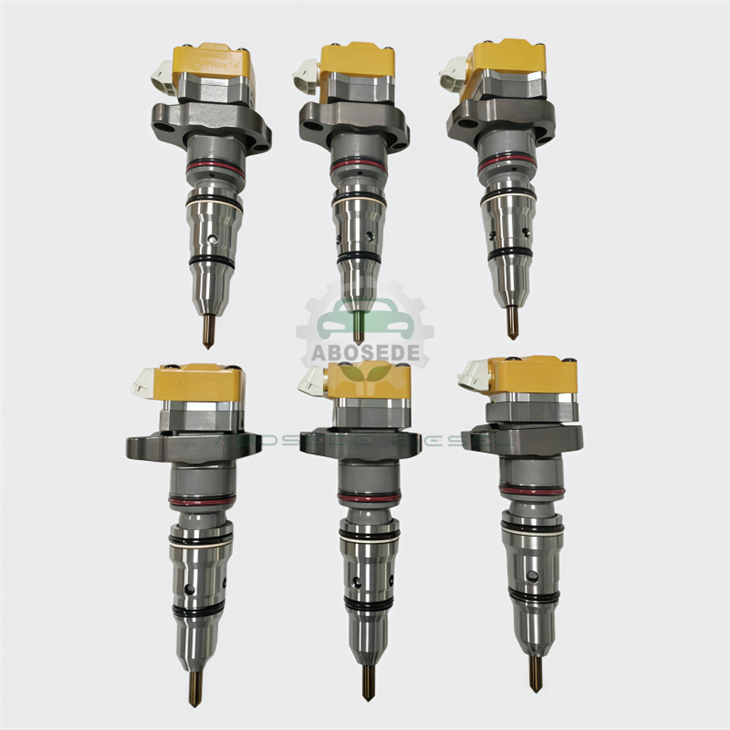

104-3377 CAT Mechanical Fuel Injector – Direct‑Acting Plunger Precision for 3208 Mid‑Range Diesel Engines | OEM Direct Replacement
1. Product:104-3377
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
In the era before electronic common‑rail and HEUI, Caterpillar's 3208 engine earned its reputation for reliability through a simpler mechanical architecture-fuel was delivered by direct‑acting unit injectors, where a camshaft‑driven plunger compressed fuel and forced it through the nozzle in a single, precisely timed action. The 104‑3377 injector is a direct descendant of that mechanical heritage, designed for the naturally aspirated and turbocharged versions of the 3208 V8 engine. Its operation is elegantly simple: a plunger, actuated by a rocker arm, compresses fuel to approximately 280 bar (4,000 psi) before the nozzle needle lifts, delivering a spray that is shaped entirely by the geometry of the plunger and the orifice plate. There are no solenoids, no electronic controls, no trim codes-just a finely machined plunger‑barrel pair and a precision‑ground needle, each set individually calibrated on a test bench. For operators of medium‑duty trucks, buses, and industrial equipment still relying on the 3208, this injector offers a return to factory‑fresh performance without the complexity of modern electronics.
📊 Technical Data – Mechanical Precision Parameters
| Parameter | Specification |
|---|---|
| Part Number | 104‑3377 (Caterpillar) |
| Technology | Direct‑acting unit injector (mechanical plunger) |
| Peak Injection Pressure | 280 bar (4,000 psi) – nominal |
| Plunger Diameter | 9.5 mm (±0.002 mm) |
| Plunger Stroke | 8.0 mm (nominal, camshaft‑limited) |
| Nozzle Type | Multi‑hole (5 × ø0.28 mm) – depending on variant |
| Spray Cone Angle | 120° (±2°) – fixed geometry |
| Needle Lift | 0.35 mm (mechanical stop) |
| Injector Body Type | Flange‑mount (2‑bolt) |
| Static Flow Rate | 180 – 210 mm³/stroke @ 1,200 RPM (bench test) |
| Nozzle Opening Pressure | 220 ± 10 bar (factory set) |
| Internal Leakage | ≤ 0.2 cc/min (plunger‑barrel clearance) |
| Connector | Mechanical high‑pressure line (JIC thread) |
⚙️ How the Mechanical Injector Works – The Precision of the Plunger
The 104‑3377 operates on a principle that is as straightforward as it is effective. The injector is actuated by the engine's camshaft via a rocker arm. As the cam rotates, it pushes the rocker arm, which depresses the injector plunger. Fuel enters the injector through a low‑pressure gallery and is then compressed in the plunger‑barrel chamber. When the pressure exceeds the nozzle opening pressure (220 bar), the needle lifts from its seat, and fuel is injected into the combustion chamber.
The critical clearance : The gap between the plunger and the barrel-typically 2‑4 micrometres-is the heart of the injector's precision. This clearance must be tight enough to minimise leakage but loose enough to allow the plunger to move freely without sticking. The 104‑3377 is manufactured with a matched plunger‑barrel set-each plunger is individually measured and paired with a barrel to achieve the optimal clearance. This matched pairing ensures consistent injection quantity from cylinder to cylinder.
The spill port timing : The injector's delivery is controlled by a spill port that opens at a specific point in the plunger stroke, ending the injection. The timing of this spill event determines the fuel quantity and injection duration. While the 3208 engine's fuel quantity is primarily controlled by the governor and fuel rack, the injector's spill timing is fixed-meaning that the injector must be precisely calibrated on a test bench to ensure all six or eight cylinders deliver the same fuel quantity.
