250-1302 Fuel Injector For CAT C3500 | High-Flow Round Nozzle Assembly | Precision Engineered For HEUI & Common Rail Performance
1. Product: 250-1302
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
In the realm of heavy-duty power generation and marine propulsion, the Caterpillar C3500 engine is a titan of reliability. However, even the most robust engine block is only as effective as its ability to manage the combustion event. The 250-1302 Fuel Injector serves as the critical interface between your fuel management system and the combustion chamber.
This is not merely a replacement part; it is a precision-machined hydraulic component designed to restore the engine's original thermal efficiency. For fleet managers and plant operators, the 250-1302 represents a strategic investment in uptime. By delivering fuel with exact timing and atomization, this injector minimizes unburnt hydrocarbons, reduces soot loading in the oil, and ensures that the C3500 operates within its designed emission parameters.
🔍 Engineering the Combustion Event: The "Round Nozzle" Advantage
Why is the 250-1302 specified for high-performance applications? The answer lies in the fluid dynamics of its "Round Nozzle" design. In the context of the C3500, the injector is responsible for transforming liquid diesel into a combustible gas cloud.
💧 Precision Atomization & Spray Geometry
The "Round Nozzle" designation refers to the specific discharge geometry of the injector tip. Unlike flat-fan or solid-stream nozzles used in other industrial applications, the 250-1302 creates a precise conical spray pattern.
The Benefit: This cone angle is engineered to match the "squish" and turbulence of the C3500 combustion chamber. It ensures that fuel droplets are suspended in the air charge rather than impinging on the cylinder liner (wall wetting). This prevents oil dilution and maximizes the energy extracted from every drop of fuel.
⚡ Hydraulic Response & Injection Velocity
In a Common Rail or HEUI system, pressure is constant, but timing is everything. The 250-1302 features a low-inertia needle valve assembly.
Rapid Opening: The injector reacts instantly to the electronic signal from the ECM, delivering the fuel charge exactly at Top Dead Center (TDC) for peak torque.
Snap-Closing: The valve shuts cleanly to prevent "dribble" (post-injection). This is crucial for preventing carbon buildup on the piston crown and exhaust valves, a common failure mode in older or poorly calibrated injectors.
🛡️ Durability in High-Heat Environments
The C3500 is often tasked with continuous heavy-load operation. The 250-1302 is constructed from high-grade, heat-treated steel alloys that resist thermal deformation. This ensures that the microscopic clearances between the plunger and barrel remain constant, maintaining injection pressure even when the engine block reaches operating temperatures exceeding 90°C.
🛠️ Installation & Maintenance Best Practices
Proper installation is the key to longevity. The 250-1302 operates under extreme pressures (often exceeding 20,000 psi internally).
Cleanliness is Paramount: The internal tolerances of this injector are measured in microns. Ensure the fuel rail and injector bore are spotless before installation. Even a single grain of sand can cause catastrophic failure.
Sealing Integrity: Always replace the copper fire washer and O-ring seals. Reusing old seals is the primary cause of "blow-by," where combustion gases escape into the rocker arm housing, sooting up the engine oil.
Torque Specifications: Adhere strictly to the Caterpillar torque sequence for the injector hold-down clamps. Over-torquing can distort the injector body, causing the needle valve to stick.
❓ Frequently Asked Questions (FAQ)
Is the 250-1302 compatible with Bio-diesel blends?
Yes, the internal components of the 250-1302 are compatible with standard diesel and bio-diesel blends (up to B20). However, bio-diesel acts as a solvent and can loosen deposits in fuel tanks. We recommend more frequent fuel filter changes during the initial transition to bio-fuels to prevent clogging.
What is the difference between "Round Nozzle" and "Multi-Hole" injectors?
While "Multi-Hole" nozzles are common in modern automotive diesels for specific emission controls, the C3500 "Round Nozzle" (or pencil-type) is designed for the specific turbulence of this large-bore engine. It creates a single, highly atomized cone of fuel that penetrates the combustion chamber effectively without requiring complex multi-stream calibration.
How do I know if my 250-1302 injectors are failing?
Common symptoms include:
White or Blue Smoke: Indicates unburnt fuel due to poor atomization.
Hard Starting: Suggests the injectors are leaking down rail pressure overnight.
High Fuel Consumption: A sign that the injection timing is retarded or the spray pattern is too wide.
Do these injectors require coding or trimming?
The 250-1302 is typically a direct mechanical replacement. However, depending on your specific C3500 serial number and ECM version, you may need to perform an "Injector Trim" calibration via the diagnostic software (Cat ET) to ensure the ECM compensates for minor flow variations.
Can I replace just one injector, or do I need a full set?
While you can replace a single unit, we recommend replacing injectors in pairs or full sets for high-hour engines. If one injector has worn out due to mileage, the others are likely at a similar stage of wear. Mixing a new injector with old, worn ones can lead to cylinder imbalance and engine vibration.
Basic Information about the Company
Flexible Payment Methods for Your Convenience
To make your purchasing experience smooth and easy, we offer a variety of secure payment options:
Bank Transfer
Pay directly in 15 supported currencies.
Western Union
Quick and global money transfers.
PayPal
Safe and convenient online payment.
Alibaba
Enjoy extra protection with trusted Alibaba transactions.
We're here to make your order process worry-free - choose the payment method that works best for you!
Shipping Made Simple
Customer reviews
Hot Tags: 250-1302 fuel injector for cat c3500 | high-flow round nozzle assembly | precision engineered for heui & common rail performance, China 250-1302 fuel injector for cat c3500 | high-flow round nozzle assembly | precision engineered for heui & common rail performance manufacturers, suppliers, factory, 10R-3263, 10R-9236, 320-2512, 374-0705, 557-7633, C6 4 C6 6 engines
You Might Also Like
-
Optimizing Combustion Efficiency: CAT C3500 Round Ti...
-
Stop The Rattle, Restore The Power: The C15E 359-403...
-
CAT C12 194-5083 Injector — Rebuilding Combustion Ge...
-

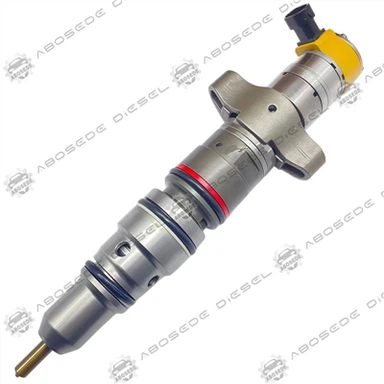

20R-8065 Injector: Precision Fuel Delivery Reimagine...
-
