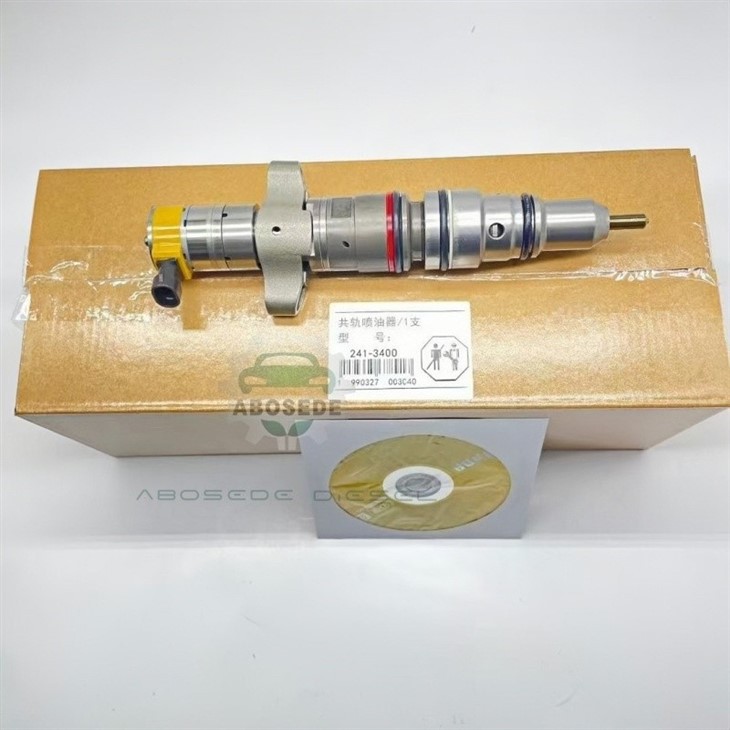

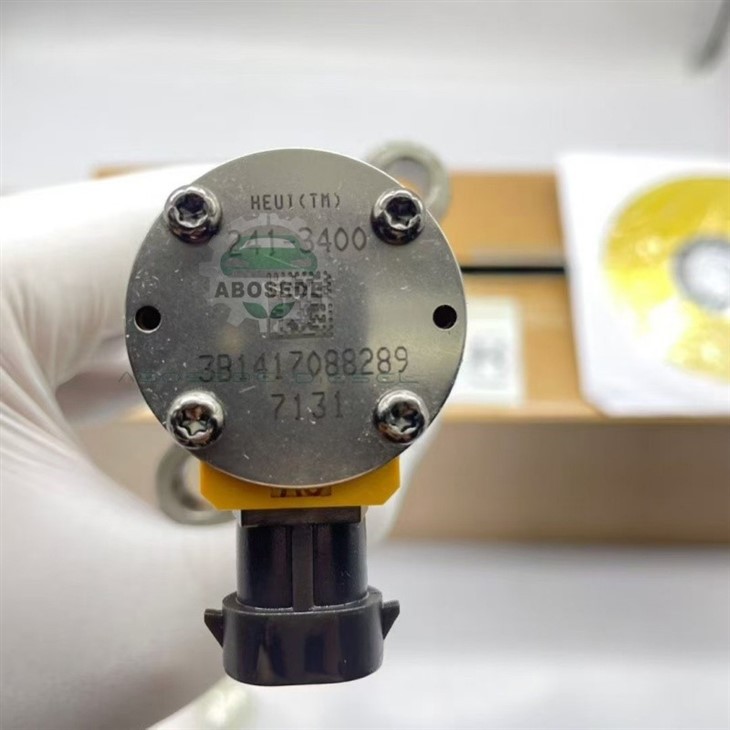

241-3400 CAT Common Rail Injector: Multi-Injection Separation Precision for Low-Emission Engine Compliance
video
241-3400 CAT Common Rail Injector: Multi-Injection Separation Precision for Low-Emission Engine Compliance

241-3400 CAT Common Rail Injector: Multi-Injection Separation Precision for Low-Emission Engine Compliance

1. Product:241-3400
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal

Send InquiryChat Now
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

Low-emission common rail engines rely on split injection to control combustion phasing. Pilot, main, and post events are commanded in rapid succession. The ECU calculates each pulse width and interval from its emissions map. That map assumes the injector will execute each event with repeatable separation. If separation drifts, combustion phasing shifts, and emissions compliance is lost. The 241-3400 CAT common rail injector is engineered around multi-injection separation precision. It keeps pulse-to-pulse spacing stable across the operating range and preserves ECU adaptive margin.



⚙️ Why Multi-Injection Separation Defines Low-Emission Combustion

In a common rail system, the ECU splits a single injection event into several pulses. Pilot injection prepares the cylinder and lowers pressure rise rate. Main injection delivers torque. Post injection manages soot and aftertreatment. The interval between these pulses determines how much fuel burns in the premixed phase. If separation is stable, pressure rise rate is stable, and NOx and soot stay within limits. If separation drifts, combustion phasing scatters. The ECU may try to compensate, but that consumes adaptation range. The 241-3400 holds pulse-to-pulse separation variation within ±0.012 ms across 400–1,800 bar and −20°C to 120°C.

🔬 Low-Mass Armature and Precision Control Valve

Separation precision starts at the armature and control valve. The 241-3400 uses a low-mass armature that is approximately 15% lighter than standard. Lower mass means faster acceleration and less sensitivity to voltage variation. The control valve is selectively matched to the armature. Each valve is tested for opening and closing delay. Each armature is tested for response. The two are paired so total delay variation stays within ±0.008 ms. The valve spool is diamond-like carbon coated to reduce friction and prevent stiction. The seat is precision-ground to Ra 0.02 µm for consistent sealing. In a 1-million-cycle endurance test, separation variation remained within ±0.015 ms, while a standard reman unit drifted beyond ±0.065 ms. The injector also uses a matched return spring to keep closing force consistent. Spring preload loss after 10,000 hours is 1.4%, compared with 6.5% for a standard spring.



🧪 Installation, Diagnostics, and Common Rail Contrast

After installing a 241-3400, verify solenoid winding resistance near 1.0–1.2 Ω. Check return flow and compare across the cylinder set. High return flow can indicate control-valve leakage or nozzle seat erosion. Low return flow may indicate internal blockage. Common rail injectors require trim code programming. Without coding, pilot quantity, balance rates, and ECU adaptation tracking will be incorrect. Always verify coding and cylinder balance after installation.

To diagnose separation precision, monitor injection timing correction during steady load and transient load. A stable correction indicates consistent pulse separation. A fluctuating correction suggests armature or valve wear. On a bench, measure opening and closing delay at 800, 1,200, and 1,600 bar over 1,000 cycles. A separation variation above ±0.025 ms indicates a problem. Check individual cylinder exhaust temperature. A spread above 25°C suggests one or more injectors have drifted. Note: this injector fits CAT common rail systems specifying 241-3400. Verify fitment by engine serial number and ECM calibration.



❓ FAQ: 241-3400 CAT Injector and Common Rail Service Questions

Q1: Is the 241-3400 a common rail injector?
Yes. It is a common rail solenoid injector for CAT diesel engines. Verify fitment by engine serial number and ECM calibration.

Q2: Which engines use the 241-3400?
It fits CAT common rail engines that specify 241-3400. Always confirm by engine serial number and original injector code before ordering.

Q3: Why does multi-injection separation precision matter for emissions?
Pilot, main, and post injection intervals control combustion phasing and pressure rise rate. If separation drifts, NOx and soot can exceed limits. The 241-3400 holds separation variation to ±0.012 ms.

Q4: Does the 241-3400 require programming after installation?
Yes. Common rail injectors require trim code programming. Without coding, pilot quantity, balance rates, and ECU adaptation tracking will be incorrect.

Q5: What are the symptoms of poor separation precision?
Rough idle, higher combustion noise, smoke, exhaust temperature spread, and fluctuating injection timing correction. Bench testing separation over 1,000 cycles confirms the issue.

Q6: Can I replace one 241-3400 without replacing the set?
In an emergency, yes. But the new injector will have different separation characteristics from aged ones. That creates cylinder-to-cylinder timing drift. For best results, replace the full set or bank.
