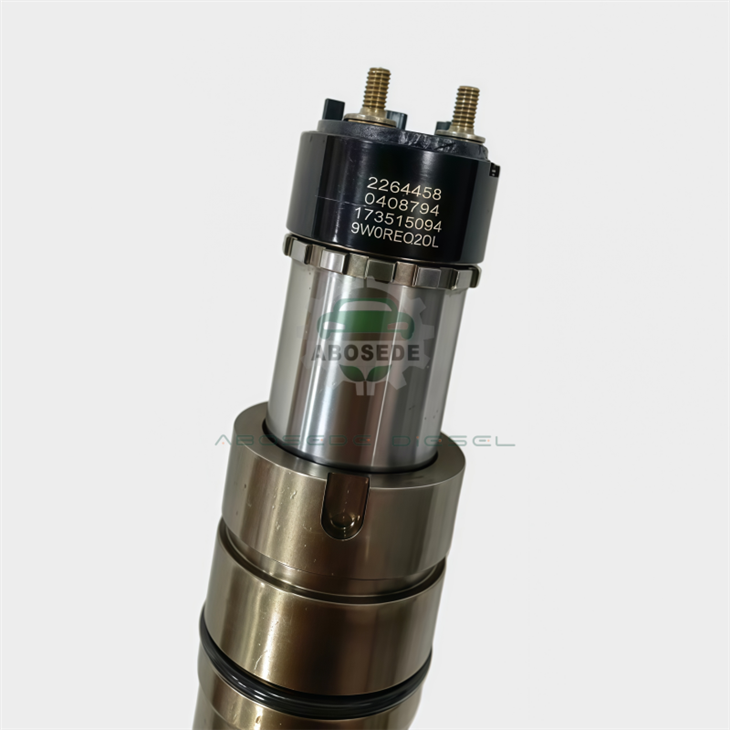

2264458 CAT C7/C9 Fuel Injector | High-Performance Common Rail Nozzle Assembly With Core Exchange

In the world of heavy-duty fleet management, an engine fault code is not just a warning light-it is a ticking clock on profitability. When a Caterpillar C7 or C9 engine enters derate mode due to injection pressure faults, the culprit is often the 2264458 fuel injector. This product page reframes the purchase not as a simple spare part transaction, but as a strategic investment in uptime assurance.

Unlike generic aftermarket options that may struggle with the specific pulse-width modulation (PWM) logic of CAT's ADEM IV or V ECUs, our 2264458 unit is engineered to match OEM flow characteristics exactly. We understand that modern Common Rail systems operate at pressures exceeding 1600 bar (23,000 psi). At these levels, even a micron of wear in the nozzle valve seat can lead to catastrophic hydraulic imbalance. This listing details a solution designed to restore factory combustion efficiency, ensuring your engine meets Tier 3/Stage IIIA emission standards without the premium price tag of a dealer-exclusive part.



🎯 Selection Logic: Navigating the Aftermarket Minefield



Choosing the right replacement for the 2264458 requires more than matching a part number. It requires understanding the internal architecture of the injector.

Solenoid Response Time: The 2264458 utilizes a high-speed solenoid valve to control the spill port. Our units are tested to ensure the "opening and closing lag" matches the OEM specification (typically within milliseconds). Slow response times result in late injection timing, causing power loss and increased exhaust gas temperatures (EGT).

Flow Rate Calibration: Injectors are not created equal. Cheap replacements often have inconsistent flow rates across cylinders, leading to engine roughness. We batch-test our 2264458 injectors to ensure they fall within the tight ISO-code flow bands required for smooth idling and balanced load sharing.

Core Integrity: For those opting for remanufactured exchange units, we only use "Grade A" cores. This means the injector body has not been welded or repaired, ensuring the structural integrity needed to withstand high-cycle fatigue.

💡 Tech Note: Always verify your engine serial number prefix. While the 2264458 fits many C7 and C9 applications, Caterpillar often updates injector trim codes. Our database cross-references your Serial Number (S/N) to ensure this injector is the correct calibration for your specific ECU strategy.





Precision specifications for the discerning technician.



Feature	Specification	Operational Context
Part Number	2264458 (R13100 / R13101 Cross-Ref)	Primary CAT Replacement Part
System Type	Common Rail (CRDI)	High-pressure accumulator system
Actuation	Solenoid Valve	Electronic control via PWM signal
Operating Pressure	Up to 1600 Bar (Rail Pressure)	Requires clean fuel (ISO 4406)
Fitment	Caterpillar C7 / C9 Engines	Common in Trucks, Ag, & Gen Sets
Warranty	12-Month Unlimited Mileage	Core exchange program available





To appreciate the complexity of this component, one must look beyond the steel casing.

The Hydraulic Servo System
The 2264458 does not just "spray" fuel; it manages hydraulic force. Inside, a delicate balance of pressure acts on the nozzle needle. When the ECU energizes the solenoid, it lifts a valve plate, venting the control chamber. This sudden pressure drop allows the rail pressure underneath the needle to lift it instantly, injecting fuel. Our rebuild process replaces the control valve assembly and calibration shims to restore this precise hydraulic timing.

The Multi-Hole Nozzle
At the tip, the nozzle features a specific hole pattern (typically 5 or 6 holes) designed to atomize the fuel into a fine mist. This maximizes the surface area for combustion. We use ultrasonic cleaning and flow testing to ensure no carbon deposits obstruct these microscopic orifices, guaranteeing a perfect cone pattern.

The O-Ring Interface
A common failure point is the copper washer or O-ring seal between the injector and the cylinder head. Leaks here can cause compression blow-by, coking up the injector bore. Our kits include high-temp, viton-style seals designed to withstand the intense heat of the combustion chamber.





Proper installation is just as important as the part itself. Follow these guidelines to ensure the longevity of your 2264458 injectors.

Cleanliness is Critical: The clearance inside the injector is less than 2 microns. Before installation, thoroughly clean the injector bore in the cylinder head. Any debris entering the rail can destroy the new injector instantly.

Torque Sequence: Use a calibrated torque wrench. Over-torquing the clamp can distort the injector body, causing the needle to stick. Under-torquing leads to compression leaks. Follow the manufacturer's Nm specification strictly.

Code Programming: On some newer ECU configurations, you may need to enter the "Injector Trim Code" (found on the injector label) into the diagnostic software so the ECU can compensate for minor manufacturing variances.

Fuel Quality: Water is the enemy of Common Rail. Ensure your primary fuel filter/water separator is functioning. If the fuel contains >200ppm water, consider adding a lubricity additive to protect the solenoid valve surfaces.



Q1: My engine is smoking white and running rough. Is it the 2264458?
White smoke usually indicates unburnt fuel. If one injector is stuck open or dripping (leaking after injection), it will flood that cylinder. Perform a "cylinder cutout test" with your diagnostic tool; if disabling a specific cylinder stops the smoke, that injector is likely faulty.

Q2: Can I drive with a bad injector?
Technically yes, but it is risky. A leaking injector can wash down the cylinder walls, removing oil and causing piston ring wear. It can also dilute the engine oil with diesel, lowering its viscosity and potentially damaging bearings.

Q3: What does "Remanufactured" mean for this part?
It means we take a used OEM core, disassemble it completely, replace all wear components (solenoid, nozzle, springs, seals), and test it on a Hartridge or EPS bench to meet OEM flow specifications. It performs like new but costs significantly less.

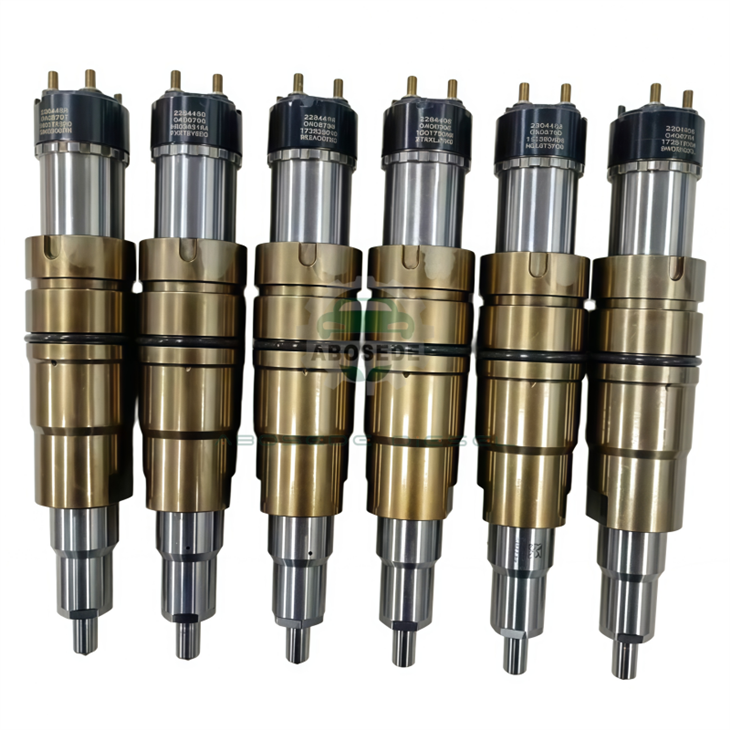

Q4: Do I need to replace all 6 injectors at once?
If the engine has high mileage (>300k miles), it is recommended to replace them as a set or in pairs per bank to ensure balanced performance. However, if budget is tight, replacing only the failed unit is acceptable provided the others pass a flow test.

Q5: How do I know if the problem is the injector or the wiring harness?
Use a multimeter to check the resistance of the injector solenoid (usually around 0.3 - 0.5 Ohms for low impedance). Also, inspect the wiring harness for chafing or corrosion, which is common in older C7/C9 trucks.

Q6: Does this injector come with the copper washer?
Yes, the 2264458 unit typically ships with the necessary sealing washers and O-rings required for installation.
