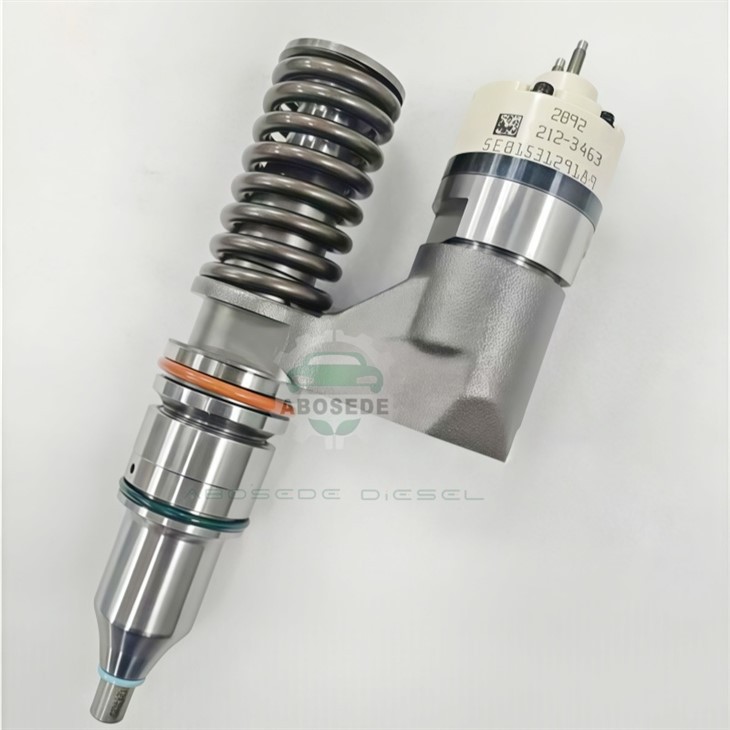

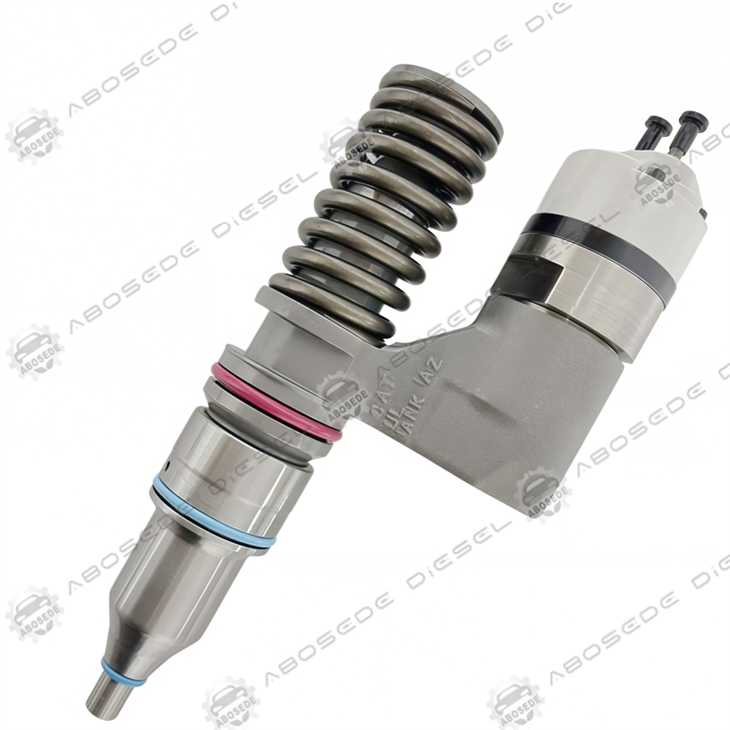

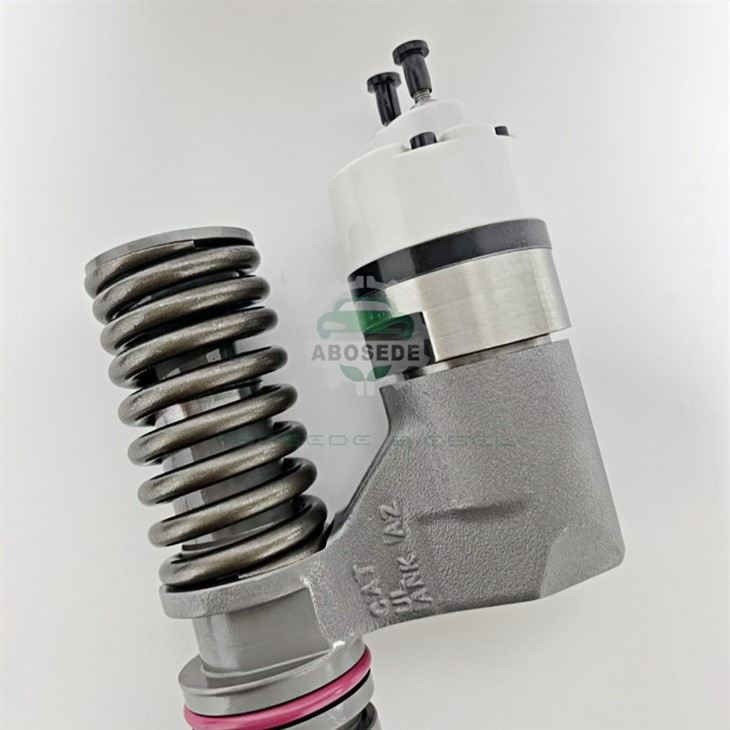

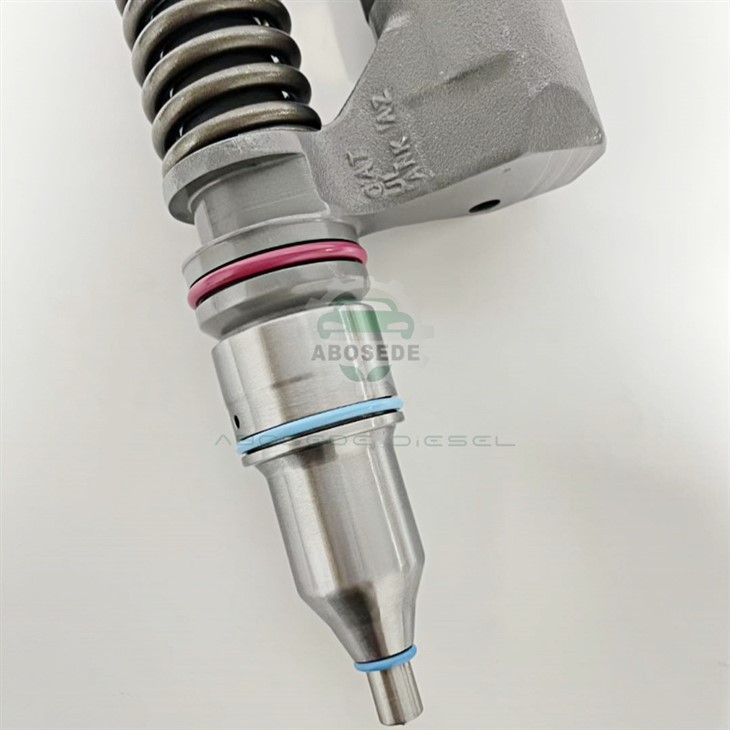

212-3463 Injector: A Small Component That Can Decide Whether A Machine Finishes The Shift

The 212-3463 is often discussed alongside common rail injectors, but the two systems work differently.

In a common rail setup, the fuel rail constantly stores fuel at very high pressure. The injector opens and closes electronically to release that pressure into the cylinder.

The 212-3463 uses a HEUI system instead:

Fuel enters the injector at lower pressure

High-pressure engine oil acts on an intensifier piston

Internal pressure rises inside the injector body

Electronic timing controls when injection occurs

This design allowed Caterpillar engines to achieve more accurate injection control before high-pressure common rail systems became mainstream. It also made the injector highly sensitive to oil quality and oil pressure stability.

Before complete injector failure occurs, the engine usually gives several warning signs.

Common symptoms include:

Rough idle

Slow throttle response

Hard starting in cold weather

White smoke after startup

Black smoke under acceleration

Increased fuel consumption

Power loss when climbing or carrying load

Engine vibration at idle

Fuel smell in engine oil

These warning signs are important because injector-related problems can eventually affect the turbocharger, piston crown, cylinder liner, and exhaust components.
