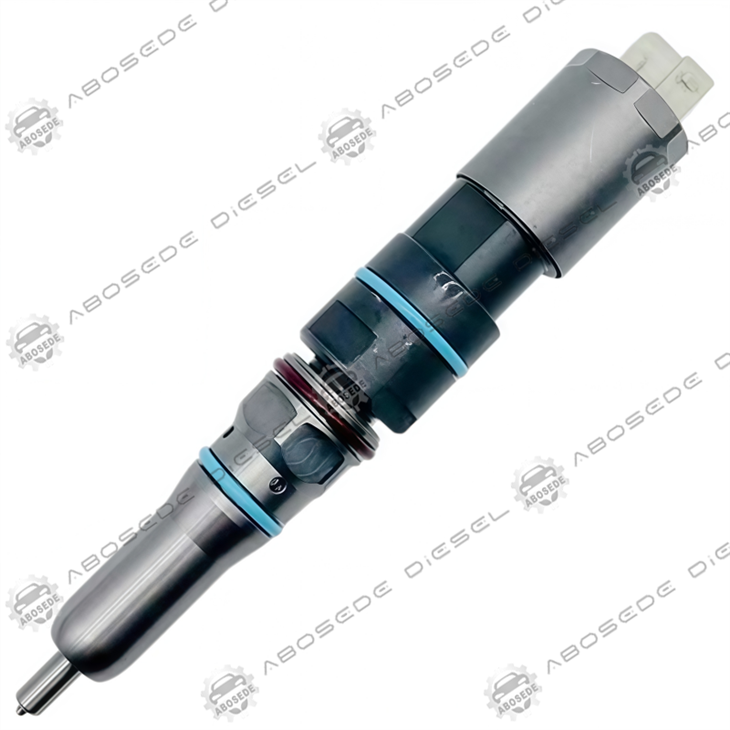

20R-5083 CAT Reman Common Rail Injector – Programmable Calibration Platform for C13/C15/C18 Acert Engines | Direct Core-Exchange Replacement
1. Product:20R-5083
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Traditional injector design assumes a fixed relationship between electrical pulse width and fuel mass-a relationship that, once set at the factory, is assumed to remain constant. But modern common-rail engines are rarely static; they are re-flashed with updated calibrations, adapted for different fuel qualities, and sometimes tuned for varied power demands across a fleet. The 20R‑5083 remanufactured injector breaks this fixed-relationship paradigm through a programmable calibration architecture that uses a high-resolution IQA code to define not only the static flow offset, but also the injector's dynamic response curve-how it behaves at different rail pressures, temperatures, and pulse widths. This means the same physical injector can be configured to serve a 475 hp C13, a 625 hp C15, or even a high-altitude C18 calibration, simply by programming the appropriate 10‑character code into the ECU. For fleet operators, this reduces the number of injector SKUs that need to be stocked, simplifies parts management, and ensures that future calibration updates do not require hardware changes-only software adjustments.
📊 Technical Data – Programmable Calibration Parameters
| Parameter | Specification |
|---|---|
| Part Number | 20R‑5083 (Caterpillar Reman) |
| Technology | Solenoid‑actuated common‑rail with programmable response curve |
| Maximum Rail Pressure | 2,000 bar (29,000 psi) |
| Nozzle Type | VCO (Valve Covered Orifice) – 8 × ø0.185 mm orifices |
| Spray Cone Angle | 150° (±1.5°) – universal Acert geometry |
| Needle Lift | 0.30 mm (nominal) |
| Solenoid Resistance (pull‑in) | 0.85 – 1.0 Ω @ 20°C (new coil) |
| Hold Current | 5.0 – 6.0 A (PWM controlled) |
| Dynamic Flow Range | 540 – 660 cc/min @ 100 bar (calibration‑dependent) |
| Programmable Code Length | 10 characters (extended resolution) |
| Calibration Curve Points | 8 flow‑vs‑pressure points stored in IQA |
| Opening Delay (after reman) | ≤ 150 µs (base, adjustable via code) |
| Internal Leakage (after reman) | ≤ 5.5 cc/min at idle |
| Connector | 2‑pin Deutsch, gold‑plated (new) |
⚙️ The Programmable Architecture – Beyond Static Offsets
The 20R‑5083's calibration flexibility comes from a multi‑point IQA encoding system that stores not just a single offset, but an entire flow curve:
Static offset – the base fuel mass at a reference pulse width (typically 1.0 ms at 1,200 bar).
Pressure slope – how flow changes with rail pressure (a linear correction factor).
Pulse‑width linearity – corrections at 0.5 ms, 1.5 ms, and 2.5 ms to account for non‑linearities at the extremes.
Temperature compensation – flow adjustment coefficients for cold and hot fuel.
Duty‑cycle derating – a factor that reduces flow at high duty cycles to prevent overheating.
This information is encoded into the 10‑character IQA code, which is entered into the ECU via CAT ET. Unlike older 3‑digit or 5‑digit codes that simply told the ECU "this injector is 2% high," the 20R‑5083's code tells the ECU "this injector is 1.2% high at 0.5 ms, 0.8% high at 1.0 ms, and 0.5% low at 2.5 ms, with a temperature slope of 0.05% per degree Celsius."
This level of detail allows the ECU to maintain cylinder‑to‑cylinder fuel balance with a precision of ±1.5% across the entire operating range, not just at idle. It also enables the same injector to be used in engines with different power ratings, because the ECU can interpret the flow curve relative to the engine's specific fuel demand map.
