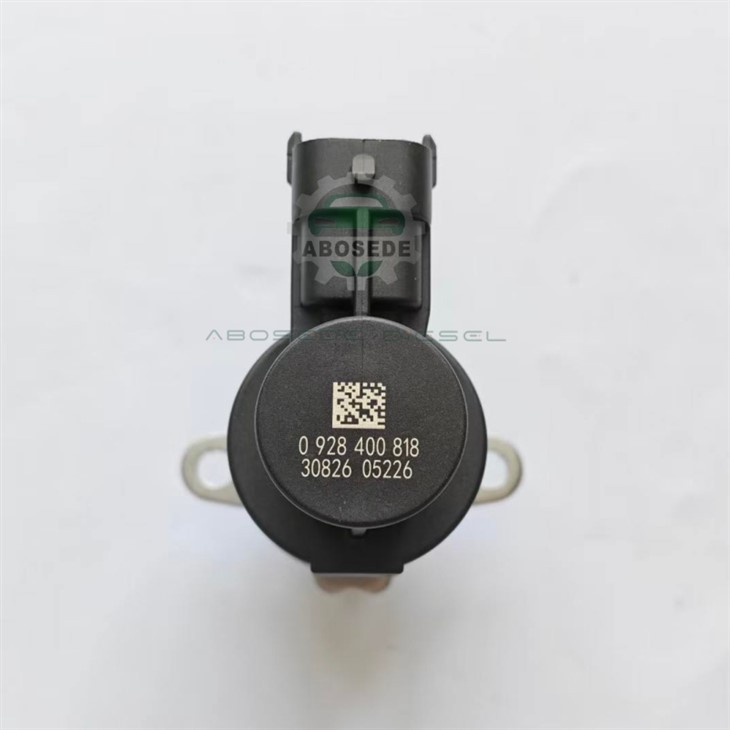

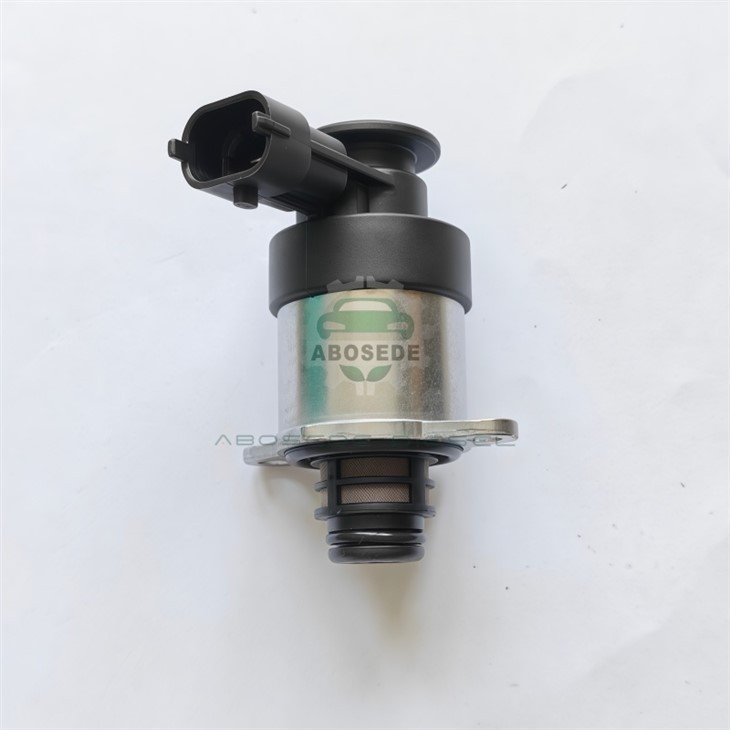

The Neural Network Of Diesel Power: 0928400818 Rail Pressure Sensor

In the high-stakes environment of modern diesel engineering, the Engine Control Unit (ECU) is only as intelligent as the data it receives. While injectors and pumps execute the physical work, sensors act as the nervous system, providing the critical feedback loop necessary for precision control. Enter the 0928400818 rail pressure sensor-a pivotal component in the Common Rail Diesel (CRD) architecture. For fleet maintenance managers and diesel specialists across Europe and North America, this sensor is not merely a replacement part; it is the guardian of fuel injection accuracy. By delivering real-time, high-fidelity pressure readings from the fuel rail to the ECU, the 0928400818 ensures that injection timing and quantity are perfectly synchronized with engine load, safeguarding both performance and emission compliance.



🚛 Application & Vehicle Compatibility



The 0928400818 is engineered for versatility and durability, making it a staple in the supply chain for various heavy-duty and commercial vehicle platforms. Its robust design caters specifically to:

Target Engines: Widely compatible with Cummins ISB, ISL, and ISC series engines, as well as select Fiat Powertrain and Iveco diesel applications utilizing Bosch-style common rail systems.

Vehicle Classes: Essential for Class 6-8 commercial trucks, transit buses, and industrial power units where consistent rail pressure monitoring is vital for drivability.

System Role: Functions as the primary feedback device for the fuel pressure control loop, directly influencing the operation of the high-pressure pump's metering valve.





To ensure seamless integration into existing diagnostic workflows and inventory systems, the 0928400818 adheres to strict OEM standards. Below are the core technical parameters:



Parameter	Specification Details
Part Number	0928400818
Sensor Type	Piezoresistive Rail Pressure Sensor
Operating Voltage	5V DC Reference Supply
Output Signal	Analog voltage signal (typically 0.5V - 4.5V)
Pressure Range	0 to 2000 Bar (High-Pressure Tolerance)
Thread Specification	Standard M12 or 7/16-20 UNF (Application Dependent)





At the heart of the 0928400818 lies a sophisticated piezoresistive sensing element housed within a ruggedized stainless steel casing. Unlike simple mechanical switches, this sensor utilizes a diaphragm equipped with strain gauges arranged in a Wheatstone bridge configuration.

When high-pressure fuel enters the rail, it exerts force on this diaphragm. The resulting physical deformation causes a change in electrical resistance within the strain gauges, which is instantly converted into a proportional analog voltage signal sent to the ECU. This structure is hermetically sealed to withstand the harsh chemical environment of diesel fuel and the extreme thermal cycling found in engine compartments, ensuring long-term signal stability without drift.





The 0928400818 plays a dual role in the common rail system: safety and optimization.

Closed-Loop Pressure Control: The ECU compares the real-time voltage signal from the 0928400818 against a pre-programmed "target pressure map." If the actual pressure deviates, the ECU adjusts the duty cycle of the pressure control valve on the high-pressure pump to correct it immediately.

Fail-Safe Mechanism: In the event of a sensor failure or signal implausibility (e.g., a short circuit or open wire), the ECU triggers a "limp-home" mode. This restricts engine RPM and power to prevent dangerous over-pressurization of the fuel rail or catastrophic injector failure, highlighting the sensor's critical role in vehicle safety.



Q1: Can a faulty 0928400818 sensor cause black smoke?
A: Yes. If the sensor sends a falsely low-pressure signal, the ECU may compensate by increasing the pulse width of the injectors or altering timing incorrectly, leading to incomplete combustion and visible black smoke.

Q2: What is the difference between the 0928400818 and a rail pressure regulator?
A: The 0928400818 is a sensor (input device) that reads pressure. The regulator (or pressure control valve) is an actuator (output device) that physically releases or restricts fuel to change the pressure. They work together but perform opposite functions.

Q3: Why does my truck go into "Limp Mode" after replacing this sensor?
A: This often happens if the new sensor's calibration differs slightly from the old one, or if the electrical connector wasn't seated properly. It is also advisable to clear all historic fault codes from the ECU memory after installation to reset the adaptation values.

Q4: Is the 0928400818 sensitive to fuel contamination?
A: While the sensing diaphragm is protected, severe contamination or metal shavings in the fuel rail can damage the sensor tip or clog the small inlet port, leading to slow response times or inaccurate readings.

Q5: Can I bypass this sensor if it fails?
A: No. Modern common rail systems (Euro 4/5/6 and EPA Tier 4) rely entirely on this sensor for closed-loop control. Bypassing it is impossible; the ECU will simply default to a low-power safety mode to protect the engine.
