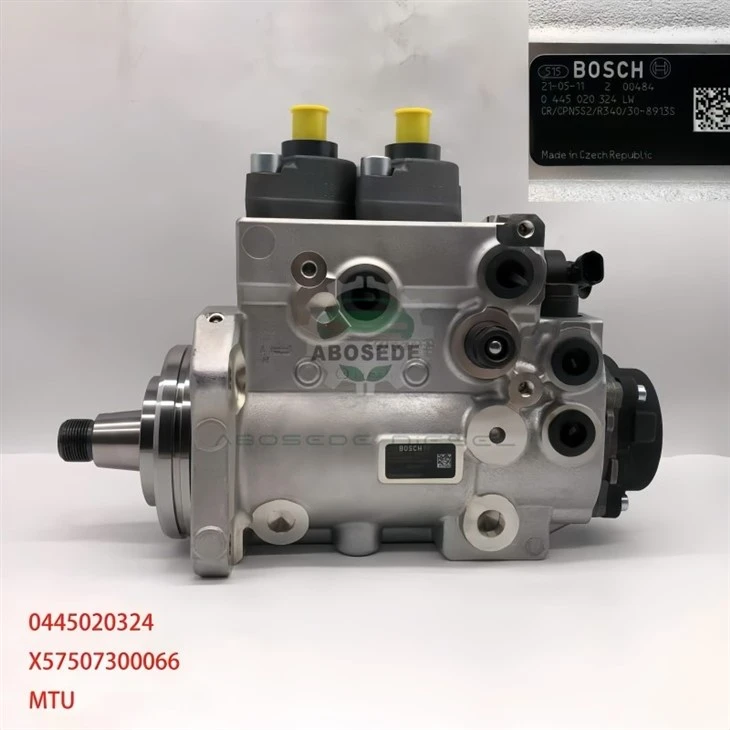

Bosch Common Rail Pump 0445020324 | MTU X57507300066 – Workshop Perspective

That pump sitting on your bench-0445020324, cross to MTU X57507300066-represents a decision point. Every hour that MTU Series 4000 or 1163 is down, the clock eats into your customer's revenue. This particular radial piston unit doesn't just supply fuel; it dictates whether that vessel leaves dock or that genset carries the night load. We have seen shops cycle through three "budget" replacements in a single season, only to end up here, with the Bosch original, because nothing else holds rail pressure when the load spikes. This is the pump that stops the bleeding-both from the fuel lines and from your service bay occupancy.

The 0445020324 runs at system pressures north of 1800 bar-that is the threshold where MTU's multi-injection strategies actually function. Slap on a pump with incorrect flow mapping, and you will chase phantom rail pressure faults for weeks. This unit carries the X57507300066 reference, superseding X57507300020, X57507300031, and X57507300058-check the engine plate before you commit. The inlet metering valve and pressure control valve are tuned specifically for the 4000 and 1163 fuel maps. Deviate from that, and the ECU starts overcompensating, injector trim codes drift, and you are looking at a second tow-in before the month ends.

Marine pushboats, prime power gensets, mining haul trucks-anywhere the duty cycle stays heavy and the fuel quality varies from port to port. In these environments, the pump sees thermal shock from cold starts and sudden load dumps. The Bosch common rail architecture depends on this pump to maintain rail pressure at idle and at full tilt. When it fails, the diagnostic tree often points to injectors first, but the real culprit sits upstream-erratic feed pressure from a worn pumping element. Shops that know MTU keep one of these on the shelf, not because they sell ten a week, but because the one they sell saves a customer from a week-long downtime ordeal. That is inventory value measured in trust, not turnover.

You have seen it: a new pump mounted, lines torqued, engine fires, rail pressure reads fine-until the load hits. Then the fault logs fill with fuel pressure deviation codes. Most of the time, the issue traces back to contamination left in the high-pressure lines or a coupling that was not dialed in for backlash. This pump has tight clearances inside the plunger and barrel assembly. Introduce particles larger than a few microns, and those precision-mated surfaces start scoring. The result is not immediate seizure; it is a gradual loss of volumetric efficiency that shows up as slow cranking and soot in the oil. Purge the system. Replace every sealing ring. Torque the outlet connections to the MTU spec-not "good and tight." Then prime with diagnostic software until the air is fully evacuated. Skip any step, and you will be pulling this unit back out on your own dime.

A pump that cannot hold pressure forces injectors to work harder, opening longer to compensate. That extra dwell time erodes nozzle holes and raises exhaust temperatures. Over a thousand running hours, the cumulative effect is carbon packing on the injector tips and dilution of the engine oil with unburned fuel. Replacing the pump early-before the rail pressure starts hunting-protects the rest of the fuel system. The high-pressure pump is the gatekeeper; once it starts slipping, every component downstream pays the price. For a repair shop, this means fewer comebacks and more predictable service intervals. Your customer remembers not the cost of the part, but whether the fix lasted through the season. This Bosch unit, with its hardened cam ring and precision-ground plungers, minimizes that variable. It reduces the risk of bore distortion from fuel-bound abrasives, keeping the fuel delivery stable over extended service cycles. That is the kind of durability that does not shout-it just keeps the engine turning.

Q1: We buy pumps in small batches-what is the shelf life on this unit before seals degrade?
Bosch ships these with protective oil film on internal components. Stored in a dry, climate-controlled space away from ozone sources, the unit remains fit for installation for up to three years. Rotate stock to avoid extended dormancy; seals prefer movement over static aging.

Q2: Have you seen any pattern failures on these pumps when used with biodiesel blends above B20?
Yes. Higher biodiesel content affects lubricity and can cause the pressure control valve to stick due to polymerized deposits. We recommend more frequent fuel filter changes and periodic rail pressure monitoring if running B20 or higher. The pump handles it, but fuel chemistry demands attention.

Q3: What is your return rate on this specific MTU variant compared to aftermarket alternatives?
Returns on the Bosch 0445020324 run under 0.5% in our data. Most returns are misdiagnosed-the pump was not the issue. Aftermarket equivalents in the same application show return rates above 8%, primarily due to pressure instability at low RPM and premature seal weeping.

Q4: Can we run this pump on an engine with a remapped ECU for higher output?
Physically, yes. But the pump has a maximum delivery rate; if the remap asks for rail pressure beyond the pump's design ceiling, you will see pressure drop-offs under sustained load. Stay within the OEM fuel map parameters, or you are trading pump life for peak numbers.

Q5: How many labor hours should we budget for a proper replacement on a Series 4000?
Plan for 6 to 8 hours in the bay, assuming no seized fittings or drive gear issues. Add another hour for system priming and validation with diagnostic software. Rushing this job to 4 hours usually means skipped purging steps, which come back as a no-start or rough idle within 50 operating hours.
