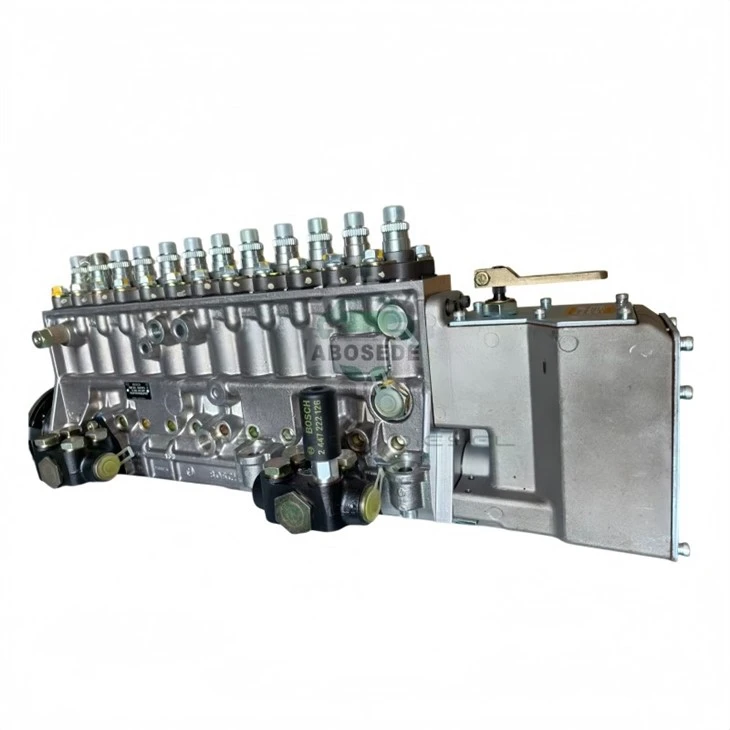

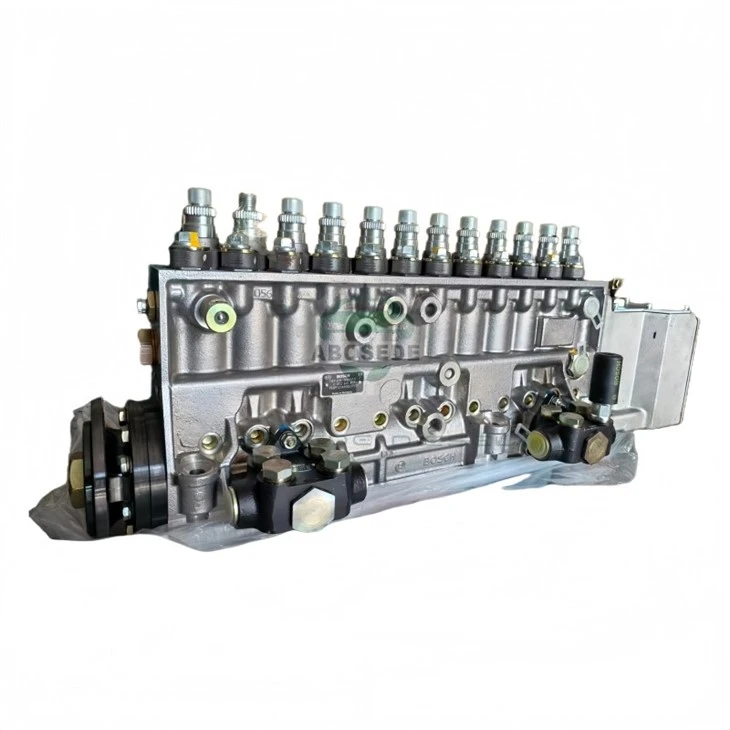

Bosch 0402610807 | PE12P120A500LS7937 Diesel Injection Pump Assembly

This Bosch 0402610807 injection pump assembly, carrying the manufacturer type designation PE12P120A500LS7937, is a mechanical in-line diesel injection pump engineered for heavy-duty industrial and marine power plants. Sourced as a direct replacement for MAN engine applications, it serves as the pressure-generation core for the DHI-D2842LE power unit rated at 620 kW . For repair facilities and fleet parts managers dealing with high-horsepower off-highway equipment, this unit represents a critical path component where fuel delivery precision directly dictates combustion stability and exhaust temperature thresholds.

The 0402610807 is built around a twelve-cylinder pumping element configuration, designated by the PE12P prefix, which aligns with the firing sequence demands of large-displacement industrial diesels. Its P120 element size indicates a plunger diameter suited for high fuel volume delivery under sustained load, a non-negotiable trait for the D2842LE engine platform . The A500 suffix denotes a specific camshaft profile and governor characteristic tailored for 620 kW continuous output, ensuring the mechanical governor responds accurately to load swings without hunting. The LS7937 build code further refines the calibration for MAN's DHI series, which often operates in generator-set or marine propulsion roles where droop control and torque reserve are more critical than automotive throttle response.

While the primary catalog anchor is the MAN D2842LE, the 0402610807 crosses to the OEM reference 65.11101-7303, a number that surfaces in MAN industrial engine parts diagrams for the D2842 family . This pump does not share mounting flanges or drive couplings with common automotive Bosch VE or VP44 units; it is a flange-mounted, gear-driven assembly requiring precise static timing against the engine's flywheel markings. Parts wholesalers should note that the same Bosch number appears in legacy cross-reference tables alongside KHD and Mercedes-Benz industrial applications, though the MAN calibration remains the primary validated fitment . Misapplication across brands without verifying the camshaft profile and governor spring set risks off-calibration fueling and elevated exhaust gas temperature under load.

Bench testing before installation is not optional with the PE12P120A500LS7937. The pump must be mounted on a calibrated test stand and verified for delivery volume at both rack positions and speed points specified in the Bosch data sheet for the A500 governor curve. On-engine installation requires dial indicator verification of plunger lift at the specified pre-stroke dimension; the D2842LE front gear train offers no tolerance for guesswork. Technicians should replace the drive coupling and flange O-ring as a matter of course, and torque the delivery valve holders to specification after any bench work. Contamination ingress at the delivery valve seats is the leading cause of secondary failure on these mechanical assemblies, so fuel line caps must remain in place until the moment of connection.

Modern common rail systems rely on a low-pressure lift pump feeding a high-pressure radial piston pump governed by an ECU-controlled pressure control valve; injection timing and quantity are managed electronically at the injector . The 0402610807 operates on an entirely different principle: plunger stroke and delivery valve opening are mechanically linked to engine rotation, with the governor balancing rack position against centrifugal force. For repair shops, this distinction matters commercially. A failed common rail pump often presents as a pressure deviation code or a limp-home condition, whereas a worn PE12P unit manifests as low power, black smoke, or unstable idle-symptoms a seasoned diesel technician can trace to delivery valve leakage or plunger wear without a scan tool. The repair value lies in the rebuild path: plungers, delivery valves, camshaft bearings, and governor components remain serviceable, extending the asset life of a 620 kW engine that would otherwise face a costly common rail conversion or scrapping.

Q1: Is the 0402610807 a direct swap for any other MAN pump number without recalibration?
A: No. Even within the D2842LE family, MAN issued multiple pump calibrations for different kW ratings and governor droop settings. The A500 suffix is the calibration identifier; substituting a different suffix without bench verification will alter fuel delivery curves.

Q2: What core criteria do you use to accept a 0402610807 for rebuild?
A: We inspect the camshaft lobes for pitting and plunger bores for scoring beyond the service limit. A seized plunger that has scored the barrel often renders the hydraulic head non-rebuildable, so cores should be evaluated before freight is committed.

Q3: How does the mechanical governor on this pump behave in generator-set applications?
A: The A500 governor is set for isochronous or droop operation depending on the engine's electronic governor interface. If the engine uses a separate actuator for speed control, the pump's internal mechanical governor serves as a backup overspeed limit rather than the primary control.

Q4: What is the typical lead time for a bench-tested 0402610807 vs. a used take-off?
A: Bench-tested rebuilds with new plungers and delivery valves generally run 3–5 weeks depending on core availability. Used take-offs are faster but carry calibration uncertainty; we recommend requiring a test bench report with any used unit.

Q5: Does this pump have any relationship to common rail conversion projects?
A: None mechanically. The 0402610807 is a mechanical in-line pump. Conversions to common rail require a different cylinder head, injectors, ECU, and high-pressure lines-the existing pump is removed entirely from the fuel path.

Q6: What fuel filtration micron rating protects the PE12P plungers best?
A: For mechanical in-line pumps with P-type plungers, 10-micron absolute filtration at the primary stage and 2-micron at the final stage is the practical minimum. Water separation is equally critical; plunger seizure from water ingress is a common failure mode on marine and off-highway installations.
