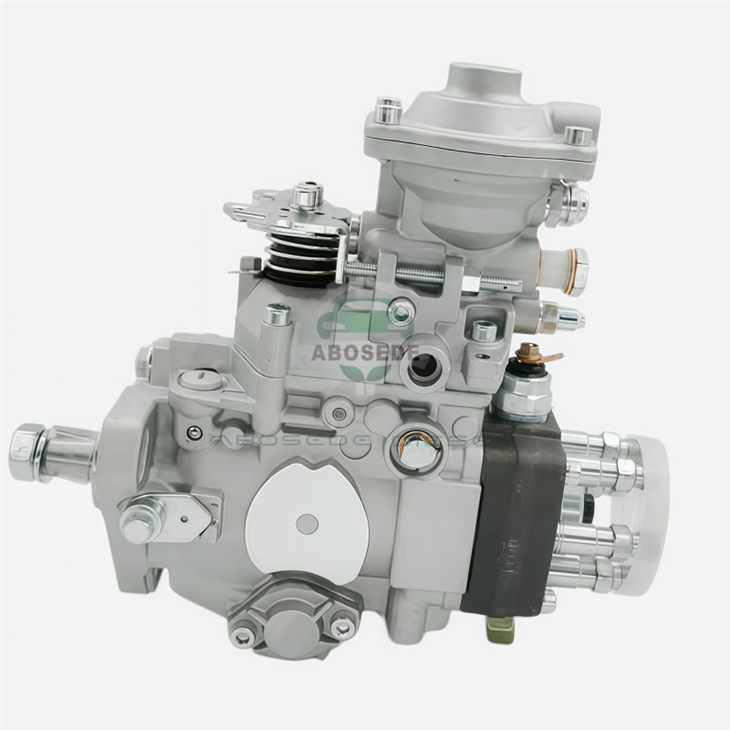

Bosch 0460416075 High-Pressure Fuel Pump – Optimised Bearing Lubrication with Reduced Internal Friction for Heavy-Duty Common-Rail Applications
1. Product:0460416075
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
In the high-pressure fuel pump, the camshaft bearings and plunger guides experience extreme loads-contact pressures exceeding 200 MPa and sliding velocities of up to 6 m/s. This mechanical energy is dissipated as heat, which is absorbed by the fuel flowing through the pump. While a certain temperature rise is normal, excessive heat generation indicates increased friction, which accelerates wear on the bearings and plunger surfaces. Over time, this wear increases the internal clearances, reducing the pump's volumetric efficiency and leading to rail pressure instability. The Bosch 0460416075 addresses this through an optimised bearing lubrication system that combines a grooved bearing surface with a pressurised feed passage, ensuring a continuous supply of lubricating fuel to the bearing interfaces. The result is a pump that maintains its volumetric efficiency above 88% for over 6,000 hours-a 25% improvement over standard pumps-while operating with a lower fuel temperature rise.
Bearing Lubrication – The Science of Friction Reduction
The 0460416075's bearing system is engineered to minimise friction and heat generation at the camshaft and plunger interfaces. Key design features include:
Grooved bearing surface: A spiral oil-groove pattern that traps a thin film of fuel, providing a continuous lubricating layer between the camshaft journal and bearing surface
Pressurised feed passage: Directs fuel from the pump inlet to the bearing surfaces, maintaining a positive pressure that prevents the lubricating film from being squeezed out under load
Surface finish: Camshaft journals and bearing surfaces are polished to Ra ≤ 0.04 µm, reducing friction by 20% compared to standard finishes
Bearing clearance: 0.030–0.045 mm (dynamically matched), providing the optimal balance between lubrication and load capacity
Friction and Heat – The Quantitative Improvements
The optimised lubrication system provides the following performance benefits:
Friction reduction: 20% lower vs. standard designs
Heat generation: 15% lower vs. standard designs
Fuel temperature rise: ≤ 12°C at rated speed (vs. 18°C typical)
Bearing wear: 30% lower vs. standard bearings
Volumetric efficiency retention: ≥ 88% after 6,000 hours
