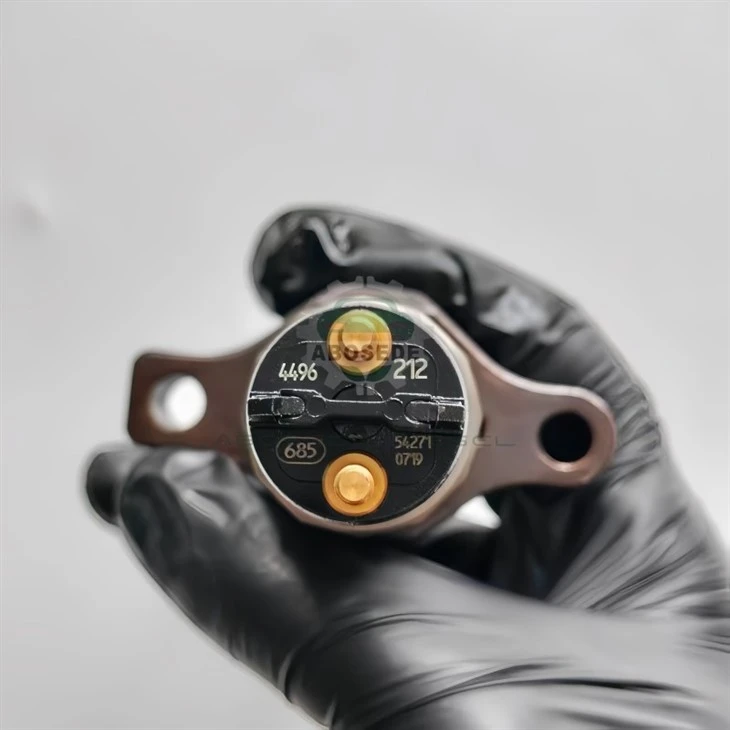

Bosch 0445120212 Common Rail Diesel Injector For Cummins ISF & CNH Engines

This Bosch 0445120212 common rail injector is a direct-fit replacement engineered for the CRI2 generation fuel systems found in Cummins ISF/ISBe 3.9L and 5.9L platforms, as well as Case IH and New Holland agricultural equipment. Supplied as a new aftermarket unit with sealing ring included, it delivers calibrated fuel delivery for workshops handling routine injector replacement or full fuel system overhauls on medium-duty diesel engines. The core reference 0 445 120 212 appears on the injector body, alongside cross-compatible OEM numbers that make it a practical stocking item for distributors serving mixed fleets.

The 0445120212 belongs to Bosch's second-generation Common Rail Injector (CRI2) family, using a solenoid actuation design with a VCO (Valve Covered Orifice) nozzle configuration. Typical static flow rates sit around 720 cc/min at 100 bar reference pressure, though exact delivery values follow the calibration code stamped on each unit. Operating pressure reaches the 1,600–1,800 bar range demanded by modern common rail systems, and the injector is supplied with the required seal ring for combustion chamber sealing. For rebuilders and diagnosticians, the nozzle reference DSLA143P5501 and valve assembly F 00R J02 130 are the critical service identifiers when sourcing internal components.

The 0445120212 covers a broader vehicle and equipment footprint than many single-application injectors, which makes it attractive to distributors serving agricultural and commercial accounts simultaneously. On the Cummins side, it fits ISF 3.9L four-cylinder and ISF/ISBe 5.9L six-cylinder engines, including applications in Volkswagen's Worker series trucks for Latin American markets from roughly 2003 to 2011. In the CNH world, the same injector serves Case IH and New Holland equipment where OEM reference 2830957 is called for. Cummins OEM numbers 5255184 and 5263307 also cross to this Bosch number, giving counter staff multiple lookup paths when a customer arrives with a dealer part number rather than the Bosch reference.

For diesel repair shops and parts wholesalers, the 0445120212 sits at a useful intersection: it covers enough Cummins and CNH applications to justify shelf space without overlapping heavily with the high-volume 6.7L Cummins injectors that every distributor already carries. The cross-reference web-0986435508, 5255184, 2830957, 5263307-means one SKU answers inquiries from agricultural equipment dealers, light commercial truck fleets, and Volkswagen Worker parts channels. When a customer describes a hard start when warm or a hazy idle on a 3.9L ISF or a New Holland TS series tractor, this number is the first lookup to run. Stocking it alongside the matching seal ring kit and the DSLA143P5501 nozzle gives your counter a complete solution rather than a partial one.

Q1: Can I install a 0445120212 without entering the C2I code if the engine already runs smoothly?
No. The ECU defaults to a conservative injection map without the correct code, which masks the problem initially but causes long-term cylinder imbalance and DPF loading on equipped chassis. Always code after installation.

Q2: A customer's core 0445120212 has a bent nozzle cap. Is that a rebuild candidate or scrap?
Deformation at the nozzle cap typically indicates over-torque during a previous installation or combustion gas blow-by past a reused copper washer. The body may still be serviceable, but the nozzle and cap assembly require replacement regardless.

Q3: Does this injector fit both the 3.9L and 5.9L Cummins ISF engines without calibration differences?
The physical fitment is identical, but flow calibration codes differ by engine rating. Order by the OEM number on the failed unit whenever possible rather than assuming one 0445120212 covers every ISF variant.

Q4: What return flow rate should I expect from a healthy 0445120212?
Specifications vary by test bench and calibration, but a general workshop rule is that back-leakage should remain below 30 ml/min at operating temperature. Rates climbing toward 50 ml/min indicate internal wear and impending hard-start complaints.

Q5: Is it safe to replace just one failed injector on a high-mileage CNH engine?
For a single premature failure with no contamination evidence, yes. If the engine has accumulated significant hours and the remaining injectors show corrected delivery values outside tolerance, a full set replacement prevents repeat labor and comebacks.

Q6: How should I store 0445120212 injectors before sale or installation?
Keep them in the sealed packaging with the protective cap in place, away from humidity and temperature swings. Bosch CRI2 units are sensitive to internal corrosion; a shelf-stored injector with a compromised cap can seize before it ever reaches the engine.
