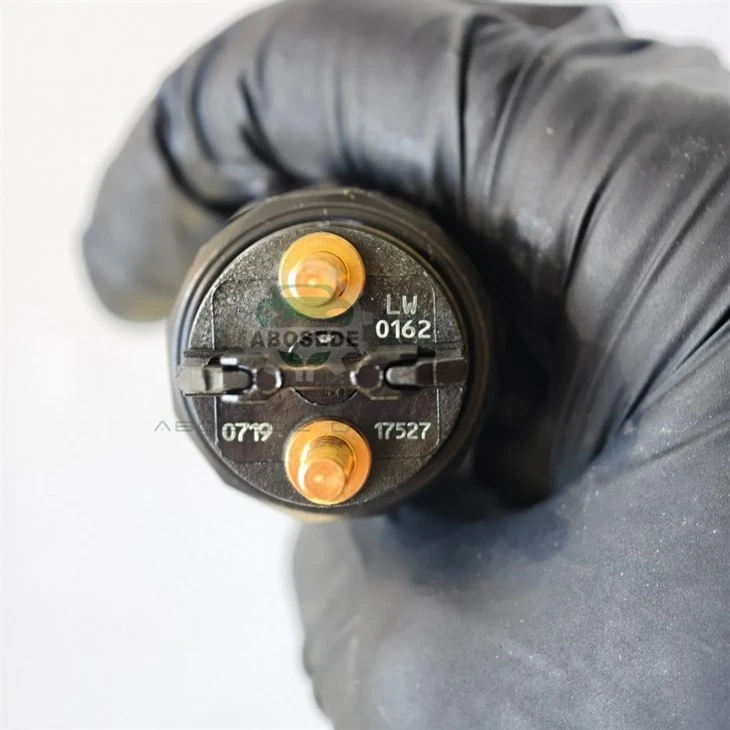

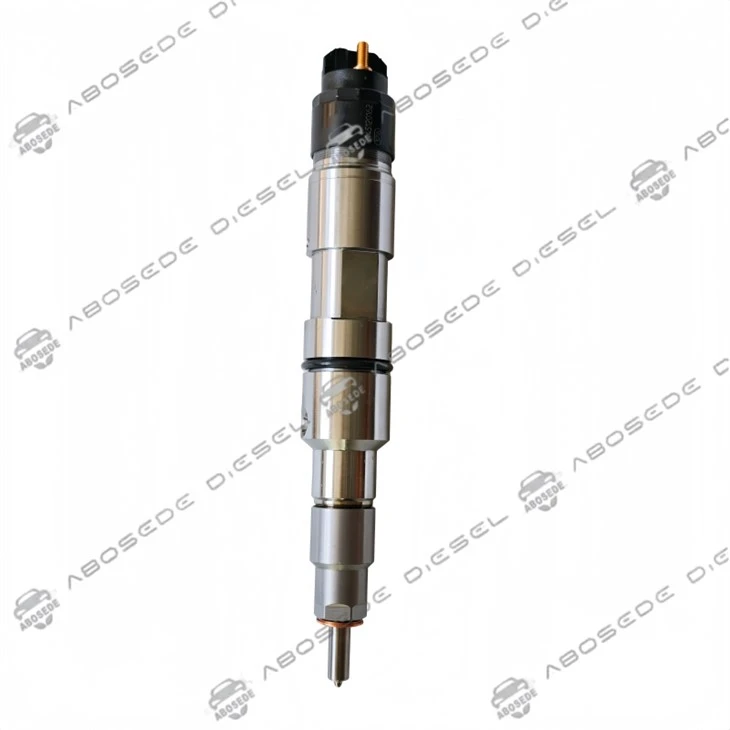

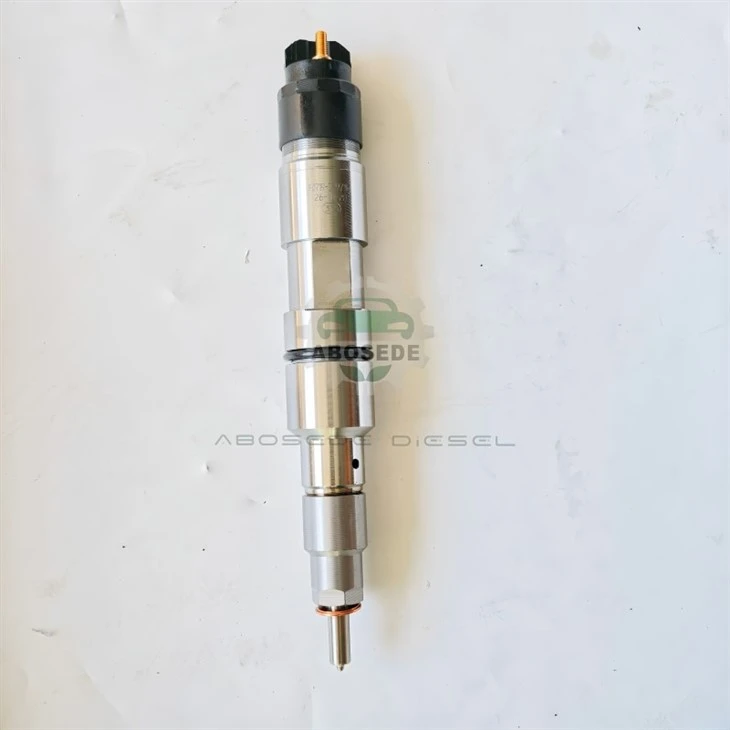

Bosch 0445120162 Common Rail Injector For MAN TGL/TGM & VW Worker

This Bosch 0445120162 is a solenoid-type common rail diesel injector engineered for the MAN D0834 and D0836 engine families, covering a broad range of TGL and TGM chassis from 2009 onward, as well as select Volkswagen Worker applications in Latin American markets . As a direct replacement for the 0 445 120 162 calibration, it restores factory fuel delivery precision on engines that have accumulated severe nozzle wear or internal control valve leakage.

This injector is calibrated specifically for the MAN D0836LFL series six-cylinder engines found in TGM 12.250, 12.290, 15.250, 15.290, and 18.290 models from 2009 onward, including engine codes such as D0836LFL61, D0836LFL64, and D0836LFL80 . On the four-cylinder side, it serves the D0834LFL family in TGL 7.180, 8.180, and 10.180 chassis, covering the 4.6-liter displacement platform used extensively across European distribution fleets . Volkswagen Worker 13.190 through 17.190 trucks with the D0834 engine also accept this common rail injector as a factory-specified replacement .

Before fitting the 0445120162, the cylinder head injector bore must be cleaned of carbon deposits and residual combustion residue; any debris left in the seat will prevent the copper gasket from sealing correctly under 1,800 bar rail pressure . Always use a fresh nozzle gasket and O-ring-reusing old seals is a leading cause of compression blow-by and subsequent injector body overheating. Lubricate the O-ring with clean diesel before insertion, torque the hold-down clamp to the OEM specification, and ensure the return line connector clicks positively into place. Do not energize the solenoid before the fuel system is fully primed and leak-tested.

When a TGL or TGM enters the bay with rough idle, warm hard starting, or a P0087 rail pressure code, the 0445120162 is frequently the root cause rather than a symptom . Excessive return flow from a worn control valve prevents the rail from holding target pressure during cranking, which is why these engines often fire on the first turn cold but require extended cranking when hot . For diesel repair shops and parts distributors supporting MAN commercial vehicle fleets, stocking this injector with a validated calibration certificate reduces comeback rates and diagnostic labor. It is a high-turnover SKU for any counter serving European truck operators.

Q1: Can I install the 0445120162 without coding it to the ECU? A: No. The injector trim code must be programmed into the engine control unit using a suitable diagnostic platform; failing to enter the calibration data will result in rough running and incorrect pilot injection quantities.
Q2: What is the most reliable bench test before installation? A: Run a full characterization on a Bosch-compatible test bench covering idle leak-off, full-load delivery, and back-leak at 1,350 bar. A simple resistance check alone will not reveal hydraulic wear.
Q3: My core has a bent return nipple-is it rebuildable? A: Generally no. The return restrictor and internal control valve are calibrated as a matched assembly; deformed inlet or return fittings compromise the internal geometry and the core should be rejected.
Q4: Does this fit both 4.6L and 6.9L MAN engines? A: Yes, but verify the engine code and ECU calibration. D0834 and D0836 share the injector body, yet emission variants may require different trim files.
Q5: What causes repeat injector failure within 10,000 km? A: Contaminated fuel or a failing high-pressure pump sending metal particles downstream. Always flush the rail and replace the fuel filter when replacing injectors on high-mileage TGL/TGM units.
Q6: Is the 0986435565 a direct swap? A: That is a Bosch exchange reference for the same hydraulic specification. Confirm the supplied unit carries the correct trim code for your engine variant before programming.
