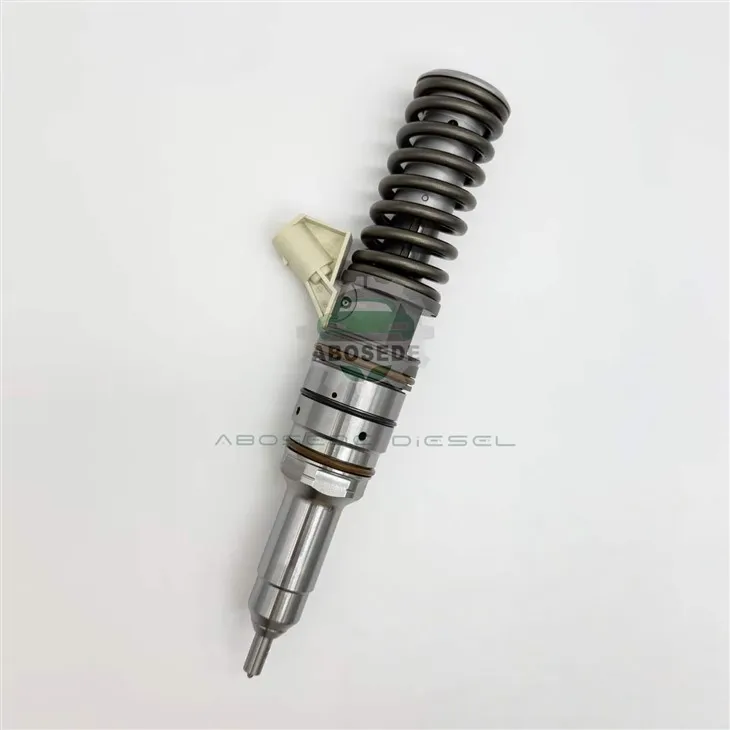

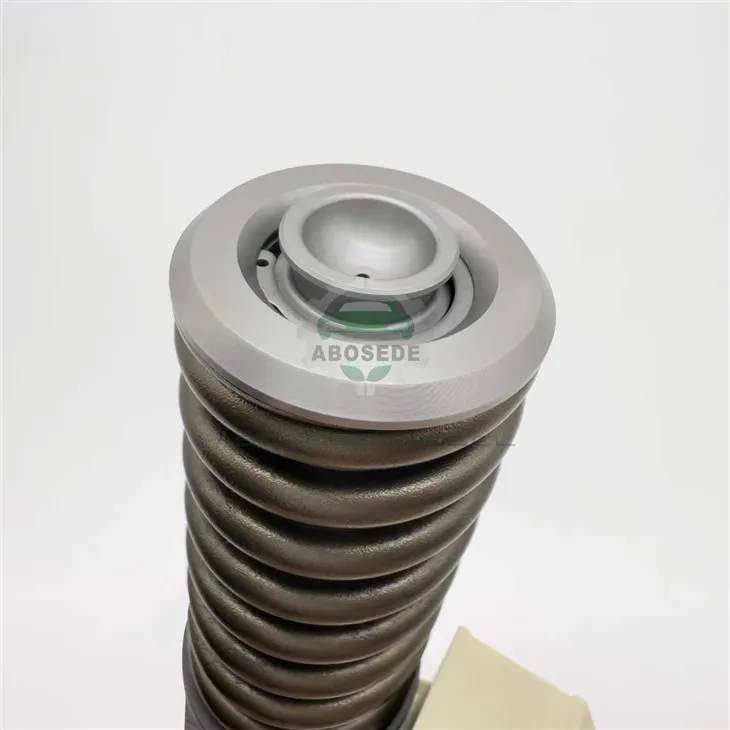

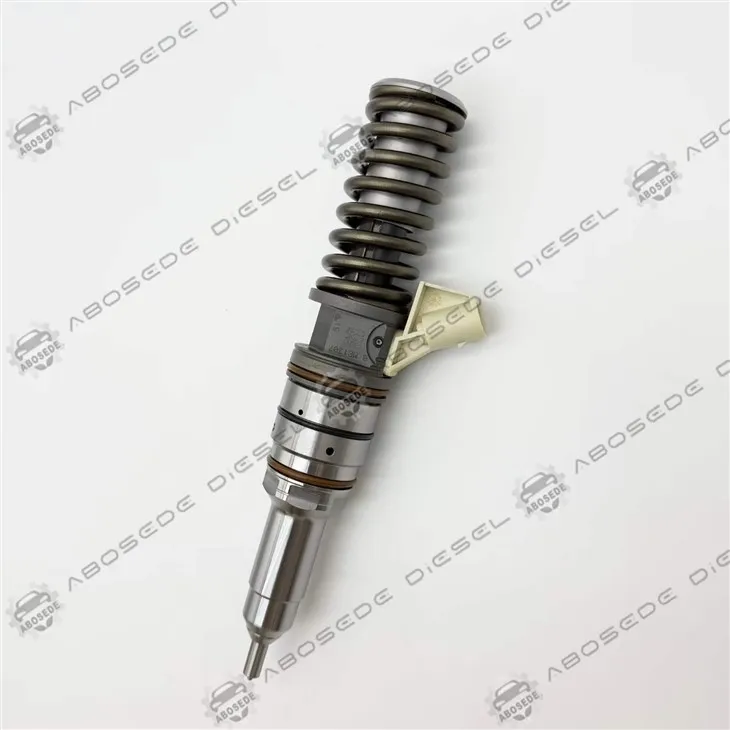

50428707 / 0414703 B2B Sourcing: Heavy-Duty Bosch EUI For Iveco Cursor 10 & 13

While modern high-pressure common rail designs focus on distributing structural energy from a collective accumulator, the 50428707 / 0414703 Electronic Unit Injector (EUI) utilizes an isolated, decentralized concept. By integrating the pump mechanism and fuel nozzle into a unified module per cylinder, it completely cuts out fluid-loss issues found in high-pressure piping networks. Powered mechanically by the overhead camshaft, this architecture converts torque directly at the combustion interface. The physical absence of a shared rail minimizes internal flow delay, allowing the system to maintain instant, sharp atomization cycles that match the heavy-duty demands of fleet machinery.

Engineered for severe-duty cycles, this Bosch-manufactured EUI unit serves as a critical direct-replacement component across commercial truck logistics and agricultural fleets:

Commercial Truck Machinery: Purpose-built for the Iveco Stralis and EuroTrakker lines equipped with Euro 3 to Euro 5 Cursor 10 and Cursor 13 engines.

Agricultural Cross-Over: Fits high-capacity Case IH and New Holland harvesting combinations running matching powertrain blocks.

Interchange Equivalents: Cross-references with original industry codes 0414703008, 0414703004, 504287070, and 0986441026.

⚙️ Cam-Actuated Fuel Compression

Because fuel pressurization happens directly inside the unit injector shell, there are no long delivery tubes to swell or delay the hydraulic signal. This structural rigidity allows mechanical energy to transition instantly into fluid pressure exactly when combustion requires it.

⏱️ Immediate Micro-Second Responsiveness

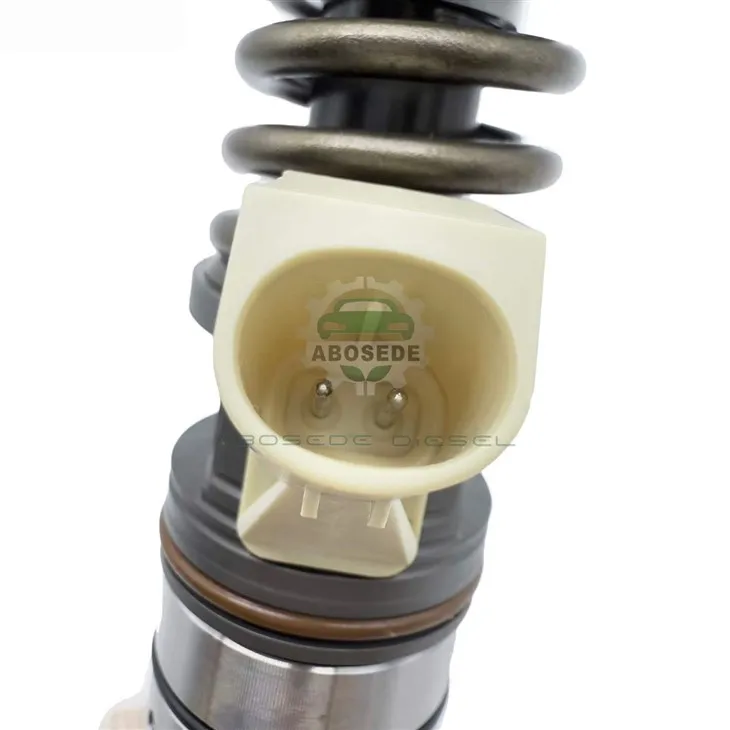

The integrated, fast-acting solenoid assembly handles precise pilot, primary, and secondary injection steps. This rapid control window eliminates ignition hesitation, ensuring reliable cycle transitions under fluctuating load demands.

🌌 Ultra-Stable Cylinder Balancing

Decentralized pressure management gives each cylinder independent fuel delivery control. This uniformity prevents layout-wide pressure drops, resulting in highly stable idling, less crankshaft vibration, and cleaner exhaust output.

Q1: Why choose a cam-driven EUI over a modernized common rail system for high-torque commercial fleets?

An EUI system removes the risk of shared rail pressure drops. If one line or injector loses pressure in a traditional common rail layout, the entire fuel delivery system drops efficiency. The 0414703 unit keeps pressure local to each cylinder, ensuring reliable performance even during long haul operations.

Q2: How does the integrated pump design affect nozzle life when using low-quality commercial diesel?

Because the internal plunger forces fuel through the spray holes at up to 2,000 bar, the unit is less prone to the varnish and deposit issues that often clog lower-pressure common rail tips.

Q3: What critical testing standards must the 50428707 injector pass on a professional test bench?

To match B2B fleet standards, the injector undergoes full-load delivery tracking, idle feedback calibration, back-leakage fluid volume calculations, and responsiveness verification of the internal solenoid valve.

Q4: Can a worn overhead camshaft lobe affect the spray pattern of this specific unit injector?

Yes, absolutely. Since this design relies on mechanical force from the engine's overhead cam, physical wear on the lobe limits plunger travel. This drop in stroke reduces peak injection pressure, causing poor atomization and increased black smoke.

Q5: What are the main warning signs that an Iveco Cursor engine has a failing unit injector?

Be on the lookout for intermittent misfires under heavy load, uncharacteristic cold-start smoke, diagnostic fault codes tied to cylinder balance limits, or a sudden drop in fuel efficiency.
