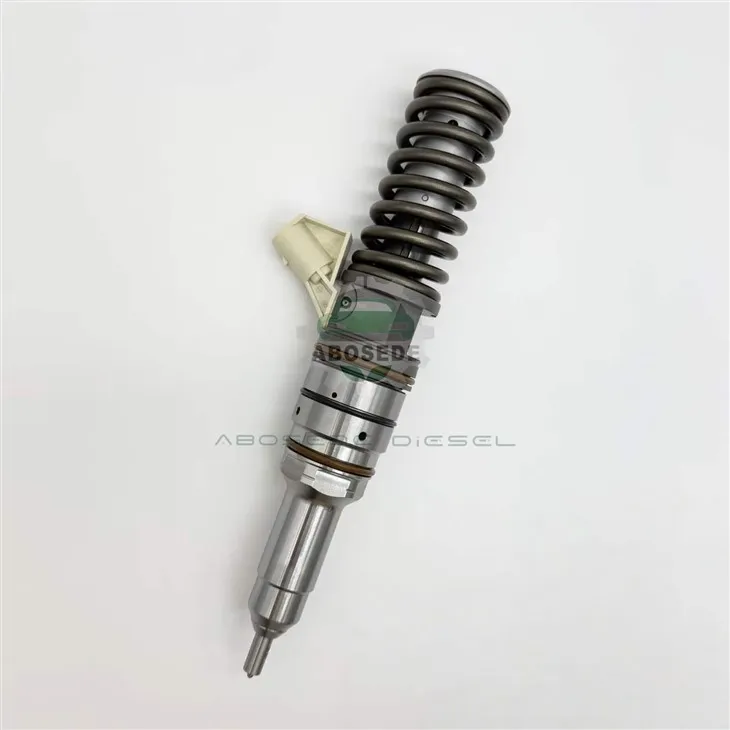

504287069 | 0414703013 — Digital Test-Bench Certified EUI: Precision-Calibrated Fuel Injection For Heavy-Duty Iveco Systems

In the heavy-duty diesel remanufacturing and parts supply industry, a clean exterior shell means nothing without precise internal fluid dynamics. Every electronic unit injector (EUI) operates under extreme mechanical forces, where tiny microscopic defects can disrupt fuel delivery.

To guarantee perfect field operation, every 504287069 injector ( Bosch structural designation 0414703013) goes through a rigorous multi-station digital test-bench calibration procedure. This testing uses simulated real-world conditions to verify and record critical fuel delivery metrics before the part is securely packaged and shipped to your workshop.

Each individual injector must pass five specific hydromechanical validation phases to receive its factory certification seal:

[💧 High-Pressure Static Sealing Test] ➔ Evaluates the injector housing and internal O-rings at pressures above normal operation to confirm there are zero fluid leaks.

[🔄 Dynamic Back-Leakage Monitoring] ➔ Measures internal oil bypass and return-flow volumes to ensure structural control valve tolerances remain perfectly tight.

[⏱️ Solenoid Response Consistency] ➔ Measures the electronic actuation lag down to the microsecond, verifying that multiple injectors operate with perfect synchronization across the engine block.

[📈 Multilevel Injection Quantity Profiling] ➔ Charts exact fuel delivery volume across three distinct engine operating ranges:

Idle Speed ($LL$): Guarantees smooth, smoke-free operation at low engine speeds.

Part Load ($EM$): Optimizes mid-range fuel economy and smooth throttle transitions.

Full Load ($VL$): Confirms maximum torque output and fuel delivery during high-demand operation.

[🎯 Nozzle Spray Atomization Assessment] ➔ Uses high-speed cameras to inspect the spray pattern shape and fuel droplet distribution from each multi-hole nozzle tip.

This certified, heavy-duty fuel injector is designed for large-displacement commercial applications that require strict compliance and excellent fuel economy:

Powertrain Compatibility: Iveco Cursor 10 and Cursor 13 diesel engine families (Euro 4 and Euro 5 heavy-duty emissions platforms).

Target Commercial Fleets: Iveco Stralis, Trakker, and EuroTrakker tractor-trailers, as well as specialized off-highway machinery.

Interchange Matrix: Direct replacement for cross-reference part numbers including 504125329, 504287108, and 0986441029.

Q1: Why is checking the return-flow volume critical during injector testing?

A: High return-flow volume indicates internal mechanical wear, usually around the control valve seat. This wear allows high-pressure fuel to bypass the nozzle and leak back into the return line, which reduces overall injection pressure and can cause engine misfires.

Q2: How does solenoid response consistency affect multi-cylinder engine operation?

A: If one injector's solenoid responds slower than the others, that cylinder will experience delayed combustion. This timing imbalance creates torsional vibrations along the crankshaft, leading to rough operation and premature engine wear.

Q3: Can a test-bench map adapt to a worn engine control unit (ECU)?

A: The test bench ensures the injector matches original factory specifications. When installed, the engine ECU reads the standard trim factors or IMA codes to balance out minor cylinder variances, ensuring clean combustion across the engine block.

Q4: What is the difference between a simple pop-test and a full digital test-bench validation?

A: A basic pop-test only checks the pressure at which the nozzle opens and visualizes the spray shape. A full digital test bench controls fuel temperature, pressure curves, and electrical signals to accurately measure precise delivery volumes across different speed and load ranges.

Q5: Why do new or remanufactured 504287069 injectors sometimes show a tiny trace of test fluid upon unboxing?

A: This is a normal sign of thorough quality control. After passing final test-bench validation, a small amount of specialized calibration fluid is left inside the unit to lubricate the high-precision internal valves and protect them from corrosion during storage.
