504128354 | 0414703009 — Diagnostics-Driven EUI Resolution: Overcoming Performance Degradation in Iveco Cursor Engines

A failing fuel injection system rarely breaks down silently. Instead, it leaves a trail of distinct mechanical warnings across your dashboard and exhaust pipe. Experienced fleet managers and workshop diagnostic technicians monitor these key warning signs to pinpoint combustion failure:

[⚠️ Hard Start] ➔ Extended cranking periods, especially when the engine block is hot, caused by internal pressure drop.

[🛑 Rough Idle] ➔ Harsh engine shudder at low RPMs, pointing to unbalanced fuel volume delivery across the cylinders.

[💨 Black Smoke] ➔ Excessive soot exiting the exhaust pipe, indicating poor fuel atomization and incomplete burning.

[💥 Misfire] ➔ Intermittent cylinder dropouts and physical engine shaking under heavy acceleration.

[📉 High Fuel Consumption] ➔ A noticeable drop in fuel economy as the engine control unit struggles to adjust for worn components.

[❌ Power Loss] ➔ A drop in torque when climbing steep grades or pulling maximum cargo weight.

When these symptoms appear, continuing to operate the vehicle risks damaging the engine pistons. Installing a precision-calibrated 0414703 Iveco injector replacement is the direct mechanical solution to restore factory performance.

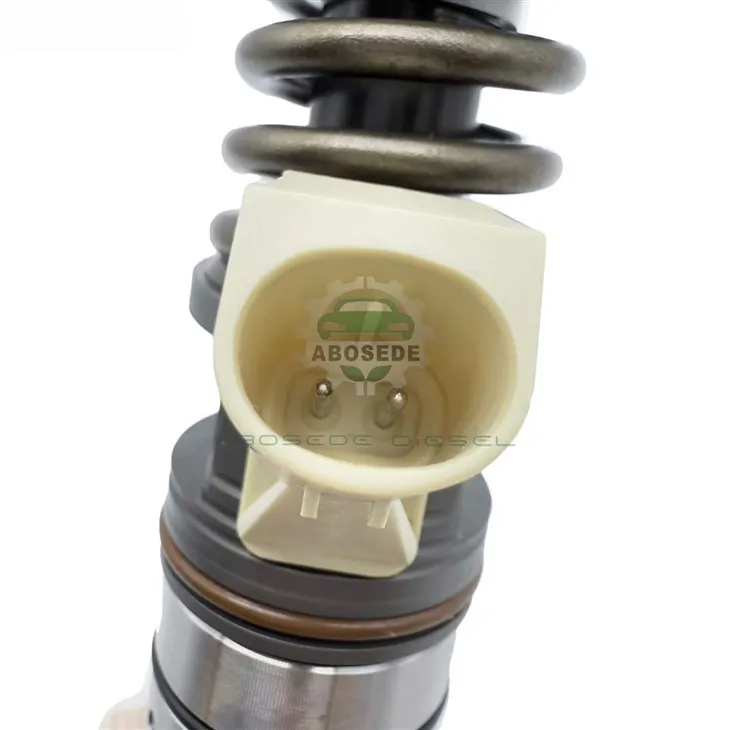

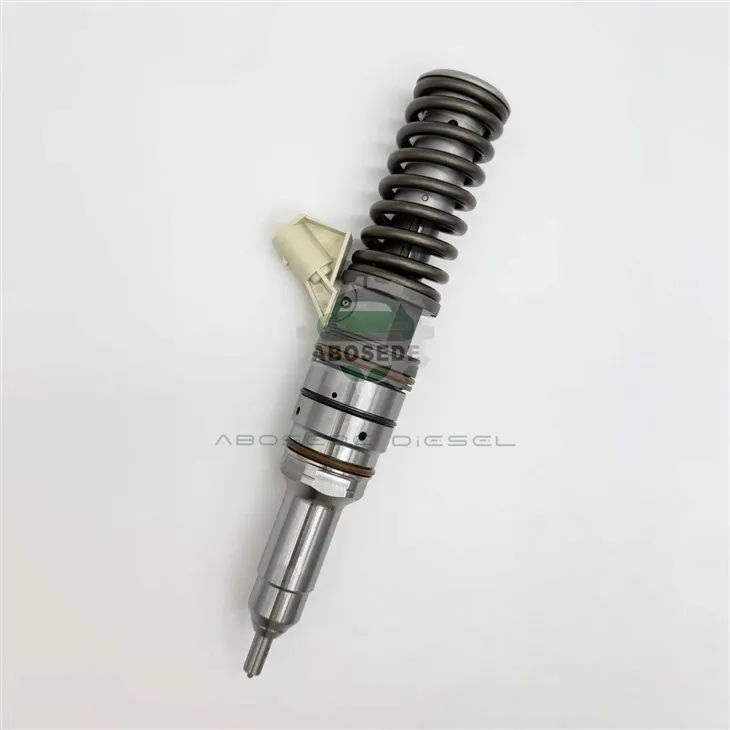

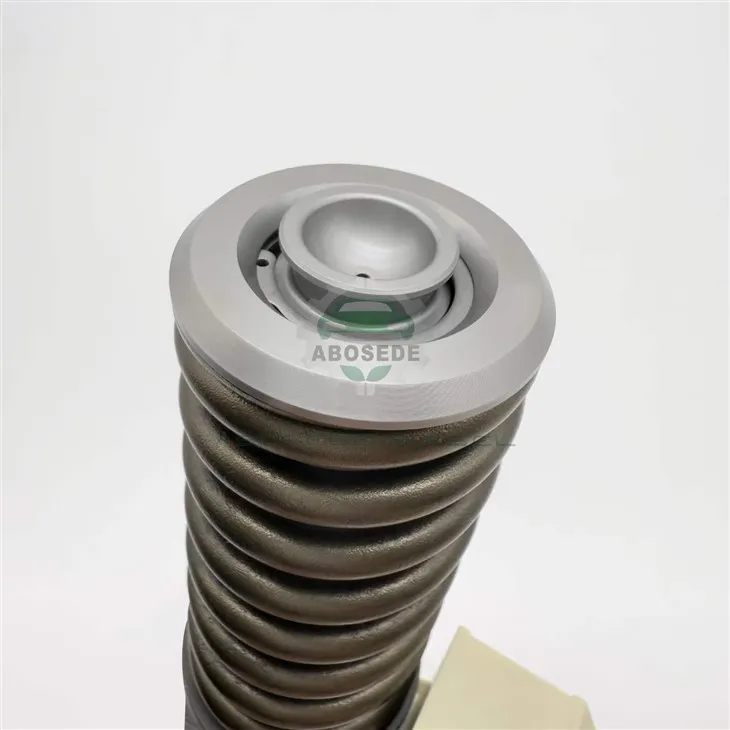

Resolving these field failure symptoms requires an injector built to strict manufacturing tolerances. The 504128354 Electronic Unit Injector (EUI) uses advanced engineering to eliminate fluid leakage and maintain high performance.

🔬 Technical Specification Breakdown

System Type: Overhead camshaft-driven Electronic Unit Injector (EUI/PDE architecture).

Cross-Reference Matrix: Bosch 0414703009 (with factory supersessions including 0414703005 and 0986441027).

Peak Structural Pressures: Designed to withstand continuous, localized injection pressures reaching up to $2000\text{ bar}$.

Nozzle Dynamics: Features an advanced multi-hole spray nozzle to improve fuel delivery response times.

This commercial-grade fuel injector is designed for large-displacement heavy-duty transport, construction equipment, and marine applications.

Engine Match: Iveco Cursor 10 and select Cursor 8 powertrain platforms.

Commercial Models: Iveco Stralis, Trakker, and EuroTrakker heavy freight distribution networks.

B2B Industrial Interchange: Fully compatible with Case IH and New Holland agricultural machinery systems matching parts numbers 504099014 or 504287106.

Q1: Why does an internal pressure drop cause a hot hard start condition?

A: As diesel fuel warms up, its viscosity drops. If the internal control valve seat inside the 0414703009 injector is worn, the thinner fuel leaks past the seal during cranking. This prevents the unit from reaching the pressure required to trigger the initial injection cycle.

Q2: How does a faulty unit injector lead to exhaust black smoke?

A: When the nozzle micro-orifices become clogged or enlarged by fuel deposits, fuel enters the cylinder as large droplets rather than a fine mist. These larger droplets do not mix well with air, leaving unburnt fuel that turns into black carbon soot in the exhaust.

Q3: Can a single misfiring EUI cause long-term damage to the internal engine block?

A: Yes. A stuck or leaking nozzle tip drips raw diesel fuel onto the piston crown. This causes localized hot spots that can crack the piston, contaminate the engine oil, and score the cylinder walls.

Q4: Is it necessary to change the fuel filters when replacing a 504128354 injector?

A: Yes. Installing a new injector without changing the filters is a common installation error. Microscopic debris left in the fuel system can easily scratch the polished control valves of the replacement unit, causing premature failure.

Q5: How does the engine ECU detect an injector balance issue?

A: The engine control unit monitors crankshaft speed changes during each cylinder's power stroke. If one cylinder contributes less power due to a faulty injector, the ECU flags a misfire code and increases delivery to the remaining cylinders to compensate.
