0986441102 Bosch Iveco Exchange: The Fluid Dynamics Of Micro-Atomization And Combustion Efficiency

Diesel combustion is fundamentally a race against time. Inside a high-output commercial engine, the window available to inject, vaporize, mix, and ignite diesel fuel spans mere milliseconds. For fleet operators aiming to capture peak thermal output from their engines, the 0986441102 exchange injector serves as the precise boundary where liquid fuel transforms into kinetic energy.

Rather than viewing fuel system restoration as a simple hardware swap, advanced fleet maintenance focuses on the fluid dynamics at the nozzle tip. This evaluation explores how micro-atomization parameters alter the chemical thermodynamics within your cylinders, providing the technical insights needed to optimize your powertrain.

To achieve a complete burn, liquid diesel cannot simply be squirted into a cylinder; it must be introduced as a mathematically optimized fuel cone. The spatial geometry of this cone dictates how effectively the fuel droplets find oxygen molecules within the swirling compressed air mass.

🔬 Multi-Angle Nozzle Design

The nozzle assembly features laser-drilled orifices arranged in a precise angular pattern. This orientation ensures the fuel spray is directed exactly into the optimal heat zones of the piston crown bowl, avoiding dead zones near the cylinder walls.

🌪️ Spray Penetration vs. Air Entrainment

The Balance: If the nozzle spray has too much kinetic energy, liquid fuel hits the relatively cool piston surfaces, causing fuel wetting, localized washing of the oil film, and structural soot generation.

The Goal: If the spray lacks adequate velocity, it fails to penetrate deep enough into the high-density air charge, causing fuel-rich pockets near the center of the cylinder.

The Outcome: The engineered spray profile maintains the exact droplet momentum required to mix fully with air, preventing structural fuel pooling.

The core metric of common rail efficiency is the Sauter Mean Diameter (SMD)-a statistical measurement of the average droplet size within the fuel mist. A smaller droplet size creates a larger total surface area for the fuel mass, accelerating the transition from liquid to combustible gas.

🌡️ Rapid Thermal Vaporization

When the high-pressure system forces fuel through the micro-orifices, the liquid undergoes intense shear stress, splitting the stream into millions of micron-sized droplets. As this mist enters the combustion chamber, the intense ambient heat instantly vaporizes the outer layer of each droplet, initiating a clean, highly uniform ignition sequence.

🛑 Managing Sac Volume Dynamics

The tiny cavity located beneath the internal needle valve seat-known as the sac volume-plays a major role in emission control. When the needle drops to shut off fuel flow, any residual liquid left in this space can cook from engine heat, dripping into the cylinder as unatomized fluid. Advanced manufacturing techniques reduce this volume to an absolute minimum, preventing late-cycle fuel dripping that causes tailpipe smoke and carbon build-up.

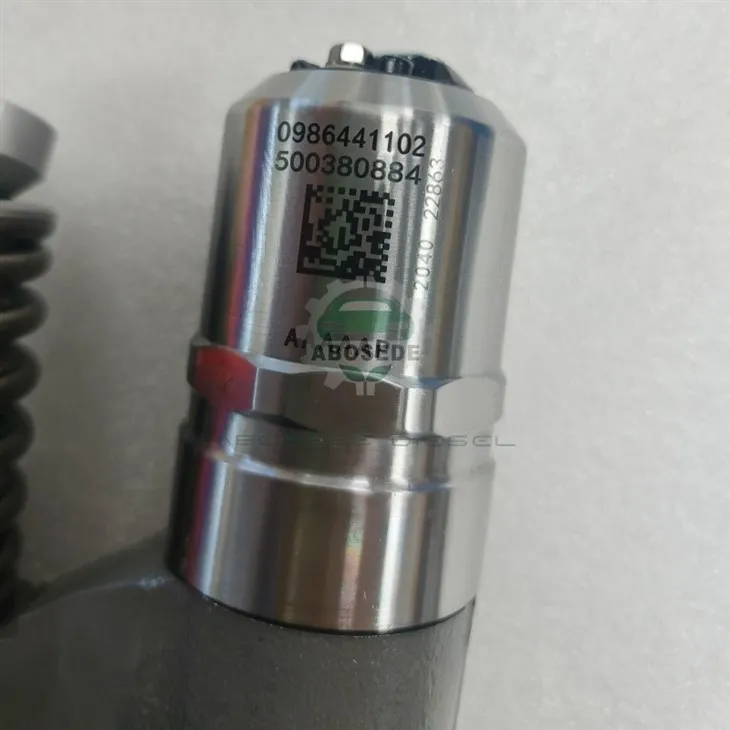

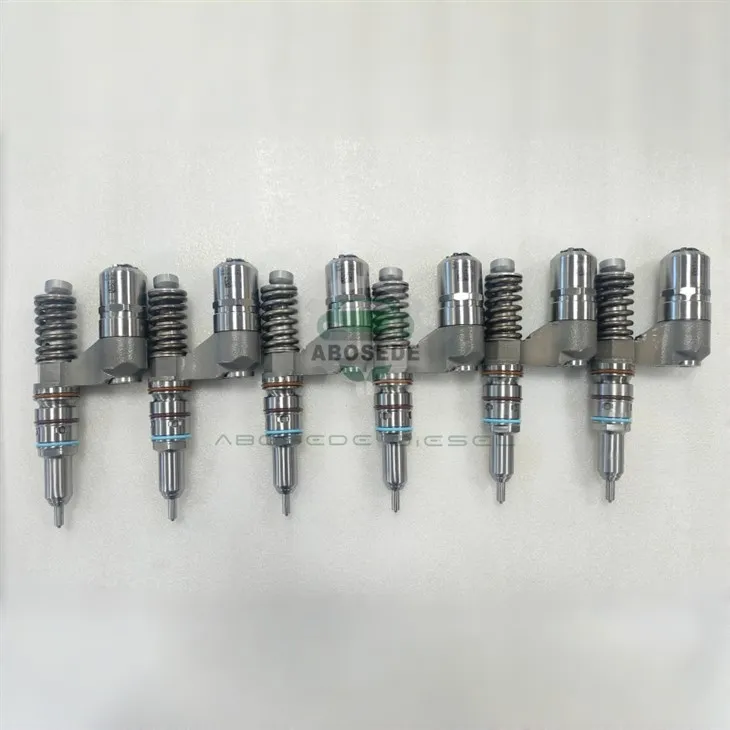

The 0986441102 remanufactured injector is constructed to maintain rigorous fluid distribution standards under continuous high-load operations.

Primary Bosch Exchange Sku: 0986441102 / 0 986 441 102

New Component Equivalent: 0445120007 / 0445120002 Series Cross

Chassis & Platform Adaptability: Iveco EuroCargo, EuroFire, Trakker

Engine Range Identification: Cursor 6 / 5.9L Tector Euro 3 & Euro 4 Systems

Nozzle Technology Classification: Long-Stem Micro-Hole Sac Nozzle

Q1: How does a tiny amount of wear on the nozzle spray holes alter fuel consumption before any trouble codes appear?

A: As pressurized fuel passes through the nozzle holes over millions of cycles, fluid erosion slowly rounds off the sharp inlet edges inside the micro-orifices. This slight geometric change alters the fluid's discharge coefficient, causing the fuel spray to form larger droplets. Because these larger droplets take longer to vaporize and burn, the engine burns more fuel to hit its torque targets, lowering overall efficiency before a fault code ever trips.

Q2: Why does an incorrect fuel cone angle cause structural soot build-up on the piston crown?

A: The shape of the piston crown bowl is carefully matched to the factory-specified spray angle. If a replacement injector uses an incorrect nozzle configuration, the fuel cone can miss the main air vortex and hit the metal surfaces of the piston bowl directly. This contact cools the fuel quickly, leading to incomplete combustion that leaves hard carbon deposits on the piston surfaces.

Q3: What is the mechanical relationship between common rail pressure and droplet atomization size?

A: There is a direct inverse relationship: higher system operating pressure yields a smaller fluid droplet diameter. By forcing diesel through the micro-holes at extreme pressures, the fluid achieves supersonic velocities relative to the dense air inside the combustion chamber. This immense velocity differential rips the liquid stream apart into an ultra-fine mist, facilitating near-instantaneous combustion.

Q4: Does fuel viscosity impact the spray pattern of the 0986441102 exchange injector during cold winter starts?

A: Yes, significantly. Cold temperatures increase diesel viscosity, making it thicker and more resistant to splitting into a fine mist. A premium 0986441102 diesel component assembly compensates for this resistance through precision needle valve clearances that ensure crisp opening speeds, helping the system maintain atomization quality even during freezing cold starts.

Q5: How do remanufacturing facilities verify that the nozzle spray characteristics match original factory specifications?

A: Automated test benches use advanced optical or digital flow sensors to analyze the injection event in real time. These sensors measure the fuel delivery volume, track the exact shape and symmetry of the spray pattern, and monitor the response time of the needle valve, ensuring the replacement component performs exactly like a brand-new unit.
