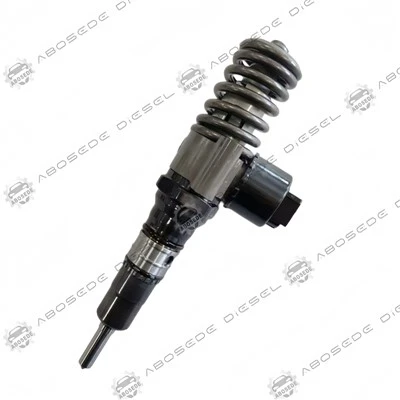

0414720085 Unit Injector – Product Page

Most injector discussions focus on the high‑pressure side – the compression, injection, and atomisation. But the return path – the fuel that spills back to the tank after injection – plays a surprisingly important role in injector performance. If the return fuel cannot flow freely, it builds backpressure. This backpressure opposes the solenoid valve opening, slows the pressure release, and heats the fuel that remains in the injector. The result is inconsistent injection quantities and increased thermal load on the injector components. The 0414720085 features a calibrated return orifice that maintains consistent backpressure while allowing the spent fuel to flow freely. This keeps the injector running cooler and ensures that the fuel properties remain stable, leading to more consistent injection and longer component life.

The 0414720085 is a direct replacement for unit injectors in:

Volkswagen 1.9 TDI – engine codes ATD, AXR, BEW, BKC, BLS, BXE, BJB, and BSW, used in Golf, Passat, Transporter, Caddy, and Polo models.

Audi 2.0 TDI – BKD, BMN, and BRE codes in A3, A4, and A6 models.

Seat and Škoda TDI – sharing the same PD engine architecture across the VAG group.

Light commercial vehicles – using VAG PD engine technology.

The injector uses a threaded mounting with a copper sealing washer at the nozzle end and an O‑ring on the upper body. The electrical connector is a 2‑pin VAG‑specific type.

To achieve the specified return performance, correct installation is essential:

Return line condition – The return hoses between injectors must be clean and free of blockages. Any restriction will increase backpressure and alter the injection characteristics. Replace the return hoses if they are more than 5 years old or show signs of cracking.

Return line connection – Ensure the return line from the final injector to the tank is not pinched or kinked. A restriction anywhere in the return path affects all injectors.

Return line diameter – The return hoses should have an internal diameter of at least 6 mm. Smaller hoses restrict flow and increase backpressure.

Copper washer – Always use a new copper sealing washer. A leaking washer allows fuel to escape, reducing the return flow to the tank and increasing backpressure.

Torque sequence – Tighten the injector hold‑down clamp to 20 Nm, then loosen and retighten to 7 Nm, then turn 1/4 turn. Over‑tightening can distort the return port, affecting the orifice calibration.

Priming – Pre‑fill the injector through the return port before installation. This ensures the return circuit is full of fuel, preventing air‑lock.

The 0414720085 is compatible with EN 590 diesel and B7/B10 blends. Fuel quality affects the return flow system through:

Viscosity – Higher viscosity (biodiesel, cold fuel) increases the resistance in the return lines, slightly raising backpressure. The effect is small – about 0.05 bar per 10°C drop.

Varnish deposits – Degraded fuel can deposit in the return orifice, reducing its diameter and increasing backpressure. Regular fuel filter changes help prevent this.

Water – Water content above 0.2% can cause corrosion in the return lines, creating restrictions that affect backpressure.

If you notice a change in the return backpressure, check the fuel filter and the return lines before suspecting the injector.

Under normal conditions, the 0414720085 provides 200,000–250,000 km of service. The return flow system is designed to last the life of the injector, but it can degrade:

Orifice erosion – Over time, the return orifice can erode, increasing its diameter. This reduces the backpressure, causing fuel to drain back to the tank when the engine is off, leading to longer cranking times.

Deposit build‑up – The orifice can become partially blocked, increasing backpressure and extending the injection duration.

The first signs of return flow degradation include:

Hard starting – fuel has drained back, requiring more cranking to prime.

Increased smoke – extended injection duration due to high backpressure.

Rough idle – inconsistent injection quantities due to varying backpressure.

When these symptoms appear, the injector is approaching the end of its service life.

Q1: The engine has difficulty starting after sitting overnight, but starts easily when warm – could the return system be the cause?
Yes. If the return backpressure is too low (due to an eroded orifice or a leaking return line), fuel will drain back to the tank overnight, and the system will lose its prime. The 0414720085's calibrated return orifice prevents this. Check the return lines for leaks first – a small leak in the return system can allow air to enter, causing the same symptom.

Q2: I replaced the injectors, but the engine now smokes at idle – is the return flow the cause?
If the return hoses are restricted or have an incorrect internal diameter, the backpressure will be too high, extending the injection duration and causing over‑fuelling. Check that the return hoses are clean and have the correct diameter. The 0414720085's return orifice is calibrated for standard VAG return lines – any modification may affect performance.

Q3: How can I check the return backpressure?
You can install a pressure gauge in the return line close to the cylinder head. At idle, the backpressure should be 0.3–0.5 bar. If it is significantly higher, there is a restriction in the return system. If it is lower, there may be a leak in the return circuit.

Q4: Does the return flow affect fuel economy?
Yes, indirectly. If the return flow is restricted, the backpressure increases, extending the injection duration and causing over‑fuelling. This increases fuel consumption. If the return flow is too low, the fuel temperature in the injector rises, reducing viscosity and increasing leakage, which also increases consumption. The 0414720085's calibrated return flow minimises these effects.

Q5: Can I clean a blocked return orifice?
The return orifice is a precision‑machined component and cannot be cleaned without changing its calibration. If you suspect a blockage, replace the injector – attempting to clean the orifice will alter its size and affect the backpressure.

Q6: Does the return flow vary with engine speed?
Yes, at higher speeds, the injection frequency increases, so the return flow rate also increases. The 0414720085's return orifice is sized to handle the increased flow at high RPM without excessive backpressure. The backpressure will rise slightly but should remain within specification.
