0414700009 Iveco Daily High-Mileage Fleet Restoration: Overcoming Late-Stage Fuel System Decay

For inner-city logistics vans and remote engineering service vehicles, the true unit of business cost isn't measured in miles-it is tracked in engine operational hours. When an Iveco Daily commercial fleet crosses the high-mileage threshold, the daily demands of stop-and-go urban deliveries or heavy payload tool transport expose hidden mechanical vulnerabilities.

Among these, the gradual degradation of the high-pressure fuel infrastructure is the most critical. When vehicles depend on the 0414700009 fuel system injector to maintain precise combustion, addressing late-stage component wear early is vital. If ignored, it transforms an asset into an unpredictable operational risk.

When a commercial van passes several hundred thousand miles of constant thermal cycling and heavy payloads, the internal fuel system environment shifts. Let's chart the progressive failure loop that affects the 0414700009 diesel fuel components in service vehicles.

📉 Micro-Erosion and Structural Injector Aging

Inside the heavy-duty injector body, moving metallic parts interact under pressures exceeding 20,000 psi. Over time, microscopic abrasive particulates present in commercial diesel fuel work like a grinding compound. This action erodes the control valve seats and widens the precision-drilled nozzle spray orifices. This structural aging disrupts the finely tuned atomization pattern, causing fuel to enter the cylinder as large droplets rather than a fine mist.

🔄 Excessive Return Flow (The Pressure Thief)

As the clearances between the internal control plunger and the component casing expand due to mechanical wear, high-pressure fuel begins taking the path of least resistance. Instead of being forced through the nozzle tip into the combustion chamber, an increasing volume of diesel slips backward into the return line. This excessive return flow starves the fuel rail of required operational pressure. It forces the high-pressure pump to work harder, generating extra heat and shortening the lifespan of the entire fuel architecture.

❄️ Hard Starting and Cranking Delays

The first definitive symptom fleet drivers note on high-mileage vehicles is an elongated cranking cycle during morning start-ups or hot restarts. To trigger an initial combustion event, the engine control unit requires the fuel system to hit a specific minimum pressure threshold almost instantly. When worn internals let fuel bypass directly into the return system, the starter motor must crank the engine repeatedly just to build adequate rail pressure, draining the battery and wearing out starter teeth.

The 0414700009 common rail injector is built to withstand demanding operational conditions, supporting the high-torque, frequent-stop duty cycles of light commercial platforms.

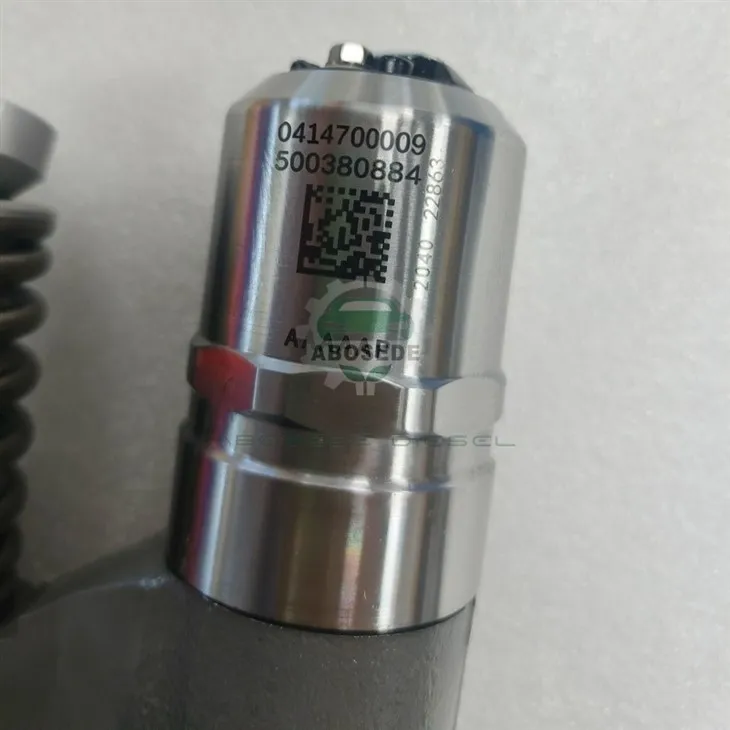

Primary Sku Identifier: 0414700009 / 0414 700 009

Core Vehicle Platform: Iveco Daily / Scudato / Urban Bus

Associated Engine Code: 8140.43S / Sofim Series

Displacement Profile: 2.8 HPi / 2.8 CRDI Heavy Duty

Fleet Service Role: Last-Mile Logistics & Maintenance

Q1: Why do last-mile logistics vans experience faster injector aging compared to long-haul transport trucks?

A: Long-haul trucks run for hours at stable highway speeds, keeping temperatures steady and fuel demand uniform. Last-mile logistics vans experience continuous heat spikes, frequent engine shut-offs, and extended idling periods. These stop-and-go cycles accelerate carbon deposition on the nozzle tips and increase mechanical wear on the internal return valves.

Q2: My engineering service van passes a cold start fine but takes a long time to start when the engine is hot. Is this an injector issue?

A: Yes, this is a classic indicator of internal fuel system wear. When diesel fuel warms up, its viscosity drops and it becomes thinner. For an aging 0414700009 commercial vehicle injector, this thinner fuel leaks past worn internal valve seats much faster. This internal leakage prevents the system from building adequate starting pressure until the engine turns over long enough to compensate for the fluid loss.

Q3: Can updating my fleet's fuel filtration interval stop return flow issues on high-mileage Sofim engines?

A: Upgrading your filters won't repair internal clearances that have already worn down, but it is the best way to protect new or refurbished parts. Standard commercial filters often let micro-particles through. Switching to a premium multi-stage water separator catches these contaminants before they can scour injector control seats, preventing early pressure loss.

Q4: How does a worn injector nozzle cause my delivery van to blow gray or black smoke during heavy acceleration?

A: When the internal needle valve or nozzle orifices wear out, the injector loses its ability to atomize fuel properly. Instead of a fine, clean-burning mist, the unit squirts solid stream lines of diesel into the cylinder. Because there isn't enough oxygen to burn these concentrated fluid pockets completely, the unburnt fuel passes into the exhaust as thick gray or black smoke.

Q5: Should high-mileage fleet operators replace the copper sealing washers every time an injector is inspected?

A: Yes, replacing the copper crush washers is mandatory during any service intervention. These washers act as a physical thermal barrier between the combustion chamber and the cylinder head cylinder bank. Reusing an old hardened washer allows combustion gases to blow past the injector body, causing carbon build-up that locks the component in place and causes head damage.
