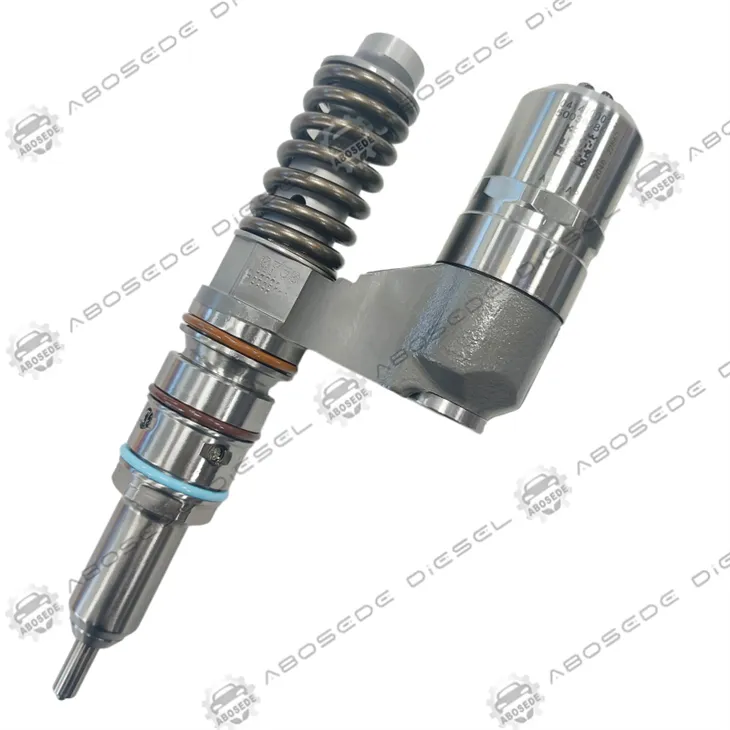

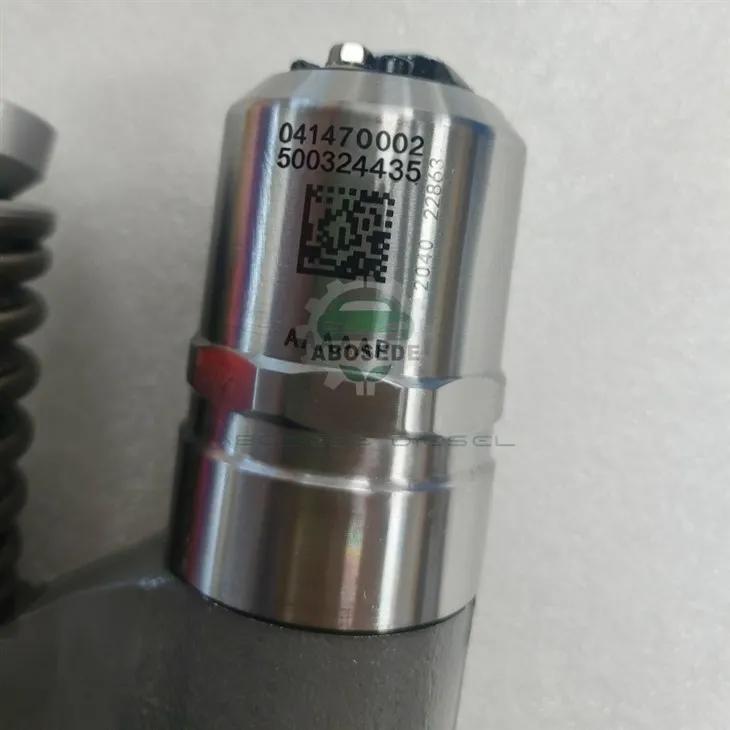

0414700002 500324435 Electronic Unit Injector: Advanced Hydraulic Stabilization For Chronic Cold Start And Cranking Faults

For workshop technicians and fleet supervisors, few field issues are as disruptive as a commercial vehicle that refuses to fire up during first-turn morning operations. When an automotive diagnostic scanner flags repeated engine-cranking anomalies on logistics vehicles, operators typically trace a predictable path of frustration through three progressive operational hurdles:

⚠️ Cold Start Hesitation: The internal combustion engine rolls over repeatedly but fails to achieve self-sustained ignition under low ambient temperatures.

⚠️ Long Cranking Cycles: The electrical starter motor is forced to run for 10 to 15 seconds before the high-pressure fuel block registers adequate fire-up pressure.

⚠️ Rough Idle After Start: Once the vehicle finally combusts, the engine stumbles, vibrates excessively, and produces thick white or grey exhaust vapor until thermal normalization is achieved.

While these symptoms often prompt unneeded replacements of starter batteries or glow plugs, the structural root cause frequently lies deep within the internal seals of the high-pressure fuel metering unit. The premium 0414700002 500324435 Injector is precision-calibrated to eradicate these exact mechanical failure points, restoring instantaneous pressure accumulation and crisp ignition transitions within commercial diesel networks.

To understand why a commercial diesel engine stumbles during a cold morning start, one must analyze the hydraulic pressure retention of the common rail or unit injection system. When a heavy-duty engine rests overnight, a microscopically worn control valve seat inside the injector allows high-pressure residual fuel to bypass the seal, slipping silently into the fuel return line. Consequently, during a subsequent cold startup event, the mechanical fuel pump must spin extensively just to re-prime the internal chambers-manifesting as a stressful, resource-draining long cranking loop.

Simultaneously, if the internal return-flow rate is skewed, the fuel injector needle cannot snap open with sufficient microsecond speed or hydrodynamic force. This operational lag drops injection velocity, transforming what should be a razor-sharp, atomized fuel mist into coarse, heavy diesel droplets. Because the cold compressed air inside a resting cylinder cannot readily ignite poorly atomized liquid, the vehicle suffers localized cylinder misfires, leading to the violent engine shaking characteristic of a severe rough idle after start condition. Re-establishing strict control over nozzle spray geometries and eliminating excessive fluid back-leakage is the only path to a lasting repair.

The 0414700002 500324435 assembly is built out of robust tool steel compounds to withstand extreme structural vibrations and chemical breakdown from low-lubricity fuels. It provides direct drop-in integration for professional fleet applications.

Installing the premium 0414700002 unit delivers immediate operational stability across mixed transport setups. By sealing off the excessive internal return-flow pathways, this injector guarantees that fuel pressure rises instantly upon the very first compression stroke, effectively neutralizing cold start issues. Furthermore, the micro-engineered nozzle profile guarantees that fuel particles are broken down into sub-micron dimensions, encouraging clean, immediate ignition that irons out rough idling, lowers starter motor wear, and slashes white smoke emissions during early morning startups.

Q1: Why does a high back-leakage rate in the 0414700002 injector directly cause a long cranking condition?

A: Electronic unit injection systems rely on rapid pressure development to meet ignition thresholds. When internal control valve seats are worn, fuel leaks out through the return circuit instead of staying compressed. The starter motor must turn the engine over for a longer period to overcome this constant pressure loss, resulting in extended cranking times.

Q2: Can a vehicle pass a warm-engine scan test but still suffer from severe cold start hesitation?

A: Yes. When an engine is hot, fuel viscosity decreases and thermal energy inside the cylinders helps ignite imperfectly atomized fuel. However, when the engine drops to ambient temperature, the lack of heat combined with poor atomization from a worn 500324435 nozzle prevents proper combustion, causing cold start failures despite positive warm-engine readouts.

Q3: What role does the internal nozzle needle spring play in correcting a rough idle after start?

A: The nozzle spring ensures sharp, decisive needle closing at the end of each injection cycle. If this spring loses tension or if the needle sticks slightly, fuel dribbles into the cylinder instead of atomizing clean. This unburned fuel causes cylinder imbalance, misfires, and a rough, shaking idle immediately after ignition.

Q4: Are specialized tools required to diagnose if a 500324435 injector is causing fuel-system pressure bleed?

A: Yes. Technicians should use a dedicated flow meter or common rail test bench to measure return-line volume during cranking. If the return fluid volume exceeds factory specifications, it confirms that the internal metering components are failing to hold pressure and require replacement.

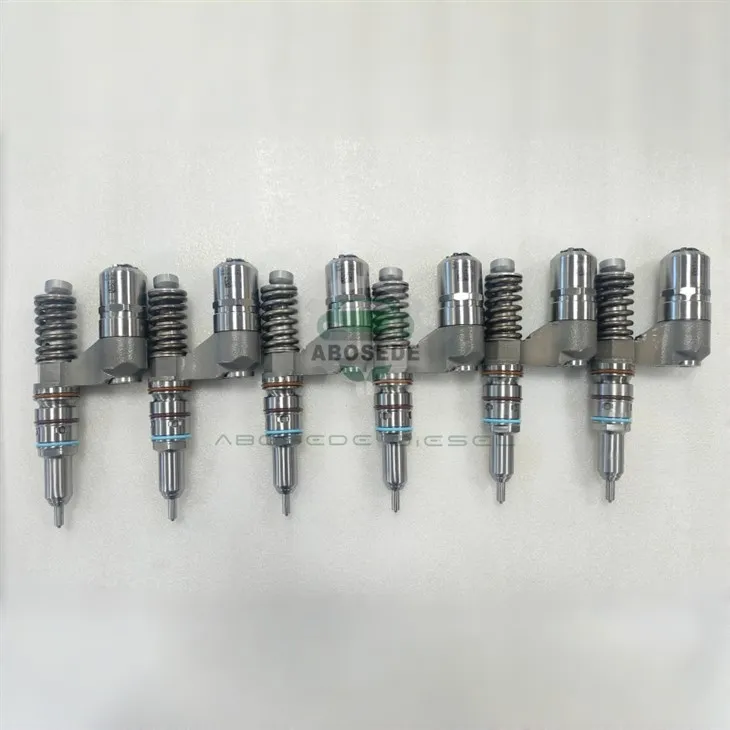

Q5: How does replacing a single worn unit injector impact overall balance across a four-cylinder block?

A: While replacing one failed unit will restore that specific cylinder's combustion, old remaining injectors may still exhibit moderate wear. For commercial fleet operations, replacing injectors in matched sets ensures uniform cylinder contribution, balanced power delivery, and optimal fuel economy across the entire engine cycle.
