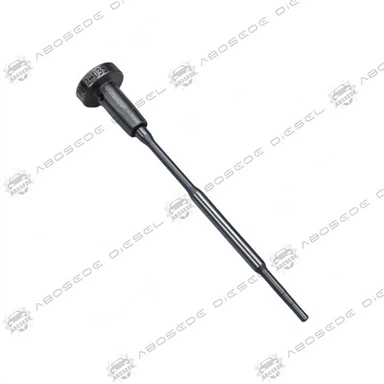

BOSCH F00VC01363 High-Precision Common Rail Injector Valve - Brand New

The Bosch F00VC01363 common rail control valve is an advanced fuel pressure regulation component specifically designed for modern high-speed diesel engines. Built with high-density alloy steel, its core body undergoes sub-zero cryogenic treatment and precision grinding to enhance fatigue resistance and dimensional stability. Its ultra-smooth surface finish, combined with a hard chrome-plated structure, reduces internal friction, ensuring rapid response and extended durability under extreme pressure cycles.

Equipped with an intelligent electromagnetic actuation mechanism, the valve achieves high-frequency switching with sub-millisecond responsiveness. It features a highly integrated flow control chamber and refined valve needle geometry that minimize pressure lag and ensure stable flow regulation across a wide operating range. The F00VC01363 utilizes advanced finite element analysis and flow dynamics simulation during design to reduce internal turbulence and fuel cavitation, promoting cleaner injection cycles and longer injector life. Its robust sealing performance ensures a static leakage rate of less than 0.7ml/min even under 2500bar operating conditions, meeting and exceeding current Tier 4 and Euro VI emission support requirements.

Each unit undergoes rigorous multi-phase bench testing, including full-load pulse stress testing, magnetic field alignment validation, and 72-hour thermal aging simulation to ensure zero-defect performance. The F00VC01363 is manufactured to support intelligent diagnostics through ECU integration and is compatible with both low- and high-voltage common rail platforms, making it ideal for variable-speed diesel applications in trucks, construction machinery, and agricultural vehicles.

• FOOVC01363 for BOSCH 0445B76 injector
• FOOVC01363 for BOSCH 0445110741 injector
• FOOVC01363 for Yuchai YC6L 8.4L engine
• FOOVC01363 for FAWDE CA6DL series engine
• FOOVC01363 for BOSCH 0445110370 injector

This valve's competitive edge lies in its precision-engineered actuator coil and proprietary fluid chamber design, enabling rapid adaptation to transient load demands with up to 35% faster pressure regulation than previous-generation valves. Its high electromagnetic sensitivity ensures accurate modulation even at low RPMs, significantly reducing fuel consumption and emissions during idling and light-load operations. Additionally, its dual-layer anti-corrosion coating and thermal compensation mechanism allow reliable operation in harsh environments, from cold-start conditions in alpine zones to continuous heat exposure in desert climates.

To ensure optimal function and service life, installation of the Bosch F00VC01363 must follow standard common rail protocols. Begin by verifying coil resistance (target value: 3.2Ω ±5%) and insulation performance (>100MΩ @ 500VDC). Clean the valve mounting seat using industrial alcohol and a non-metallic brush, and confirm surface roughness below Ra0.8 to ensure full sealing contact. Tightening should follow a torque-step sequence: start with 12N·m, then apply a final torque of 28N·m using a diagonal pattern to avoid distortion.

Post-installation system initialization should include electronic valve learning via diagnostic software, pressure calibration at multiple target points (typically 800, 1600, and 2400 bar), and low-pressure loop de-aeration to eliminate trapped air. Maintenance every 50,000 kilometers is recommended, including waveform diagnostics on coil signal stability, pressure consistency validation under load, and microscopic wear inspection on related injector components. Use only EN590-compliant ultra-low sulfur diesel, and replace high-precision filters every 20,000 km or 6 months to protect the fuel system from particulate contamination. In colder climates, preheating the valve to above 35°C before cold starts significantly reduces viscosity-related delays.
