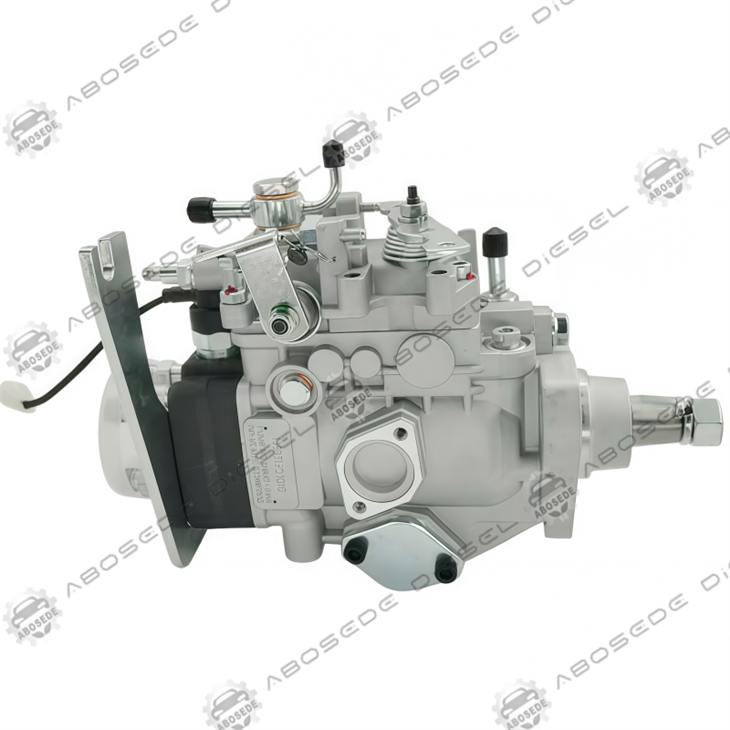

Navigating The Evolution Of Diesel Power: The 104642-7401 (R2552) VE-Type Injection Pump

The global diesel landscape is often divided into two eras: the mechanical mastery of the past and the digital precision of the future. The 104642-7401 (R2552) VE Pump stands as a sophisticated bridge between these worlds. While modern Common Rail (CR) systems dominate today's headlines, the VE-type distributor pump remains the "soul" of millions of light-to-medium duty diesel engines, particularly those found in legendary off-road vehicles and industrial machinery. Engineered with a single-plunger architecture, the 104642-7401 offers a unique blend of mechanical reliability and a pressurized responsiveness that laid the groundwork for the high-pressure fuel delivery we see in today's CR systems.





The "VE" in 104642-7401 stands for Verteiler (German for distributor). Unlike inline pumps that use a separate plunger for each cylinder, this unit utilizes a single rotating plunger to service all injectors. This design is crucial for several reasons:

Synchronized Pressurization: Since one plunger does all the work, every cylinder receives an identical fuel volume, ensuring a balanced engine harmonic.

Integrated Governor Logic: The R2552 series incorporates a mechanical governor that adjusts fuel delivery based on load and RPM-a precursor to the electronic logic used in modern Common Rail pressure regulators.

Compact Footprint: By consolidating the pumping and distributing functions, the 104642-7401 fits into tight engine bays where space is a premium.





Understanding the 104642-7401 requires a deep dive into its mechanical tolerances. This pump is a high-precision instrument where clearances are measured in microns.

Attribute	Specification Detail
Model Code	104642-7401 / R2552 Series
Pump Type	Distributor-type Axial Plunger
Fuel Feed	Internal Vane-type Transfer Pump
Timing Control	Automatic Hydraulic Timing Advance
Governor Type	Mechanical Variable Speed
Application Suitability	4-Cylinder Turbocharged & Naturally Aspirated Engines





While the 104642-7401 is a mechanical marvel, it is the direct ancestor of Common Rail (CR) components. Modern technicians often view the VE pump as a "mechanical ECU." The high-pressure chamber within the R2552 mimics the function of a modern rail by maintaining a pressurized state before distribution.

In many hybrid fleets, the 104642-7401 is favored for its resilience against varied fuel qualities. Unlike modern CR injectors that may fail instantly with minor contamination, the robust metallurgy of the R2552 allows it to operate in remote regions where ultra-low sulfur diesel (ULSD) isn't always up to standard.





The 104642-7401 features a hydraulic timer that advances injection timing as the engine speeds up. This is critical for maintaining volumetric efficiency.

Cold Start Capability: Integrated wax-element or manual cold-start devices enrich the mixture for reliable ignition in sub-zero temperatures.

Durability Profile: The pump housing is cast from high-strength aluminum, while the internals utilize vacuum-hardened steel to resist the friction of 400+ Bar internal pressures.





Q1: How does the 104642-7401 handle the transition to modern Bio-Diesel?

The R2552 is remarkably adaptable. However, because Bio-Diesel has higher solvent properties, it is essential to monitor the internal rubber O-rings. If switching to high Bio-blends (B20+), consider upgrading the seals to Viton to prevent "weeping" at the pump head.

Q2: What is the most common symptom of a failing "Fuel Shut-off Solenoid" on this model?

If your engine turns over but refuses to fire-or if it won't stop running after you turn off the key-the solenoid atop the 104642-7401 is likely sticking. This is an electronic bridge on an otherwise mechanical pump and is easily replaced without a full pump rebuild.

Q3: Is the 104642-7401 compatible with high-pressure Common Rail diagnostic tools?

Generally, no. Since this is a mechanical pump, diagnostics rely on manual timing gauges and "pop-testing" the injectors. You don't need a laptop; you need a dial indicator to set the plunger lift at Top Dead Center (TDC).

Q4: Can this pump be "tuned" for higher horsepower?

Yes. By adjusting the "Fuel Pin" (boost compensator) and the maximum speed screw, the 104642-7401 can deliver significantly more fuel for modified engines. However, this must be balanced with EGT (Exhaust Gas Temperature) monitoring to prevent turbo damage.

Q5: Why is air-bleeding more critical on the R2552 compared to CR systems?

Modern Common Rail systems are often self-priming via electric lift pumps. The 104642-7401 relies on its internal vane pump. If air enters the system (e.g., running out of fuel), it can become "air-locked," requiring manual priming at the injector nuts to restore the hydraulic link.
