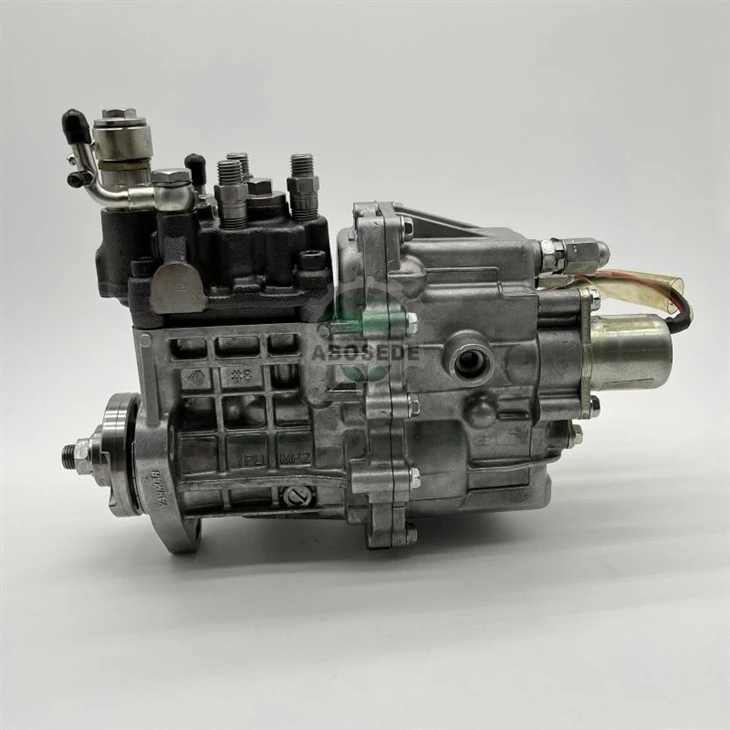

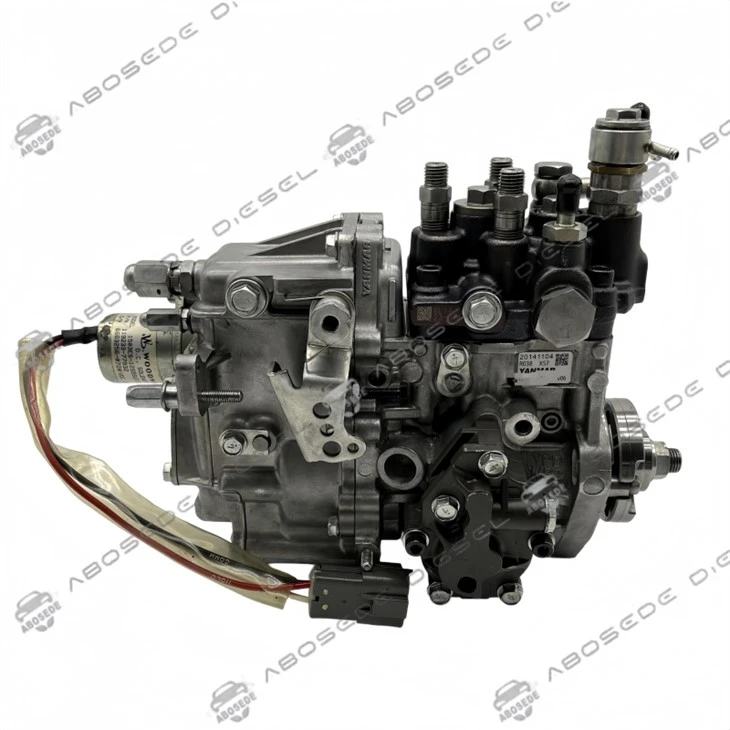

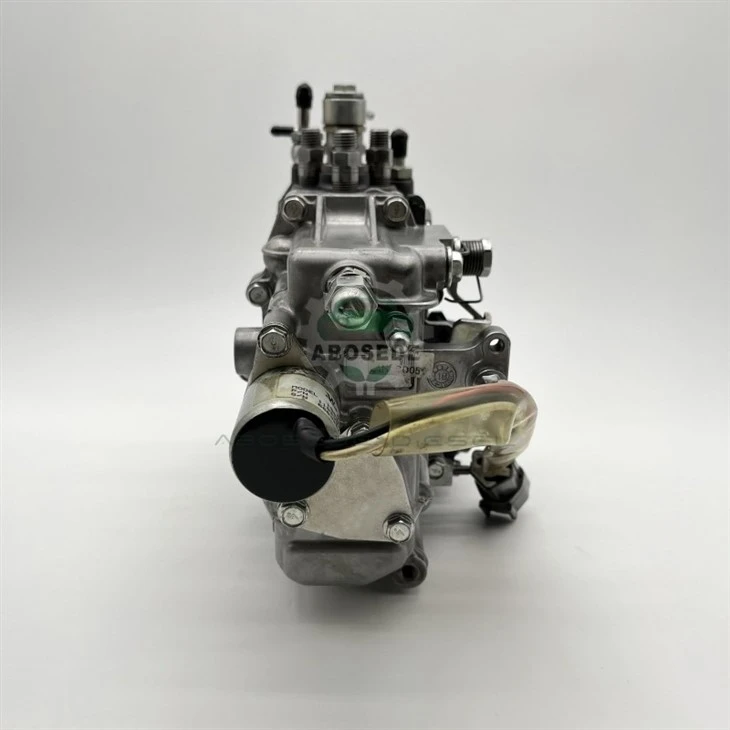

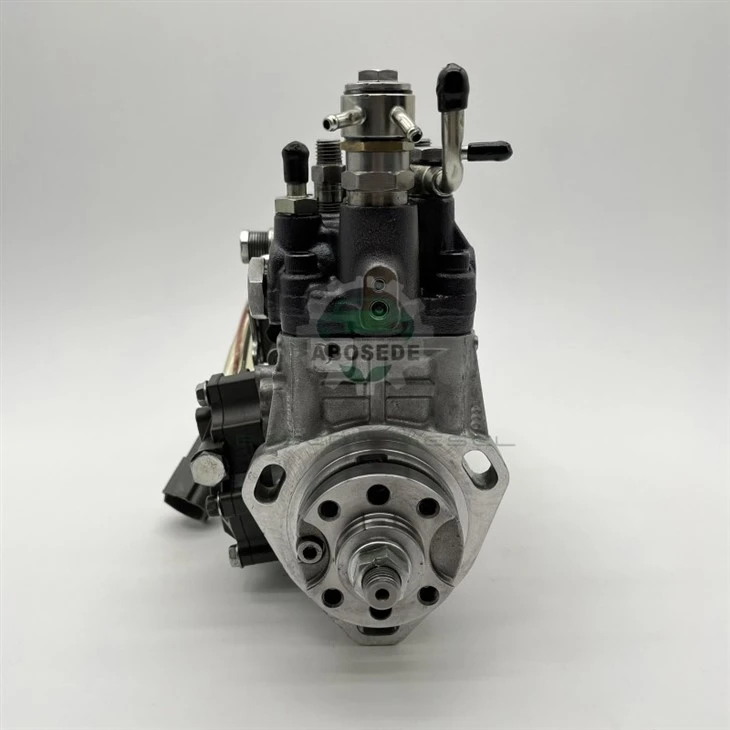

729236-51570 | Yanmar 3TNV Series Common Rail Injection Pump

This high-pressure diesel injection pump serves as the metering core for Yanmar's 3TNV82, 3TNV84, 3TNV86, and 3TNV88-X3 engine platforms, delivering electronically governed fuel delivery for compact excavators, agricultural equipment, and industrial generator sets. Unlike mechanical alternatives, the 729236-51570 integrates hydraulic piston actuation with ECU-driven calibration to maintain rail pressure stability under varying load and altitude conditions, a critical requirement for Tier 4 Final and EU Stage V compliance in off-road machinery.

The following parameters define the pump's operating envelope and must be matched against the engine's service identification plate before ordering. Rotation is clockwise as viewed from the drive end, consistent with Yanmar's standard 3TNV accessory configuration.

This pump is factory-calibrated for Yanmar's three-cylinder industrial diesel family, which powers compact construction and ag equipment where fuel metering precision directly affects hydraulic response and load recovery. Typical host machines include Yanmar ViO-series mini excavators, John Deere-branded compact units sharing the 3TNV platform, agricultural combines requiring stable PTO output, and stationary generator sets where governor hunting would cause frequency fluctuation. Diesel parts distributors serving the compact equipment aftermarket should note that the 3TNV88-X3 variant carries the tightest calibration tolerance among the four listed displacements, and mismatched pump-to-engine pairing will trigger derate codes within the first operating hour.

Timing synchronization is the single most consequential step during replacement. The pump drive must be aligned to cylinder one top dead center before the mounting flange is torqued; a deviation of even one tooth produces hard-start complaints or a no-start condition that technicians often misattribute to the pump itself. Fuel system cleanliness cannot be overstated-any particulate ingress at the high-pressure outlet will migrate directly to the injectors and cause nozzle erosion. Bench-priming the low-pressure side with a hand pump until bubble-free return flow is observed prevents dry cranking and extends camshaft and tappet life. The overflow valve and return line must be verified clear before first start; a restricted return path destabilizes gallery pressure and mimics pump failure symptoms.

In the diesel common rail repair trade, the 729236-51570 occupies a diagnostic middle ground: it fails less catastrophically than CP4-style pumps but is frequently misdiagnosed when symptoms overlap with injector degradation or air ingress. Independent workshops should resist the reflex to condemn the pump when a 3TNV exhibits rough idle or black smoke-clogged fuel filters, weak lift pump supply, and sticking injectors produce identical complaints at a fraction of the replacement cost. When pump replacement is genuinely indicated, however, the electronic governor eliminates the manual rack adjustment and linkage wear that plague mechanical 3TNV pumps, reducing comebacks and calibration labor. For wholesale distributors, stocking this unit alongside the matching injector set and a fresh high-pressure line kit converts a single repair order into a complete fuel system refresh, improving margin per transaction while reducing the risk of contaminated debris from old lines reaching the new pump.

Q1: Will this pump require ECU reprogramming after installation?
A: No. The 729236-51570 is calibrated to the stock Yanmar ECU strategy for the listed 3TNV variants. Adaptation resets are not required, but the pump must be timed correctly before the first crank.

Q2: Can I install this on a 3TNV88 that originally had a mechanical pump?
A: No. The electronic governor requires the corresponding ECU harness and sensors. Mechanical-to-electronic conversion involves far more than the pump itself and is not a supported swap.

Q3: What causes repeat pump failure within 6 months?
A: Nearly all early failures trace to contaminated fuel or a neglected lift pump. If the tank or filter housing shows rust or water, flush the system before fitting a replacement-otherwise the new unit inherits the same abrasive load.

Q4: Do you supply the mounting gasket and drive key with the pump?
A: The pump ships bare. Gaskets, O-rings, and the drive key are ordered separately; wholesalers should bundle these for workshop customers to reduce installation delays.

Q5: How do I distinguish pump failure from injector bleed-off on a 3TNV?
A: Perform a return-flow test at the injectors first. If return volume exceeds specification, injectors are the likely culprit. Pump replacement should be the final step after fuel supply and injector testing are ruled out.

Q6: What is the core return policy for wholesale accounts?
A: Core acceptance requires the pump to be complete and uncracked. Units with broken mounting ears or opened governor housings are declined. Prepaid return labels are issued with qualifying bulk orders.
