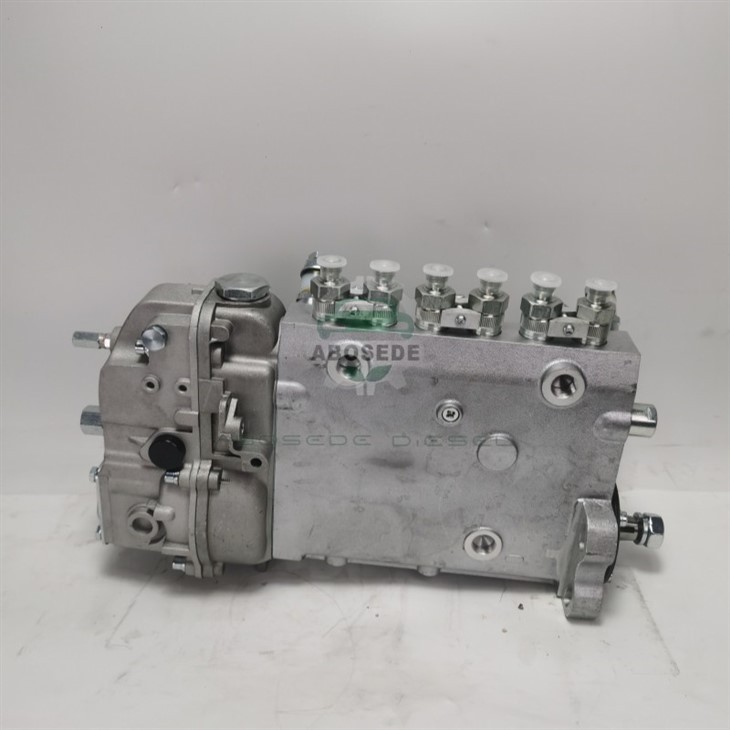

32B65-35040/092000-06838 DENSO Fuel Injection Pump

This high-pressure fuel injection pump, bearing the OEM part numbers 32B65-35040 and 092000-06838, is a critical component engineered for Komatsu construction machinery equipped with heavy-duty 6-cylinder diesel engines. Operating at pressures up to 1,800 Bar, this DENSO-spec inline plunger pump delivers precisely metered fuel to the injectors based on ECU commands, directly governing engine output, thermal efficiency, and emissions compliance. This pump is not a universal aftermarket substitute; it is a precision component designed specifically for demanding earthmoving applications where reliability is non-negotiable .

The 092000-06838 pump features an inline plunger configuration with a plunger diameter typically ranging between 8–10mm, machined to a tolerance of ≤0.001mm for a matched pair fit. This design utilizes an electro-mechanical governor and a mechanical centrifugal timing advancer that automatically advances injection timing relative to engine RPM, stabilizing idle speed while limiting overspeed conditions. The unit operates with a peak working pressure of 1,500 Bar, necessitating reinforced high-pressure delivery lines to handle the stress. Standard firing order is 1-5-3-6-2-4, with fixed camshaft phasing that must not be altered during service. The system integrates critical subcomponents including the delivery valve (preventing fuel backflow and secondary injection), the fuel control rack (adjusting volume via throttle linkage), and the PCV valve, which manages fuel quantity entering the compression chamber based on duty cycle signals from the ECU .

This specific model is designated for mid-to-large construction equipment, primarily serving as a Komatsu Genuine Parts number. The primary machinery fitments include the Komatsu PC200-6/7/8, PC220-7 excavators, and WA380-5/6, WA450-6 wheel loaders. Engine compatibility covers the SAA6D107E, S6D114E, and SAA6D140E power plants. Critical warning: Interchangeability between sub-models is not guaranteed; always verify compatibility by cross-referencing the machine's serial number against Komatsu's service bulletins. This pump is specifically calibrated for these high-inertia applications and is not to be confused with automotive or light-duty industrial variants .

In the workshop, this component is often the root cause of common rail system failures. Technicians frequently diagnose hard starting or white/blue smoke as plunger wear, while RPM fluctuations often indicate governor spring fatigue. A critical diagnostic method involves checking the fuel return flow; if the PCV valve or delivery valve is compromised, the pump cannot build rail pressure. In many heavy-duty field cases, if rail pressure fails to exceed 1,000 Bar or drops significantly during load, this pump is the culprit. Proper valve adjustment and replacing the fuel filter every 500 hours significantly extend its service life, preventing failures often misattributed to injectors. Workshop evidence suggests that while some field repairs are attempted, professional reconditioning is essential due to the precision of the timing advancer and plunger pairs .

Q1: I have a Komatsu PC200-8; can I directly install this 32B65-35040 pump?
A: Not without verification. While the 092000-06838 fits the PC200-6/7, the PC200-8 may require specific ECU mapping and fuel delivery curves. Always compare your engine serial number and ECU software version with Komatsu's parts catalog to confirm compatibility before ordering .

Q2: The engine cranks but won't start, and the pressure reads 0 Bar. Is this pump bad?
A: Likely. If the suction control valve (SCV) is functioning, 0 Bar generally indicates the gear pump has lost prime or the plunger assembly is seized. First, bleed the low-pressure circuit and check if the gear pump is receiving oil; if the pump still won't produce pressure, it requires immediate service or replacement .

Q3: How long does this injection pump typically last in mining duty cycles?
A: Service life is directly tied to fuel quality. With proper API CF-4+ fuel and regular filter changes (every 500 hours), these pumps can exceed 8,000-10,000 hours. However, water contamination exceeding 0.05% rapidly accelerates plunger corrosion, significantly reducing lifespan to under 3,000 hours .

Q4: Is an overhaul kit available, or should we only replace the unit?
A: Overhaul kits are available and effective if the plunger and barrel are within tolerance. However, given the extreme precision required, most professional workshops prefer factory-exchange units. If rebuilding, ensure calibration is performed on a test bench and all FKM seals are replaced to prevent secondary failures .

Q5: Why does the pump supply pressure drop drastically when the engine is hot?
A: This suggests internal leakage. As the pump body heats up, the viscosity of the fuel changes. If the plunger pairs or delivery valves are worn, hot fuel bypasses the compression chamber, leading to a rapid pressure drop-a classic symptom of plunger wear rather than injector failure .
