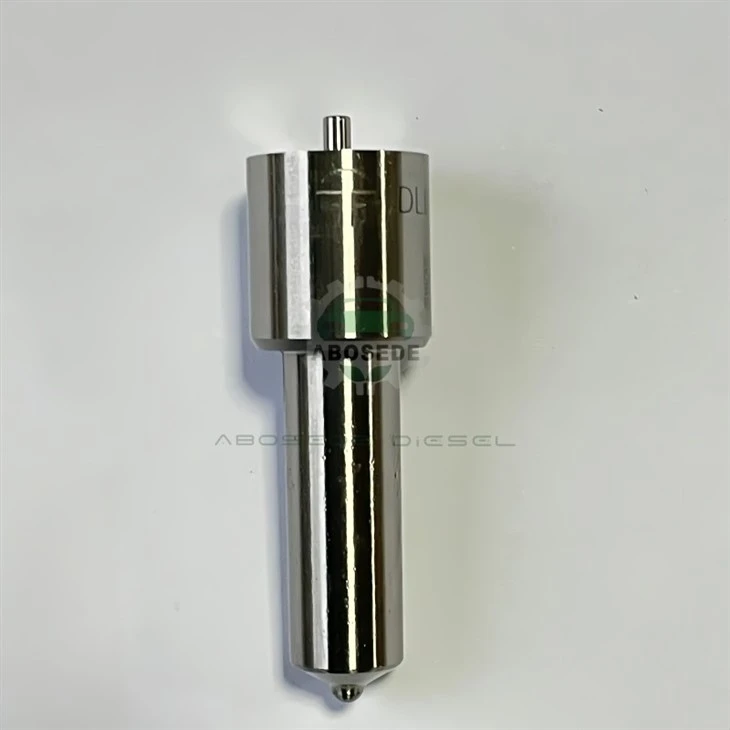

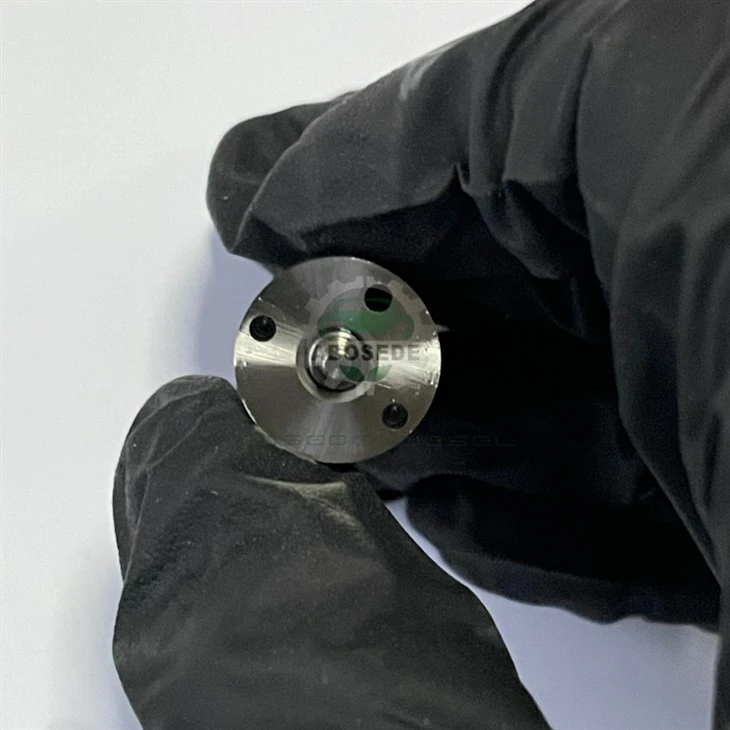

DLLA158P1092 Common Rail Nozzle For Isuzu 4HK1 6HK1

When a 4HK1 comes in with a dead miss on cylinder three and the scan tool shows no electrical fault, the nozzle is usually where the diagnosis lands. The DLLA158P1092 is the Denso nozzle that sits inside the 095000-636# and 095000-893# injector bodies used across Isuzu's 5.2L and 7.8L common rail platforms. It is not a universal fit-the 158° spray cone and the G2 Series 4.0 needle geometry are calibrated for the bowl shape and swirl characteristics of the 4HK1/6HK1 combustion chamber, which is why swapping in a visually similar nozzle from another Denso family produces smoke and poor cold-start behavior that no amount of ECM trimming can correct.

Most catalog listings stop at "Isuzu 4HK1," but the real stocking demand comes from the fact that this same nozzle appears in Hitachi ZX200-3 and ZX240-3 excavators running the 4HK1 powerplant, as well as Isuzu N-Series and F-Series commercial trucks. A distributor serving mixed fleets will see the DLLA158P1092 pulled for both a 2010 NPR delivery truck and a tracked excavator in the same week. The 6HK1 7.8L variant uses the same nozzle family in certain injector body configurations, which means one nozzle SKU can cover two engine displacements-but only if the counter staff verify the injector body number, not just the engine model.

The most expensive mistake a shop can make with this nozzle is treating it as a drop-in part. Isuzu's 4HK1/6HK1 ECM relies on a 24-character injector ID code laser-marked on the injector body; after any nozzle replacement or injector swap, that code must be written into the ECM via IDSS or a capable aftermarket scan tool. Skip this step and the engine will idle rough enough that the customer assumes the nozzle itself is defective. Equally important: the fuel injection pipe and its gaskets are single-use items on these engines-reusing the high-pressure pipe after injector removal is a documented path to compression leakage and repeat repair. Torque the injector clamp bolts to spec with molybdenum disulfide on the threads for 2011-and-newer applications, and rotate the injector body gently before final tightening to confirm the clamp is not binding the injector.

A remanufactured 4HK1 injector assembly runs several hundred dollars per hole; the DLLA158P1092 nozzle costs a fraction of that and addresses the wear surface that actually degrades first. The needle and seat erode from abrasive contaminants and cavitation long before the solenoid or control valve fails. For a shop with a bench and a tester, replacing the nozzle, cleaning the body, and re-certifying the assembly restores spray quality at a labor-and-parts cost that keeps the repair profitable for the customer. For a distributor, the nozzle is a consumable that moves steadily because every high-mileage 4HK1 eventually needs four of them-not one.

Q1: A customer's injector body reads 095000-5340. Will this nozzle fit?
The 5340 body uses the same nozzle family, but confirm the original nozzle stamp before committing. The 534-series bodies have variants that take the 1092, while others in the same casting family use different flow codes. When in doubt, pull the old nozzle and read the laser etching.

Q2: The engine runs worse after nozzle replacement, even though the injector tested fine on the bench. Why?
The ECM is still trimming fuel based on the old injector's ID code. Program the new code before condemning the nozzle. On 4HK1 engines, the ID code correction points are extensive enough that an unprogrammed injector will produce a noticeable idle shake.

Q3: Do I need to replace the high-pressure fuel pipe when I pull an injector?
Yes. Isuzu's service documentation explicitly states that injection pipes, gaskets, and O-rings must not be reused. The pipe deforms at the sealing interface during torque-up; a second clamping cycle will not seal reliably against 2000 bar.

Q4: How do I know if a core injector is worth rebuilding with this nozzle?
Check the control valve back-leakage first. If return flow exceeds the Denso spec, the body is scrap regardless of how good the new nozzle is. A nozzle replacement on a body with a worn valve seat produces hard starting and a persistent rail pressure deviation code that no amount of coding will fix.

Q5: What is the realistic service life of this nozzle in a municipal fleet?
With clean fuel and adherence to filter intervals, 120,000 to 160,000 km is achievable in on-road N-Series trucks. Excavator applications run shorter cycles because of dust ingress and extended idle hours; pulling nozzles for inspection at 1,500 operating hours is a reasonable preventive interval for ZX200-3 units.
