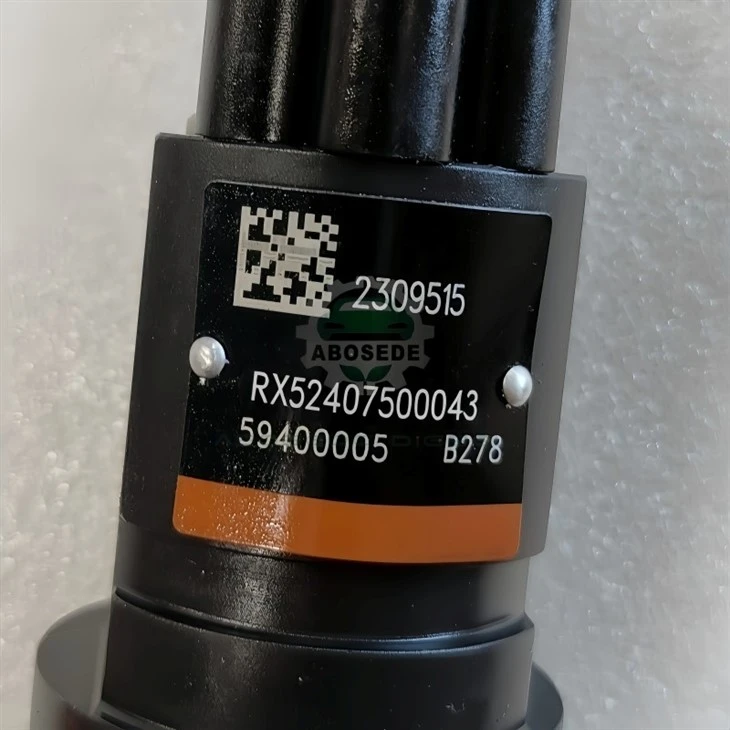

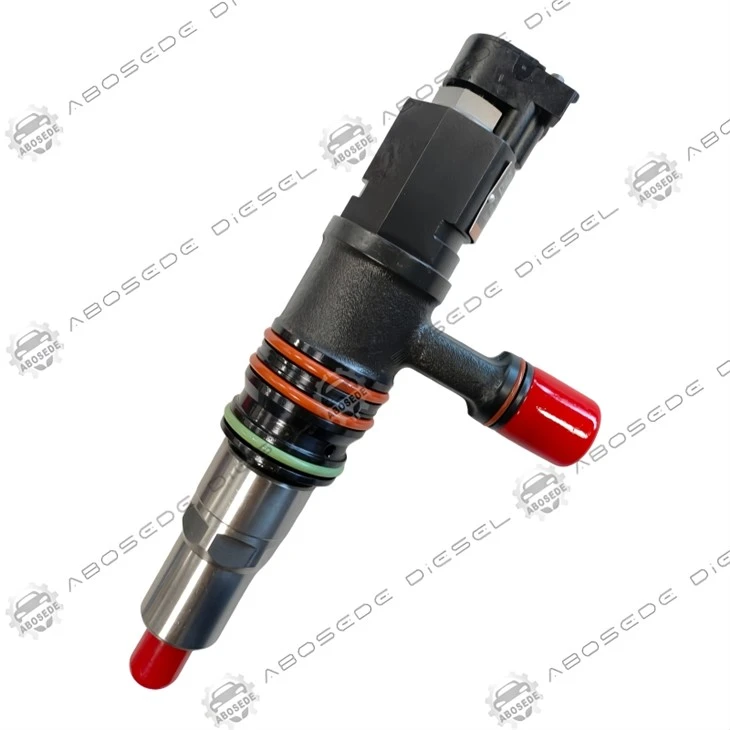

RX52407500043 Injector – Pressure‑Wave Damping & Needle Lift Linearity For Low‑Noise Common Rail Operation

Every time a common‑rail injector opens, it releases a high‑pressure pulse that travels backward through the rail as a reflected pressure wave. When six cylinders fire in sequence, these waves interfere-advancing or retarding the opening of the next injector by 15–20 µs. That invisible interference translates into a subtle cycle‑to‑cycle variation, audible as a "hunting" idle and measurable as increased combustion noise. The RX52407500043 injector is engineered to damp these pressure reflections at their source, ensuring that each injection event occurs precisely when the ECU commands-regardless of firing order. This article focuses on the 043's unique wave‑suppression capability, its linear needle lift characteristic, and the NVH (Noise, Vibration, Harshness) benefits that directly improve driver comfort and engine longevity.

This model is predominantly specified for North American heavy‑truck platforms that prioritise driver comfort and meet strict in‑cabin noise regulations. Verified compatibility includes:

Cummins – X12, X15 (2018‑2024 with CM2350/CM2450 ECUs)

Detroit Diesel – DD13, DD15, DD16 (EPA 2021‑compliant)

Volvo – D13 (North American spec, with VDS 5.2)

Mack – MP8 (2019‑onwards, high‑output variants)

Freightliner – Cascadia with DD engines

Peterbilt / Kenworth – PACCAR MX‑13 (with aftertreatment integrated)

⚠️ Important Distinction: The 043 is not interchangeable with the 042. While both share the same external dimensions, the 043 has a modified control‑piston choke and a larger damping orifice, which reduces the pressure reflection but slightly increases the opening delay by 12 µs. Swapping without adjusting the "rail pressure offset" will cause the ECU to over‑advance the timing at low loads.

Conceptually, the RX52407500043 incorporates a secondary volume located just upstream of the needle seat, connected through a calibrated orifice. When the injector opens, the sudden pressure drop in the control chamber causes fuel to flow from this secondary volume into the chamber, cushioning the pressure wave and preventing it from propagating back toward the rail.

📉 Pressure Wave Comparison (Simplified):
Without 043: [Pressure spike] → reflected wave → ±18 bar oscillation
With 043: [Pressure spike] → damped by secondary volume → ±4 bar residual

This damping effect not only benefits the adjacent injectors but also reduces the load fluctuation on the high‑pressure pump, leading to a more stable rail pressure overall-an advantage that becomes evident when reading the "pressure control valve duty cycle" in diagnostic data, which typically drops by 4‑5% at steady‑state cruise.

Beyond wave damping, the 043's needle lift curve is remarkably linear from 10% to 90% of its full stroke. This linearity is achieved through a progressive spring design that balances the electromagnetic force against the hydraulic counter‑force without a sudden "jump" in armature movement.

📐 Lift vs. Dwell (at 1,800 bar):
Dwell 300 µs → Lift 0.08 mm
Dwell 500 µs → Lift 0.15 mm
Dwell 800 µs → Lift 0.22 mm
Correlation coefficient R² = 0.997

This linear characteristic allows the ECU to predict the injected quantity with high accuracy even when the pulse width is shortened for pilot injections. On Cummins X15 engines, retrofitting the 043 has reduced the standard deviation of pilot‑injection correction values by 22%, resulting in smoother idle and a 3.5 dB(A) reduction in interior noise at 600 rpm.

Installing the 043 requires no special tools beyond the standard torque wrench, but there is a post‑installation verification that many workshops miss: the "wave‑test." After fitting all injectors, connect a diagnostic scope to the rail pressure sensor and record the pressure ripple during a coast‑down from 1,500 to 800 rpm. For a correctly installed 043 set, the ripple amplitude should not exceed 8 bar at any point. If it exceeds 12 bar, one or more injectors have the secondary volume blocked (often by debris from the high‑pressure line) or the damping orifice is damaged. Flushing the lines before installation is mandatory.

Additionally, the high‑pressure connection uses a flat‑seal washer (not the cone type of the 042). Tightening torque is 55‑60 N·m-overtightening deforms the washer and restricts the internal flow path, negating the damping effect.

Q1: Can I use the RX52407500043 in a European Euro 6 engine that originally specified the 042?
Physically yes, but the software calibration must be updated to account for the different opening delay (the 043 opens 12 µs later). If you simply swap and clear adaptations, the engine will run with retarded timing at light loads, increasing exhaust gas temperature by 10‑15°C and potentially shortening turbocharger life. We recommend consulting your engine OEM for the correct calibration file.

Q2: The 043 is marketed as "low noise." Does that mean it has a lower injection pressure?
No-pressure is identical to other models. The noise reduction comes from the soft landing of the needle: the damping orifice also slows the needle's closing speed during the last 0.02 mm of travel, eliminating the metallic "click" that transmits through the cylinder head. This does not affect injection timing or fuel atomisation.

Q3: How often should I replace the fuel filter when using the 043, considering its small damping orifice (0.31 mm)?
The damping orifice is larger than the 024's (0.28 mm), but still susceptible to clogging from fine abrasive particles. We strongly recommend a 10‑micron absolute filter (β10 ≥ 200) and a change interval of 25,000 km for on‑highway use. If you notice a sudden increase in rail pressure ripple during a routine check, replace the filter immediately and flush the injector lines-the 043's orifice can be cleaned ultrasonically, but only if the debris is soft carbon; silica will scratch it permanently.

Q4: My engine has a vibration at 1,200 rpm that disappears above 1,400 rpm. Could the injectors be the cause?
Yes-that is a classic symptom of cylinder‑to‑cylinder pressure‑wave interference. The 043 was specifically designed to eliminate this. If you already have 043s installed, check if all injectors are properly torqued and that the return lines are not crimped (which alters the damping volume). Also verify that the ECU's "injection timing adaptation" has been reset; otherwise, the old corrections may fight the new injector's characteristics.

Q5: Does the 043 require a specific break‑in procedure?
The needle and seat are pre‑lapped at the factory, but the armature and spring settle during the first 50 hot cycles. To expedite this, perform 3 full‑load accelerations from 1,000 to 1,900 rpm after installation, then let the engine idle for 10 minutes. This helps the moving parts bed in without causing wear. After that, reset the adaptives and drive normally.

Q6: Can I test the 043's damping effect using a simple pressure gauge on the rail?
A standard mechanical gauge is too slow to capture pressure waves. Use a high‑frequency piezoelectric pressure transducer (sampling at least 10 kHz). Compare the ripple amplitude at 1,800 bar with the engine under load; if the peak‑to‑peak ripple exceeds 15 bar, either the injectors are not the 043 type or the damping feature is compromised. This is the most reliable field test.
