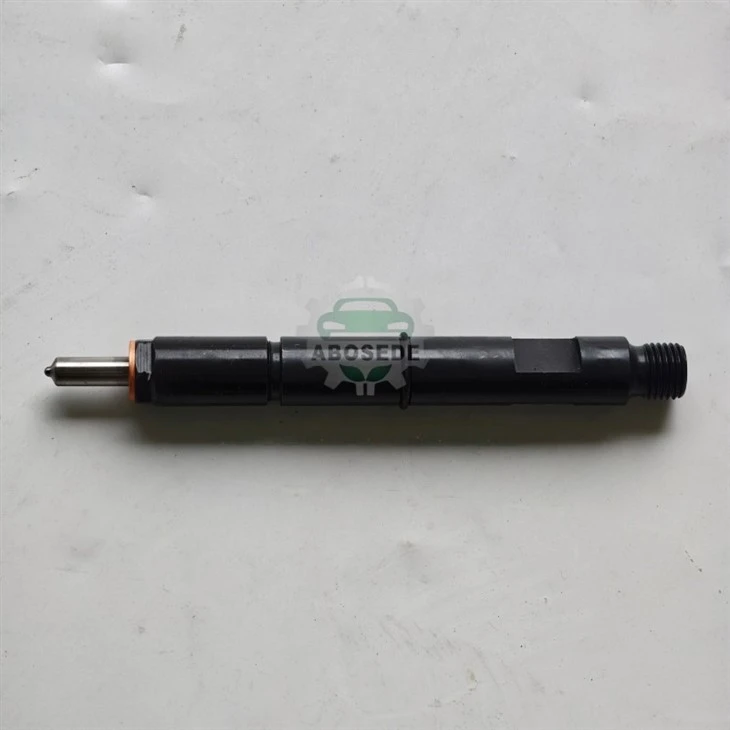

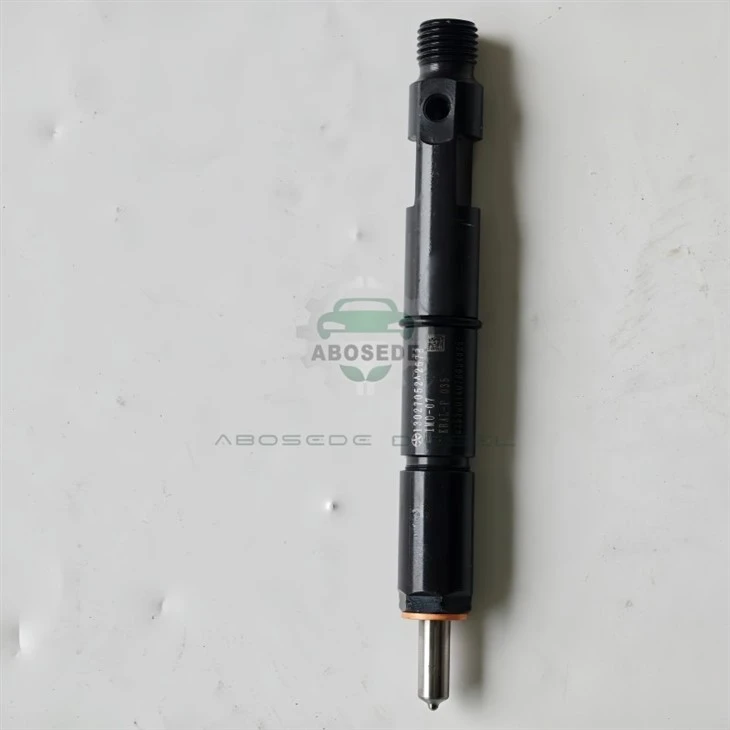

13027052 / KBAL-P035 Diesel Injector Assembly For WP6 & 226B Platforms

This 13027052 / KBAL-P035 injector assembly serves as a direct-fit fuel delivery solution for workshops servicing Weichai WP6, Deutz 226B, and Yunnei 4102 diesel platforms . Built around the P-series nozzle architecture, it addresses the chronic atomization degradation and hot-restart stumble that plague high-hour engines still running on legacy calibration maps. For parts jobbers stocking rotating inventory, this unit bridges the gap between low-cost unverified imports and dealer-only pricing, delivering measurable hydraulic stability without requiring ECU reflash beyond standard IMA coding.

This injector lands squarely in the sweet spot for independent shops handling mixed fleets of Chinese-origin and licensed Deutz-derived diesels. Beyond the headline WP6 and 226B applications, it cross-references to Yunnei 4102, BAW 1044, and Yuejin 1041 chassis that dominate light commercial and agricultural segments in export markets . The panel-mount retention design simplifies valve cover access on marine and stationary generator configurations where conventional clamp-style injectors demand partial head disassembly. Counter staff should verify the nozzle marking before dispatch-DLLA150P201 and DSLA154P1028 variants share the same body but differ in spray geometry, and mismatched installation triggers immediate idle roughness complaints.

The micron-level clearances inside the KBAL-P035 control chamber tolerate zero shortcuts during installation. Every unit requires fresh copper washer seating and a torque wrench applied to the specified panel nut value-reused washers and impact guns guarantee combustion gas blow-by and carbon tracking within 500 operating hours. The return line circuit deserves equal attention: restricted backpressure prevents the needle control piston from fully seating, producing a persistent hot idle misfire that technicians often misdiagnose as an ECU fault. After fitting, populate the IMA code into the engine controller; skipping this step leaves the pilot injection quantity uncorrected and generates cylinder balance deviation codes that return the vehicle to the bay .

For a WP6 or 226B owner facing a P0251 or P0200 fault code, the diagnostic fork is brutal: a full injector set replacement from the dealer channel often exceeds the residual value of older equipment, yet continuing with a worn nozzle accelerates cylinder wash and dilutes the crankcase oil with diesel. The KBAL-P035 aftermarket assembly resolves this deadlock by restoring the spray pattern and opening pressure characteristics of the original unit at a fraction of OEM cost. Shops that stock this number report successful resolution of cold-start white smoke and load-dependent power fade without touching the high-pressure pump-provided the fuel filter and water separator are renewed concurrently. The practical takeaway for parts managers: this injector moves fastest when bundled with a copper washer kit and a return line O-ring, because no technician wants to halt a repair halfway through for a two-dollar seal.

Q1: Can I install the KBAL-P035 without programming the ECU?
A: Physical installation completes the mechanical side, but the IMA coding step is non-negotiable for proper pilot injection delivery. Without it, the engine may run, but expect surge, idle hunt, and eventual DTC storage.

Q2: What distinguishes this unit from cheaper DLLA150P201 injectors on the market?
A: The control piston and valve seat undergo hardened lapping to withstand 1800-bar rail pressure spikes. Budget alternatives often skip this finishing step, resulting in needle bounce and premature return flow escalation.

Q3: Is this injector compatible with marine generator applications using the 226B?
A: Yes, provided the cooling circuit maintains fuel temperature below the vapor lock threshold. Marine WP6 and 226B installations frequently suffer from fuel overheating; verify the heat exchanger before blaming the injector.

Q4: How should I handle cores and warranty claims?
A: Retain the injector body and nozzle nut intact-do not disassemble the unit. Distributors require the solenoid resistance reading and the return flow volume measured on a test bench before approving any claim.

Q5: What is the realistic service interval for this assembly in agricultural duty?
A: Expect 2,500 to 3,500 hours on clean, filtered fuel. Dust ingress through the fuel cap and water accumulation in the separator are the two variables that cut that figure in half.

Q6: Do you supply the copper washer and return line seal separately?
A: Yes, the KBAL-P035-1 washer is available as a standalone SKU. Bundle it-reusing a crushed copper washer is the leading cause of compression leak past the injector seat.
