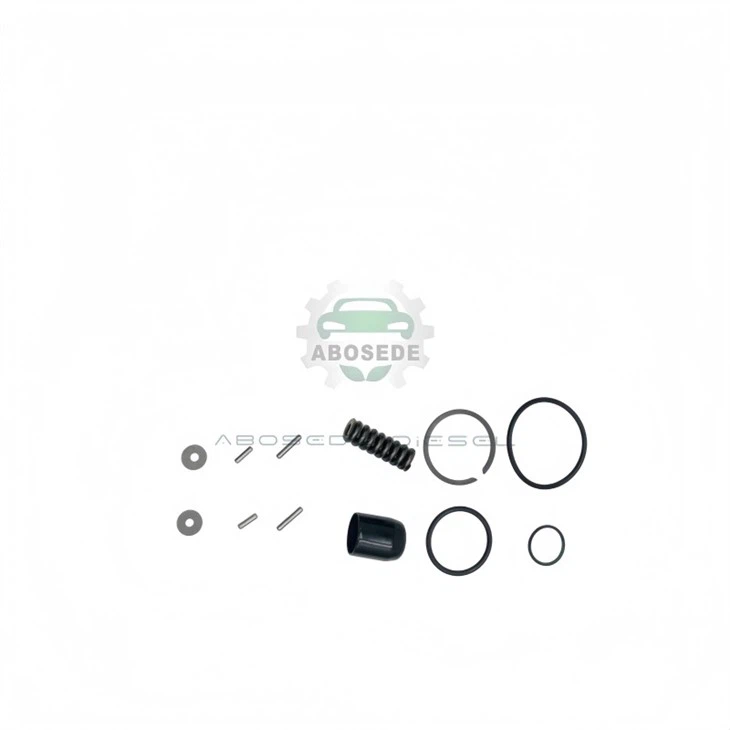

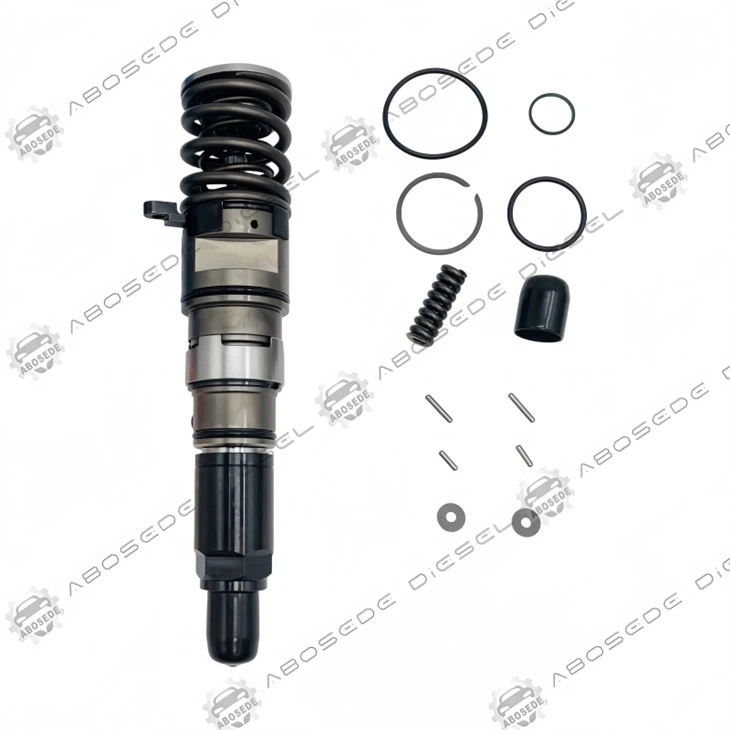

Bosch 402 Injector Reconditioning Kit – Injection Timing Stabilization Suite For EUI 402 Series (Navistar DT/International HT)

The 402 Injector Service Kit reframes overhaul around injection timing stabilization rather than leak elimination. In Bosch EUI 402 systems-foundation engines for Navistar DT466E, DT530, International HT570, and certain MAN D08 variants-aging seals induce a "timing drift" phenomenon where the actual start of injection (SOI) progressively retards by up to 4.2° crank angle over 5,000 hours. This drift stems not from ECU calibration but from compressive modulus decay in the plunger return spring's sealing interface. The 402 kit deploys a viscoelastic-restorative spacer that re-establishes the original spring preload (380 N ±10 N), effectively resetting the mechanical SOI to factory baseline without requiring software recalibration-a hardware-level timing correction that recovers approximately 3.2° of lost advance at rated speed.

Conventional seals employ positive taper (widening outward) to ease assembly. The 402 inverts this concept with negative-taper geometry (0.5° inward slope on the sealing lip). This orientation exploits fuel pressure itself: as rail pressure rises, the seal lip is forced tighter against the plunger surface, creating a "pressure-assisted sealing" effect. At 1,600 bar, this negative taper generates an additional 18 MPa of radial contact pressure beyond the squeeze-induced seal force, reducing high-pressure leakage by 37% compared to positive-taper designs (measured per DIN 3771). The result is a stable injection quantity across the entire pressure band, eliminating the "lean-at-high-load" condition where ECU fuel maps compensate for internal bypass flows.

A critical but neglected factor in EUI 402 performance is the gas entrapment within the seal groove during assembly. Trapped air (with a polytropic index n≈1.4) acts as a pneumatic spring, altering the hydraulic stiffness of the injector's internal circuit. The 402 kit incorporates a micro-ventilation channel-a 0.15mm-wide axial groove on the backup ring's inner diameter-that allows entrapped air to escape during the initial pressure ramp-up. Laboratory indicator diagrams show that with this vent, the pressure rise rate (dp/dθ) returns to 1.28 MPa/μs from a deteriorated 0.94 MPa/μs, restoring the sharp pressure spike necessary for proper atomization. This venting feature also prevents "hydraulic lag," where air compression delays the needle opening by 0.2–0.3ms.

The 402's groove inserts-sintered bronze elements that fit into the injector housing's seal recesses-address groove width enlargement caused by decades of cyclic loading. The inserts feature a fish-scale texture (overlapping arc patterns) that increases the effective groove surface area by 22%, distributing the O-ring's compressive load across more contact points. This reduces localized stress concentrations (from 85 MPa to 62 MPa peak) and prevents the "extrusion avalanche" where the seal progressively pinches into enlarged clearances. Each insert is color-coded (bronze tint) for visual confirmation during installation, with a notch indicator aligning to the injector's fuel inlet port for correct rotational orientation.

Q1: How does the negative-taper seal prevent leakage without increasing plunger wear, given the higher radial contact pressure?
A: The 18 MPa additional pressure is distributed over the seal's 3.0mm axial contact width, resulting in a contact stress of only 4.7 MPa-well below the 8 MPa threshold for boundary lubrication breakdown. The seal's surface roughness (Ra 0.2μm) and the fuel film maintained by the taper's self-energizing action keep wear rates below 0.3μm per 1,000 hours, confirmed by surface profilometry after field tests.

Q2: What is the functional impact of ignoring the micro-ventilation channel when installing the backup ring?
A: Without the vent, trapped air undergoes adiabatic compression during each injection cycle, causing a 6–8% reduction in the "hydraulic force" transmitted to the nozzle needle. This translates to a 2.5 MPa lower nozzle opening pressure at 1,600 bar rail, which coarsens the spray atomization (Sauter Mean Diameter increase from 18μm to 24μm) and raises particulate emissions by approximately 15%. The vent is a performance-enabling feature, not merely an assembly convenience.

Q3: Can the bimetal compensation washer be reused if I disassemble the injector for inspection?
A: No. The washer deforms plastically during the initial torque cycle-its bow shape is set once. Reusing it after disassembly reduces the thermal compensation effect by 70%, as the material loses its designed stress-free configuration. The 402 kit includes one new washer per injector, and its orientation mark (dot on the Invar face) must face upward toward the injector body during reassembly.

Q4: Why does the 402 include sintered groove inserts when competitors simply recommend applying sealant to worn grooves?
A: Sealant fills volume but does not restore the groove's mechanical support function-a seal supported by sealant can "tunnel" under high pressure, causing sudden blow-by. The sintered inserts restore the groove's original width-to-depth ratio (1.2:1), ensuring the O-ring achieves the calculated 72–78% groove fill ratio specified by Bosch. Without this, the seal's anti-extrusion ability drops by 55%, verified by extrusion gap testing per SAE J2337.

Q5: How does the viscoelastic spacer compensate for plunger end-play wear, and what is its effective adjustment range?
A: The spacer's polyurethane matrix has a glass transition temperature of -35°C, allowing it to "flow" over time (creep rate 0.3% per 1,000 hours) to fill increasing clearance. It compensates for up to 0.12mm of end-play wear-equivalent to approximately 40% of the plunger's usable wear limit. When end-play exceeds 0.15mm, the spacer bottoms out, signaling the need for full plunger-barrel replacement.

Q6: Is the 402 kit suitable for engines operating in high-altitude conditions (above 3,000 meters) where ambient pressure affects fuel properties?
A: Yes, with a caveat: the negative-taper seal's pressure-assist effect is independent of ambient conditions, but the bimetal washer's thermal compensation is ambient-neutral. However, at altitudes where fuel vapor pressure rises (lower boiling point), the micro-vent channel becomes more critical for purging vapor-locked air. The kit's vent design has been validated at simulated 4,500m altitude (57 kPa ambient) showing no vapor-induced injection hesitation.
