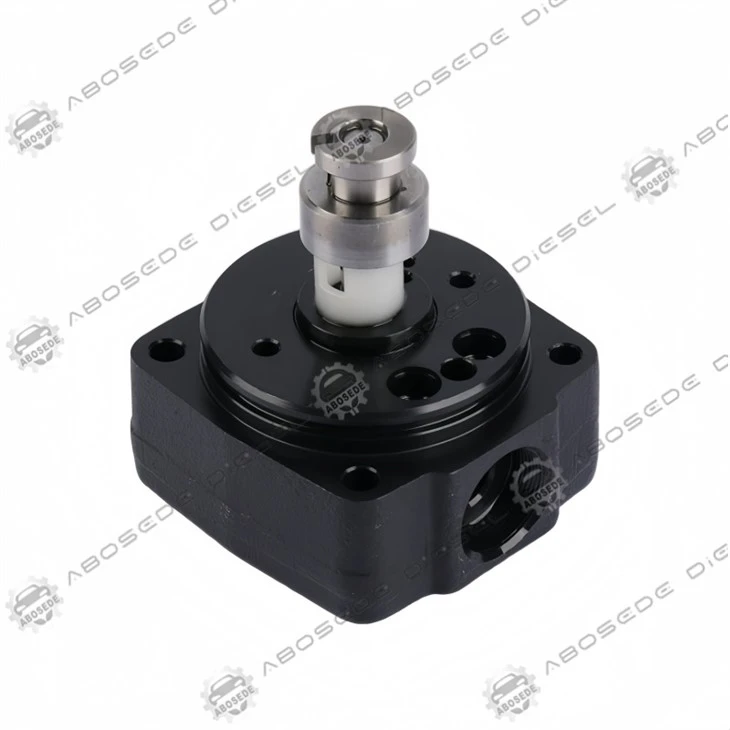

096400-1030 VE Pump Head For Mitsubishi 4D6 — A Symptom-to-Subsystem Map Before You Pull The Pump

Hard starting, a hot-idle shudder, or a flat spot under load on a Mitsubishi 4D6 does not automatically indict the hydraulic head. In practice, three or four subsystems can produce the same complaint, and pulling the pump before mapping the symptom wastes bench hours and risks introducing a new fault. This article treats diagnosis as a topology problem: map the symptom to the subsystem that owns it, then decide whether the 096400-1030 VE Pump Head is the correct intervention. The method mirrors how common-rail technicians use a fault tree before touching an injector - locate first, replace second.

Cold hard-start with white smoke usually belongs to glow control, compression, or air ingress before it belongs to the head. Hot-idle shudder that disappears above 1,200 rpm often traces to internal leakage across the rotor-to-bore clearance. A flat spot under load with stable idle points toward delivery balance or a restricted transfer passage. Fuel dilution in the sump rarely involves the head at all; it usually lives in the injector or the return circuit. Write the complaint on a card, list every subsystem that can cause it, and eliminate from cheapest to most expensive. The head earns replacement only after the other owners are cleared - a discipline common-rail shops already apply to rail-pressure and injector-correction faults.

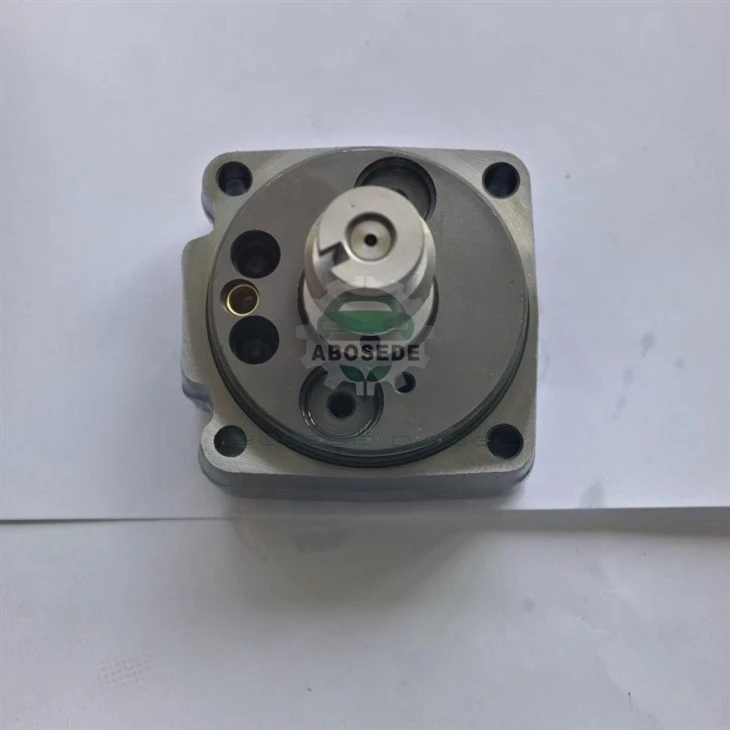

A VE hydraulic head is a stack of fits: rotor diameter to bore, plunger to barrel, delivery valve seat to housing, and port alignment to distributor window. Each fit carries a tolerance band, and the bands accumulate. Two heads marked with the same 096400-1030 VE Pump Head number can sit at opposite ends of the stack and produce different hot-idle behavior. This is not a defect; it is the nature of precision assembly. The practical consequence is that bench data matters more than the label. Record leakage and delivery values for the unit you receive, because those values - not the part number alone - predict how it will behave on the 4D6.

Internal leakage is not a vague condition; it is a measurable flow. Define three entries: leakage at cold start, leakage at operating temperature, and leakage after a hot soak. Compare each against the pump manufacturer's band. If hot leakage rises while cold leakage holds, the rotor-to-bore clearance is opening under thermal expansion - a classic signature of a worn Mitsubishi 4D6 Hydraulic Head. If both rise, suspect scoring from particle ingress. Keeping this ledger on the job card turns a subjective "it feels tired" into a number the next technician can act on. Common-rail leak-off testing follows the same accounting logic, just at higher pressure and finer resolution.

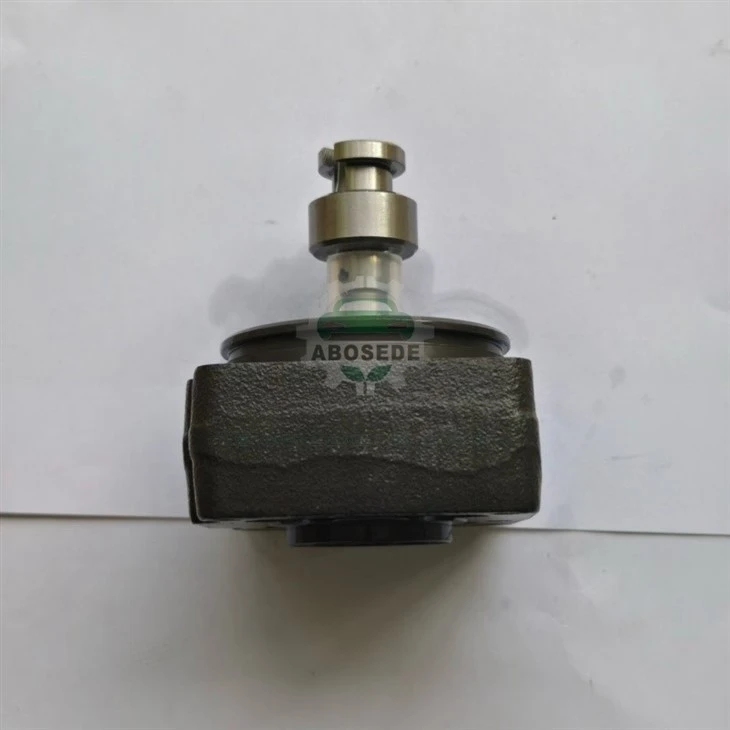

The 096400 family shares a prefix across many variants. Trailing digits separate rotor geometry, port arrangement, and delivery characteristics that are not visible from the outside. A supplier quoting only the prefix, without asking for the pump plate and rotor code, is guessing. Before ordering the 096400-1030 Distributor Head, photograph the nameplate, the port layout, and the drive end. Ask for confirmation against the plate number, not against the engine code alone. In common-rail sourcing, the equivalent error is buying an injector by engine family and ignoring the correction code - it fits, it runs, and it is wrong.

Q1 - My 4D6 starts cold but shudders hot. Should I replace the head first?
No. Clear glow, compression, and air ingress first. A hot-only shudder that survives those checks points to internal leakage and justifies a bench test before replacement.

Q2 - Can two heads with the same number give different idle quality?
Yes. Tolerance stack-up means individual units sit at different points within the band. Bench values, not the label, predict behavior.

Q3 - How do I confirm the rotor code if the stamping is worn?
Clean the surface, use magnification, and photograph it before assembly. If it stays unreadable, ask the supplier to verify against the pump plate.

Q4 - Is a flow bench required, or can I rely on road test?
A road test gives a verdict, not a baseline. A bench result gives numbers you can compare on the next visit.

Q5 - What is the most common sourcing error for this part?
Ordering by engine code alone and ignoring the pump plate and rotor code. It is also the most expensive.

Q6 - How should the head be stored if the install is delayed?
Sealed, dry, rust-protected. Fit the seal kit only at assembly, since pre-fitted seals harden in storage.
