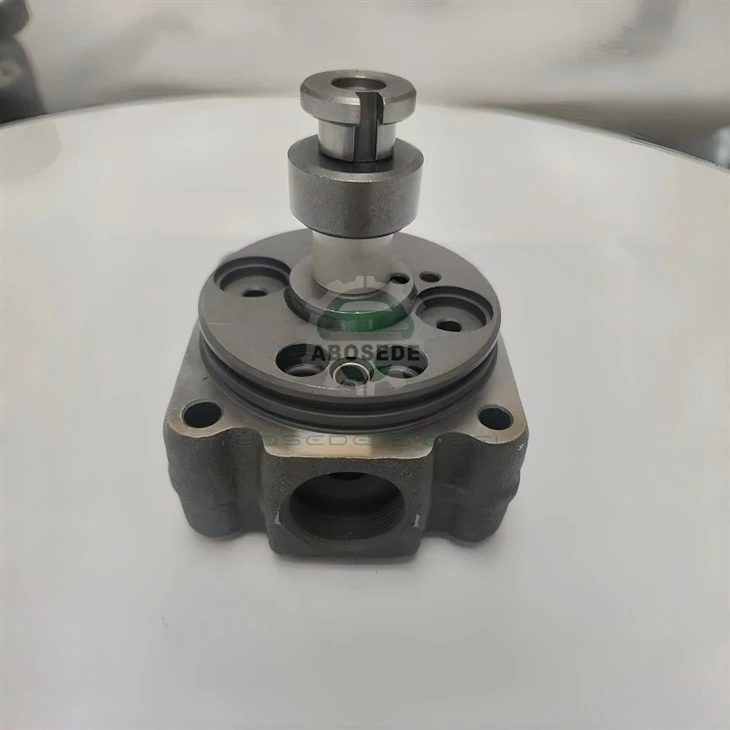

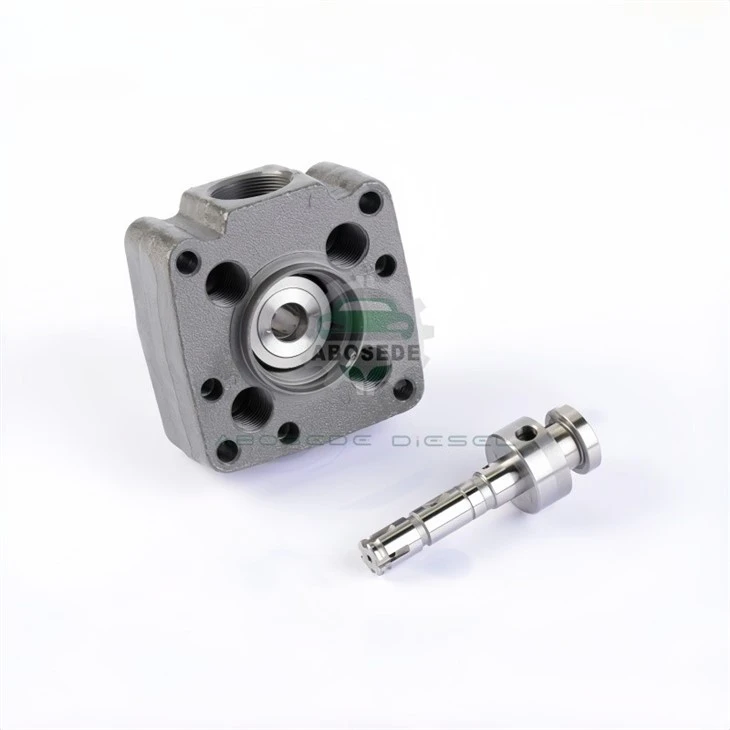

096400-0143 VE Pump Head For Isuzu 1.5T Forklift 4FE1 – Diesel Injection Hydraulic Head Assembly

A 4FE1 forklift that develops uneven delivery, hot-start hesitation, or load-dependent power loss often needs a hydraulic-head-level repair rather than a superficial pump adjustment. 096400-0143 is a VE rotary distributor pump head for the Isuzu 1.5-ton forklift with the 4FE1 diesel engine. It is not a common-rail component. In workshops that also service common-rail diesel, it should still be handled with common-rail-level cleanliness, torque discipline, and test-bench verification. The selection logic below focuses on fitment boundaries, hydraulic priorities, installation validation, and contamination control.

Confirmed application: Isuzu 1.5-ton forklift with 4FE1 diesel engine. Part number: 096400-0143. Pump family: VE rotary distributor. Do not select by forklift tonnage alone. Match the pump nameplate, plunger size, delivery valve layout, control lever position, and port orientation. The same engine code can carry different pump variants, so nameplate and port photos are more reliable than a generic model list. Confirm whether the supply scope includes seals, delivery valves, or control components before ordering.

Part number: 096400-0143
Product type: VE pump head / hydraulic head assembly
Application: Isuzu 1.5T forklift
Engine: 4FE1 diesel
Pump family: VE rotary distributor
Key checks: plunger fit, sealing faces, delivery valve seats, control sleeve movement, port alignment
Verification: test-bench delivery and leak check recommended
Selection data: pump number, engine code, old-head photos, plunger marking, delivery valve arrangement

VE head performance is decided by hydraulic precision, not external resemblance. ① Plunger-to-head clearance affects metering stability and internal leakage. ② Delivery valve sealing influences residual pressure and restart behaviour. ③ Control sleeve freedom affects governor response. ④ Sealing-face flatness and port alignment affect pressure retention and installation fit. A head that bolts on but fails the bench test is not a completed repair. These checks also matter in common-rail-adjacent workshops, where dimensional consistency and contamination control are already treated as non-negotiable.

Use a clean bench, filtered test fluid, dedicated torque tools, and a traceable record. Replace fuel filters and flush contaminated lines before installation. Check return restrictions. Torque to the pump manufacturer's sequence. Run delivery, leak, and governor response checks on a test bench. Record the pump number, head part number, and test result. Common-rail shops already know that particle contamination and uncontrolled torque create repeat failures; the same rule applies to this VE head. Do not apply common-rail high-pressure assumptions to a VE rotary pump.

Does 096400-0143 fit every Isuzu 1.5T 4FE1 forklift?
Not automatically. Confirm the pump nameplate, plunger size, delivery valve layout, and port orientation before ordering.

Is this a common-rail pump head?
No. It is a VE rotary distributor pump head. It is often serviced in shops that also repair common-rail diesel, but the hydraulic principles and test methods are different.

What symptoms point to the pump head rather than injectors?
Check for unstable delivery, hard restart, power loss, and internal leakage on the pump bench. Confirm the injection system type first; do not apply common-rail injector diagnostics to a VE-equipped machine.

Can it be installed without bench calibration?
Not recommended. Bench testing verifies delivery, sealing, and governor response before the unit returns to the forklift.

What data should be recorded before purchase?
Pump number, engine code 4FE1, old head photos, port orientation, plunger marking, and delivery valve arrangement.

What causes repeat VE head failure?
Contaminated fuel, restricted return lines, incorrect timing, reused seals, blocked filters, and uncontrolled installation torque.
